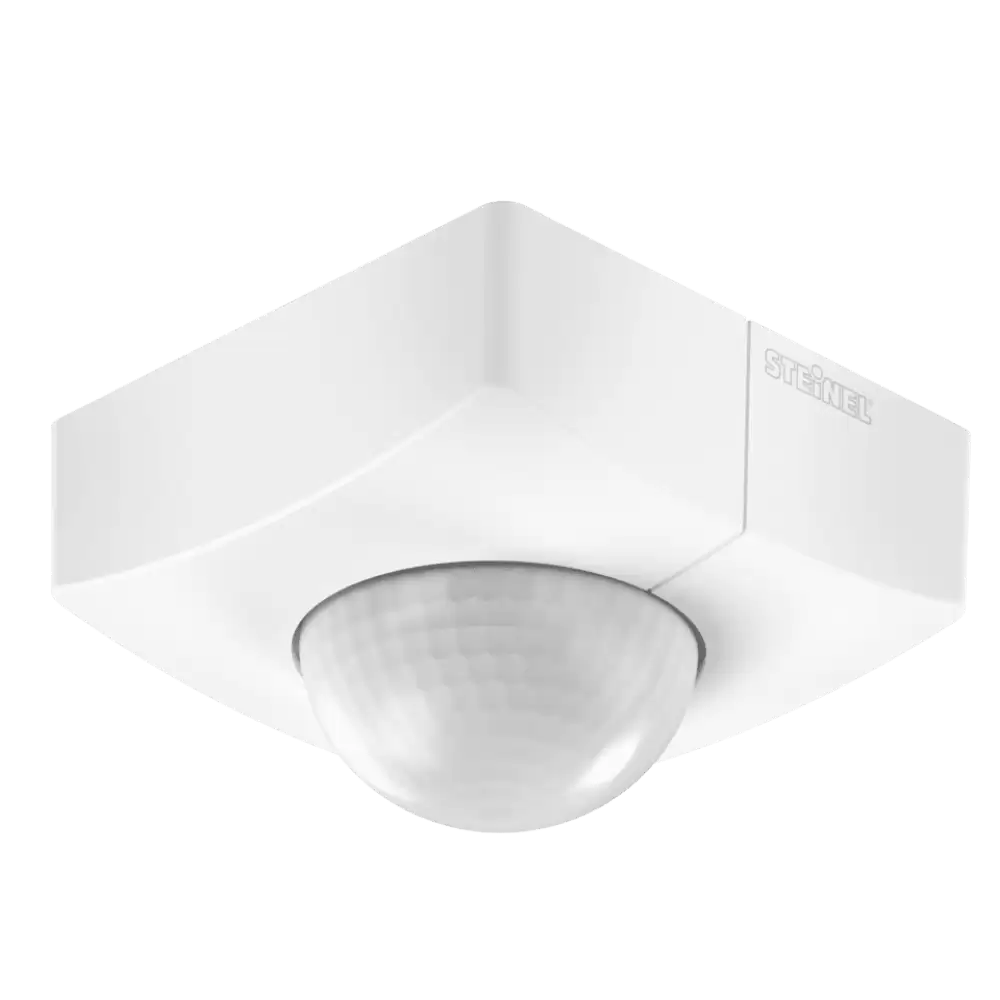

Steinel Infrared Motion Sensor IS 3360-E COM1 AP 4007841010478 WHITE
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : Passive Infrared Passive Infrared
MAIN POWER SUPPLY : 220 – 240 V / 50 – 60 Hz
MOUNTING HEIGHT : 2.5 - 4.00 m
DETECTION ANGLE : 360°
REACH : 20 m
OUTPUT : 2000W
HS Code :
Lead Time : 3-4 WEEKS
VIEW MORE PRODUCT DETAILS
Related Products
Motion Detector IS 3360
Higher, further, faster. Infrared motion detector IS 3360 for indoors and out, ideal for watching over high spaces and large areas, such as multi-storey and underground car parks, installation height up to 4 m, 360° angle of coverage, reach 20 m max. (tangential), large terminal compartment for easy installation, heavy-duty relay for high switching capacity. Available either in round or square surface-mounted and concealed version.

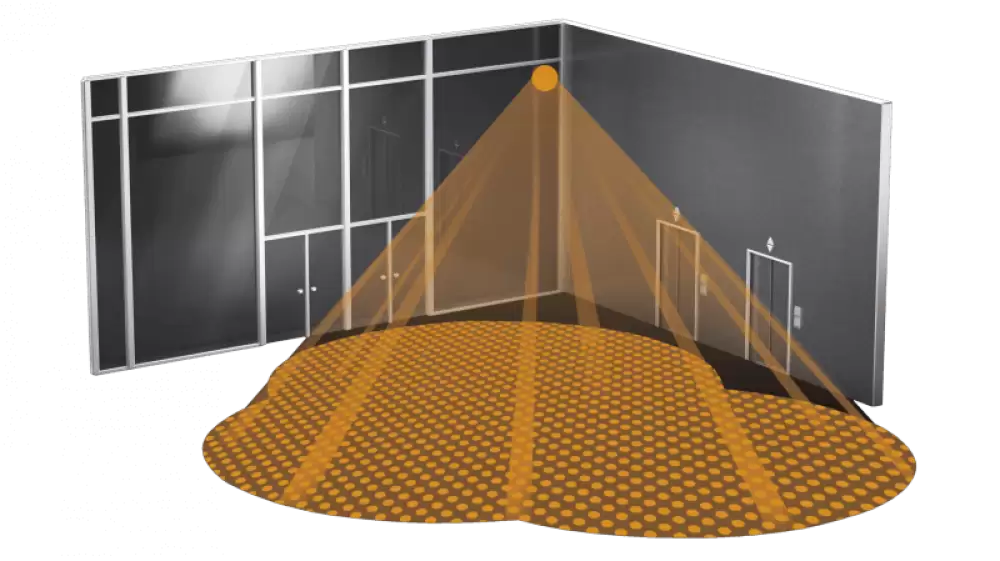

Large spaces, multi-storey car parks and production buildings with ceiling heights of up to 4 m rarely provide installation surfaces every metre. These environments call for motion detectors with a long reach. Like the IS 3360. It detects any tangential movement within an all-round radius of 20 metres. Even installed at heights of up to 4 metres. In short: one IS 3360 covers an area of more than 1000 m²! STEINEL Infrared technology that keeps its promises.
Specifications
| Brand | STEINEL |
| Model Number | IS 3360-E COM1 AP WHITE |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | 220 – 240 V / 50 – 60 Hz |
| MOUNTING HEIGHT | 2.5 - 4.00 m |
| DETECTION ANGLE | 360° |
| REACH | 20 m |
| OUTPUT | 2000W |
| TIME SETTING | 5 s - 15 Min |
| VERSION | COM 1 |
| TYPE | FLUSH |
| IP RATING | IP54 |
| PRODUCT WARRANTY | 5 Years |
| Part No. EAN | 4007841010478 |
| Lead Time | 3-4 WEEKS |
Passive Infrared |
|
| Warranty | 5 year warranty |
