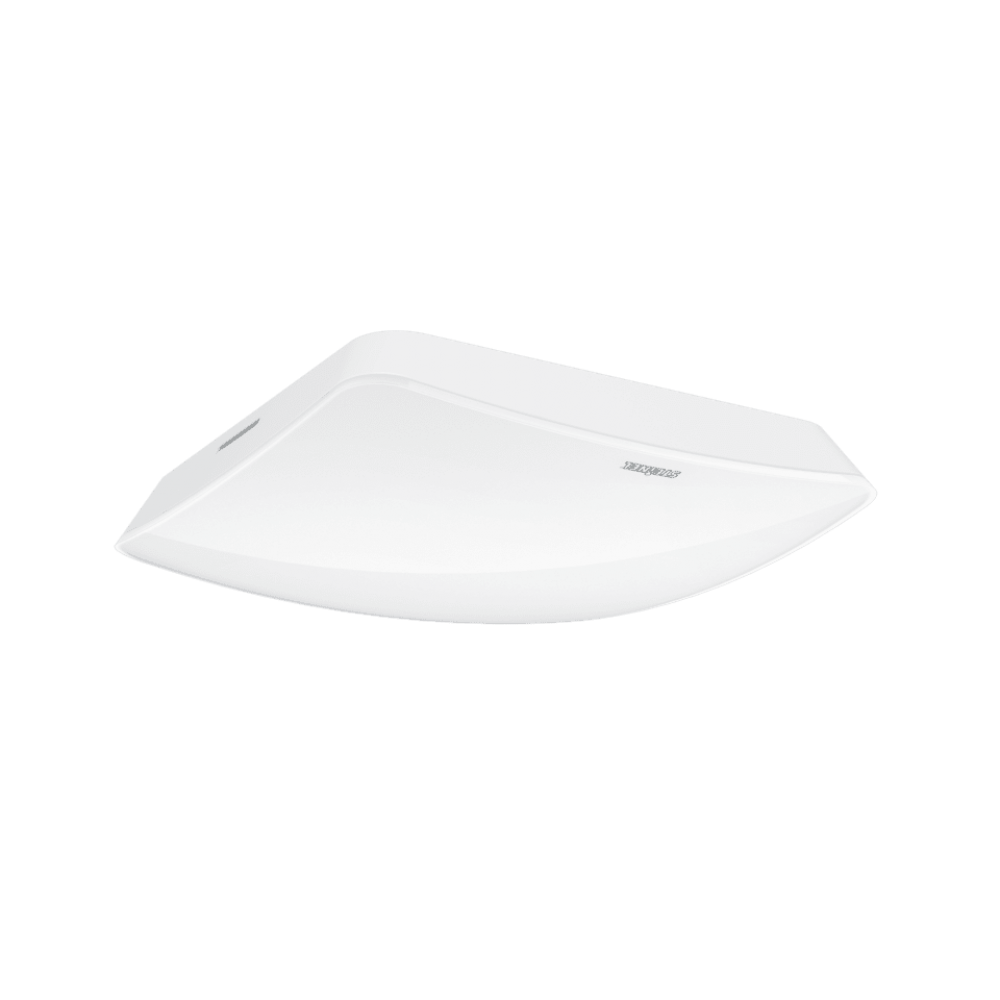

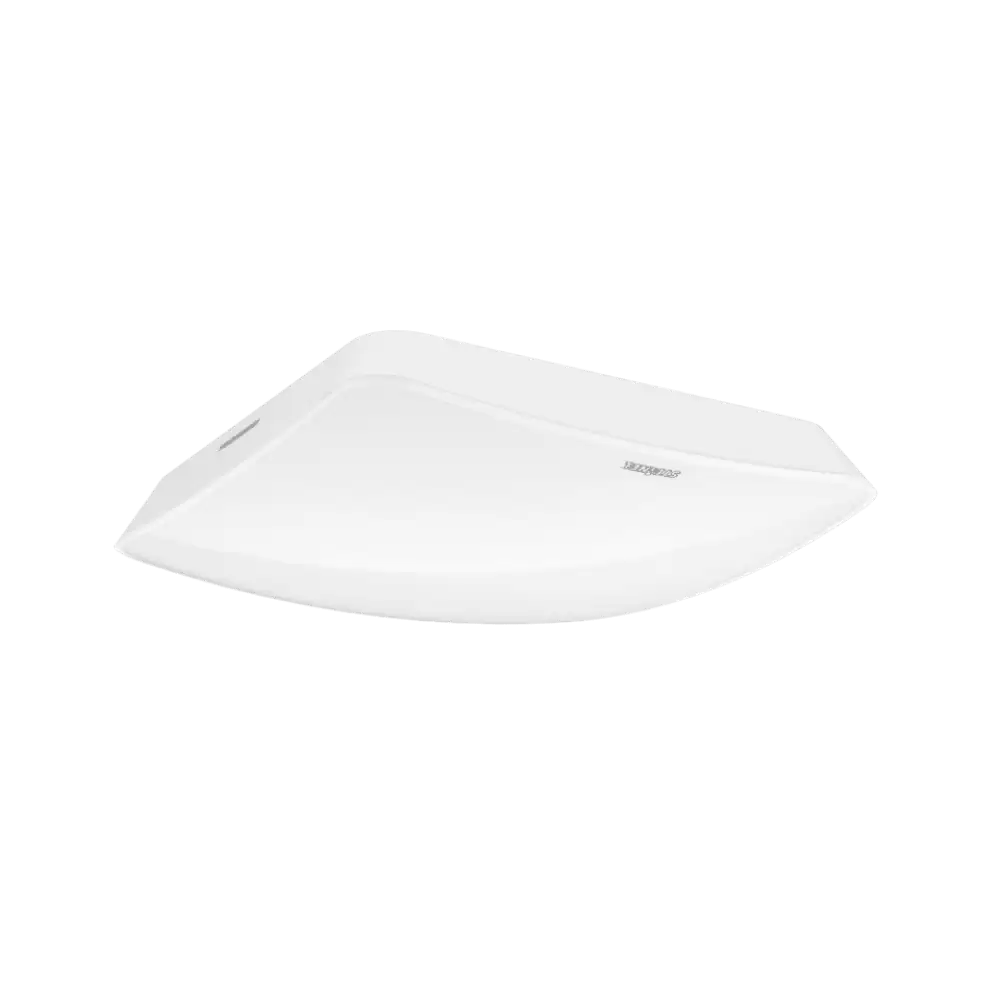

Steinel Presence Detector TRUE PRESENCE KNX UP 4007841056339
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : PRESENCE DETECTOR
SENSOR TECHNOLOGY : High Frequency
MAIN POWER SUPPLY : KNX BUS
APPLICATIONS, AREA : classroom, lecture hall, one-person office, open-plan office, high-bay warehouse, production facilities, conference room / meeting room, hotel room, care room, duty room, recreation room, din
MOUNTING HEIGHT : 2 – 12 m
DETECTION ANGLE : 360°
HS Code :
Lead Time : 2 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
True Presence - KNX - Concealed wiring
The world's first true presence detector! No unnecessary stay-ON times any more – no unnecessary electricity costs. Precision high-frequency measurement of the surrounding area provides 100 per-cent reliable detection. The True Presence detector reliably identifies whether persons are present or absent over an area of 64 m² – on the basis of the body's micro movements as well as human vital functions, such as breathing in and out, or shoulder movement. The new standard in building automation.
Specifications
| Brand | STEINEL |
| Model Number | TRUE PRESENCE KNX UP 056339 |
| SENSOR TYPE | PRESENCE DETECTOR |
| SENSOR TECHNOLOGY | High Frequency |
| MAIN POWER SUPPLY | KNX BUS |
| APPLICATIONS, AREA | classroom, lecture hall, one-person office, open-plan office, high-bay warehouse, production facilities, conference room / meeting room, hotel room, care room, duty room, recreation room, din |
| MOUNTING HEIGHT | 2 – 12 m |
| DETECTION ANGLE | 360° |
| HF SYSTEM | 7.2 GHz |
| REACH | Radial Ø 15 m (177 m²), Tangential Ø 15 m (177 m²), Presence Ø 15 m (177 m²), True Presence reach Ø 9 m (64 m²) |
| INSTALLATION | CEILING |
| VERSION | KNX - Concealed wiring |
| OTHER VERSION | KNX, DALI, LIVELINK, DIM, |
| IP RATING | IP20 |
| Part No. EAN | 4007841056339 |

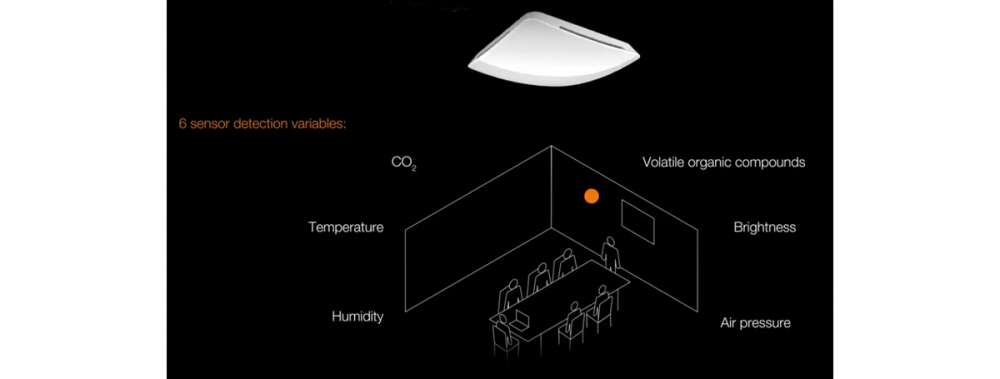

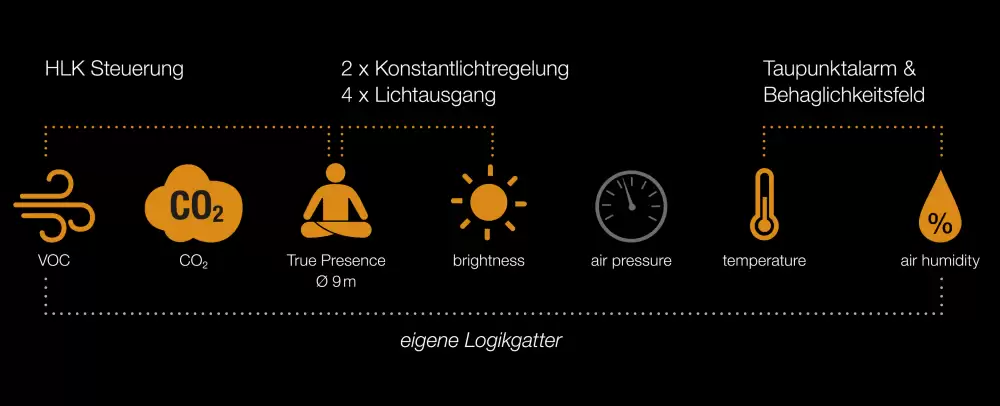

| KNX FUNCTION | Photo-cell controller, Basic light level function, Light level, HVAC output, Constant-lighting control, Light output 4x, Air pressure, Humidity output, Presence output, Day / night function, |
| Lead Time | 2 - 4 Weeks |
| Warranty | 5 year warranty |
