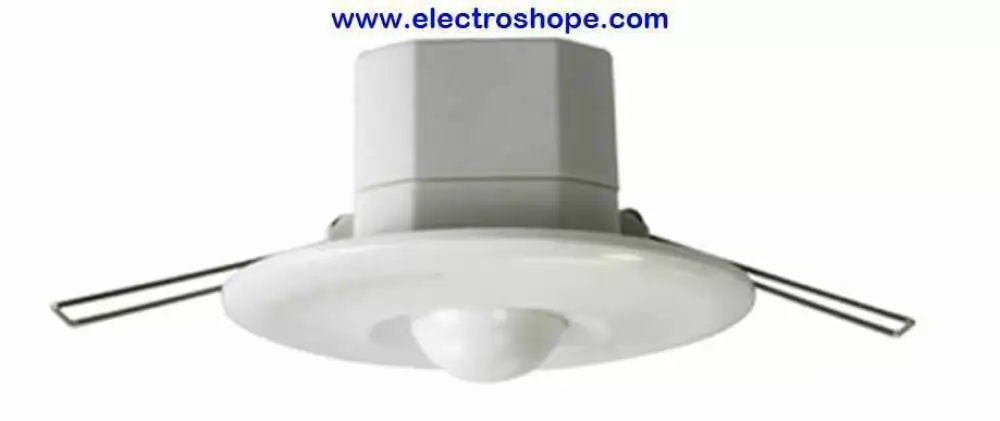

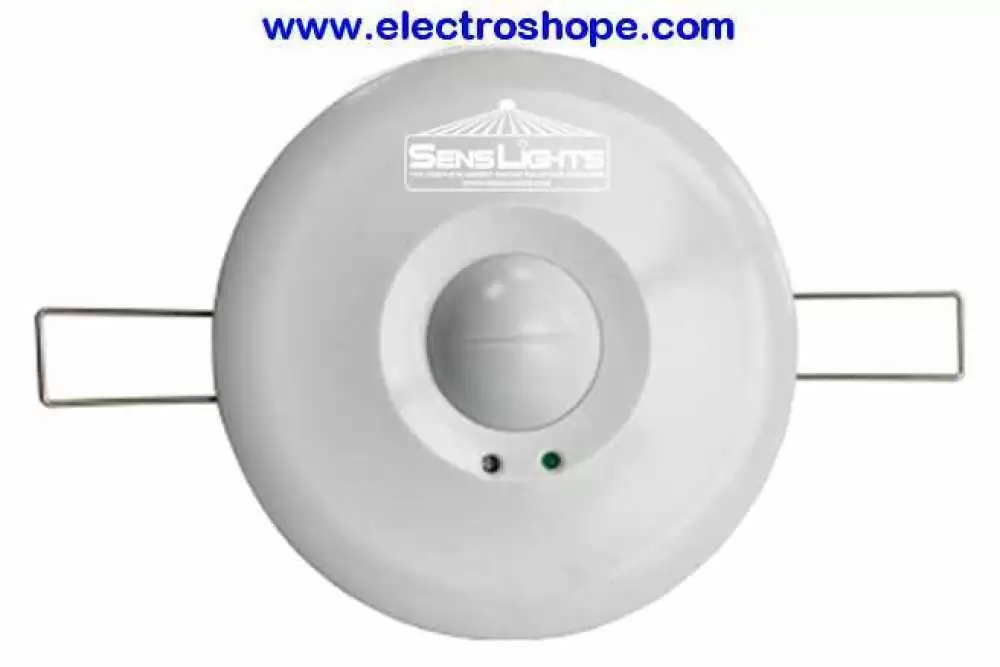

Senslights Occupancy Sensor High Frequency Ceiling Mounted SLL 1227J
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : MICROWAVE SENSOR
SENSOR TECHNOLOGY : High Frequency
MAIN POWER SUPPLY : 100 - 240V
APPLICATIONS, AREA : GARAGE, STAIR, BALCONY FENCE, GATE
MOUNTING HEIGHT : 2.8 m - 3.5 m
DETECTION ANGLE : 360°
HS Code :
Lead Time : 5-10 Days
VIEW MORE PRODUCT DETAILS
Microwave sensor SLL1227M
The sensor is an active motion detector, it emits high-frequency electro-magnetic wave(5.8GHz)and receives their echo. The sensor detects the change in echo from even the slightest movement in its detection zone. A microprocessor then triggers the “switch light ON” command. Detection is possible through doors, panes of glass or thin walls.
Specifications
Power supply:220-240VAC
Power frequency:50/60Hz
Installation sit: Indoors, ceiling mounting
Transmission power:<10mW
HF system: 5.8GHz CW radar,ISM band

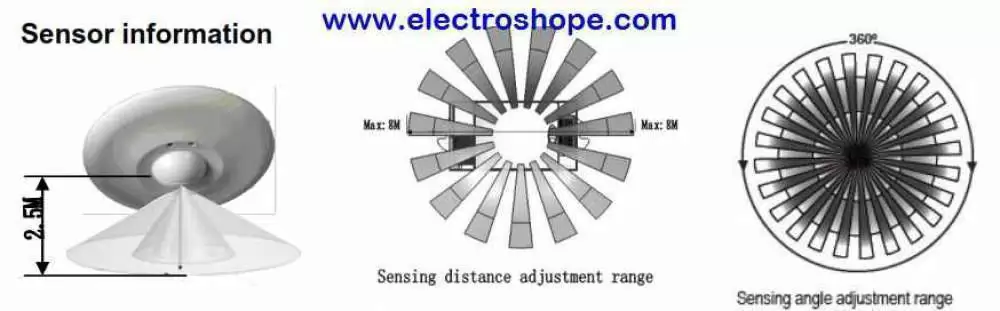

Detection angle:360°
reach:2-15m(radii.), adjustable
Rated load: 3000W
time setting:10sec to 30min
light control:10~500LUX,
Power consumption:approx.0.9W
Specifications
Brand | SENSLIGHTS |
Model Number | Senslights SLL 1227J |
SENSOR TYPE | MICROWAVE SENSOR |
SENSOR TECHNOLOGY | High Frequency |
MAIN POWER SUPPLY | 100 - 240V |
APPLICATIONS, AREA | GARAGE, STAIR, BALCONY FENCE, GATE |
MOUNTING HEIGHT | 2.8 m - 3.5 m |
DETECTION ANGLE | 360° |
OUTPUT | 3000W |
HF SYSTEM | 5.8 GHz |
REACH | 2m - 15 m |
INSTALLATION | Surface |
TIME SETTING | 10 s - 30 min |
Part No. EAN | SLL 1227J |
Lead Time | 5-10 Days |
Warranty | 1 year warranty |
