Steinel High-frequency motion detector HF 3360-E COM1 AP 4007841011734 WHITE
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : High Frequency
MAIN POWER SUPPLY : 220 – 240 V / 50 – 60 Hz
APPLICATIONS, AREA : function room / ancillary room, stairwell, WC / washroom, multi-storey / underground car park, Indoors
MOUNTING HEIGHT : 2.00 - 4.00m

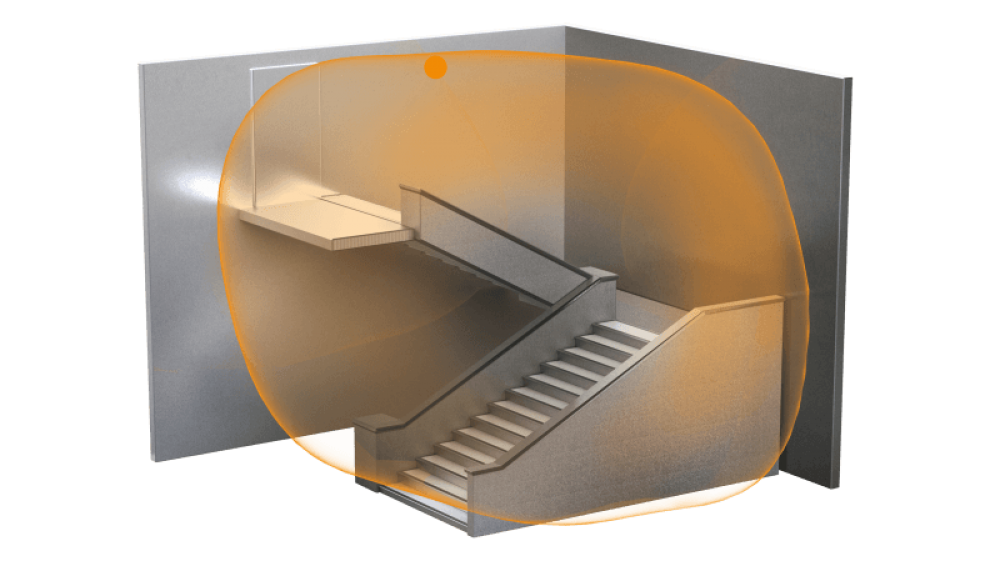

DETECTION ANGLE : 360°
REACH : Radial 8 m, Tangential 8 m
HS Code :
Lead Time : 2 - 4 Week
VIEW MORE PRODUCT DETAILS
Related Products
HF 3360
Perfection through and through. High-frequency motion detector HF 3360, ideal for basement corridors, stairwells, multi-storey car parks, installation height 2.8 m, 360° angle of coverage, reach 1 – 8 m (radial), detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls, heavy-duty relay for high switching capacity. Available either in round or square surface-mounted and concealed version.
It detects simply everything. Very fast and if required over 2 store's.
High-frequency technology is the perfect alternative in areas that can pose problems for temperature-based infrared sensors. This makes the HF 3360 the ideal solution if you want to automate lighting in winding basement corridors, stairwells and multi-storey car parks. It detects the smallest of movements reliably and precisely and ensures the perfect automatic lighting control - even in stairwells over two storeys high. The HF 3360 is also ideal for all entrance areas because light is switched ON as soon as the sensor detects the door opening. Available in surface-mounted and concealed installation versions, and naturally compatible with the standard interfaces.
Specifications
| Brand | STEINEL |
| Model Number | HF 3360-E COM1 AP WHITE |
| SENSOR TECHNOLOGY | High Frequency |
| MAIN POWER SUPPLY | 220 – 240 V / 50 – 60 Hz |
| APPLICATIONS, AREA | function room / ancillary room, stairwell, WC / washroom, multi-storey / underground car park, Indoors |
| MOUNTING HEIGHT | 2.00 - 4.00m |
| DETECTION ANGLE | 360° |
| REACH | Radial 8 m, Tangential 8 m |
| OUTPUT | 2000W |
| TIME SETTING | 5 s - 15 Min |
| VERSION | COM 1 |
| IP RATING | IP54 |
| PRODUCT WARRANTY | 5 Years |
| DETECTION | THROUGH GLASS, WOOD, AND STUD WALL |
| Part No. EAN | 4007841 011734 |
| COLOUR | RAL 9003 |
| Lead Time | 2 - 4 Week |
|
| |
| Warranty | 5 year warranty |
