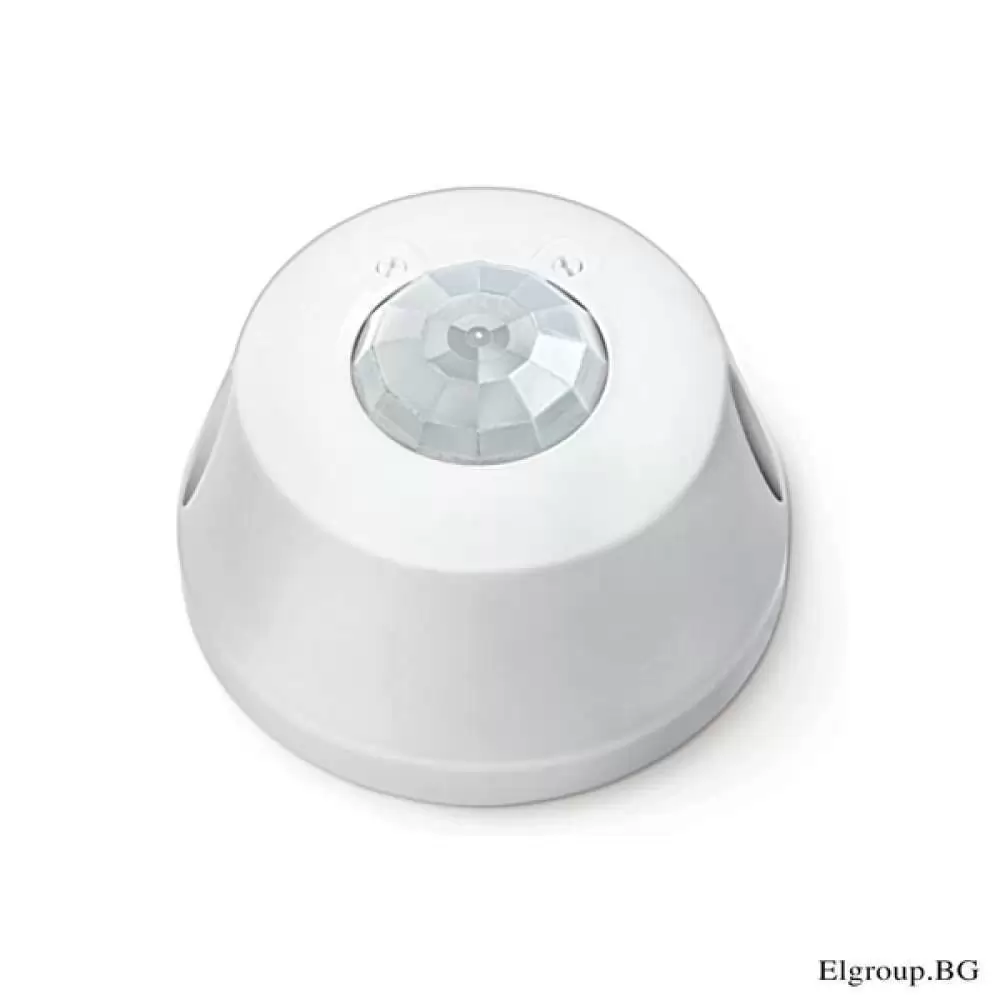

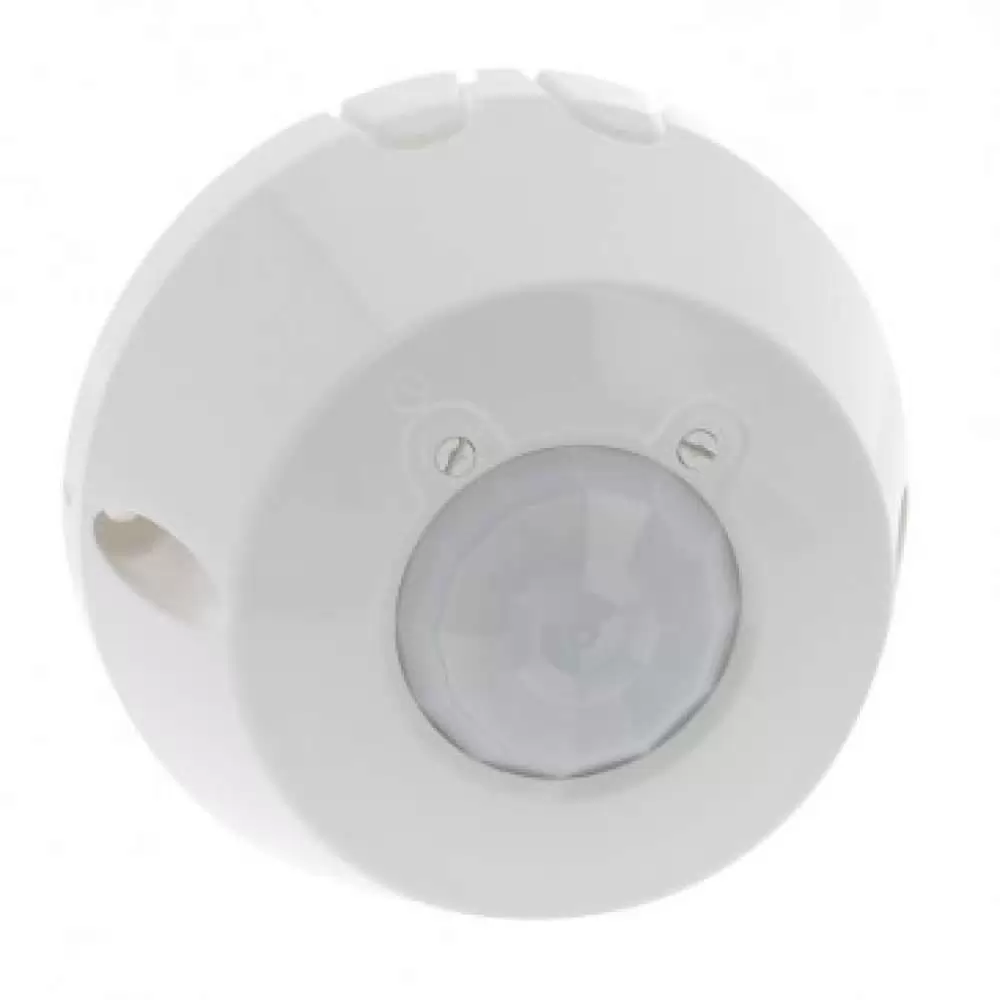

Legrand Infrared Red Motion Sensor 360 Surface 48948
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : MOTION DETECTOR
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : 220 – 240 V / 50 – 60 Hz
APPLICATIONS, AREA : PASSAGE AREAS
MOUNTING HEIGHT : 2.5 m
DETECTION ANGLE : 360°
HS Code :
Lead Time : 7-10 Days
VIEW MORE PRODUCT DETAILS
Legrand 360° motion sensor - IP20 - 8 m - Surface-mounting - PIR technology
- Motion detector with infrared detection designed for outdoor installation, using infrared motion detection technology and automatic control of the light source in the observable zone. Built in a suspended ceiling at a height of 2.5 meters, it detects objects at 360°, the control zone being 8 meters in diameter. It has 2 manually adjustable potentiometers - for illumination threshold and for time adjustment.
- Detection range - 360º 8m
- Working voltage - 220V
- Connection - 3-wire with neutral
- Ready mode consumption - 0.7 W
- Time adjustment - 10sec to 10min
- Light threshold adjustment - 10-1275Lux
- Temperature (working) - -20° C / + 45° C
- Color - white
- Degree of protection - IP20
Specifications
Brand | LEGRAND |
Model Number | Legrand 48948 |
SENSOR TYPE | MOTION DETECTOR |
SENSOR TECHNOLOGY | Passive Infrared |
MAIN POWER SUPPLY | 220 – 240 V / 50 – 60 Hz |
APPLICATIONS, AREA | PASSAGE AREAS |
MOUNTING HEIGHT | 2.5 m |
DETECTION ANGLE | 360° |
REACH | 8 m |
INSTALLATION | Surface |
TIME SETTING | 10 s - 10 m |
IP RATING | IP20 |
Part No. EAN | 48948 |
Lead Time | 7-10 Days |
Warranty | 1 year warranty |
