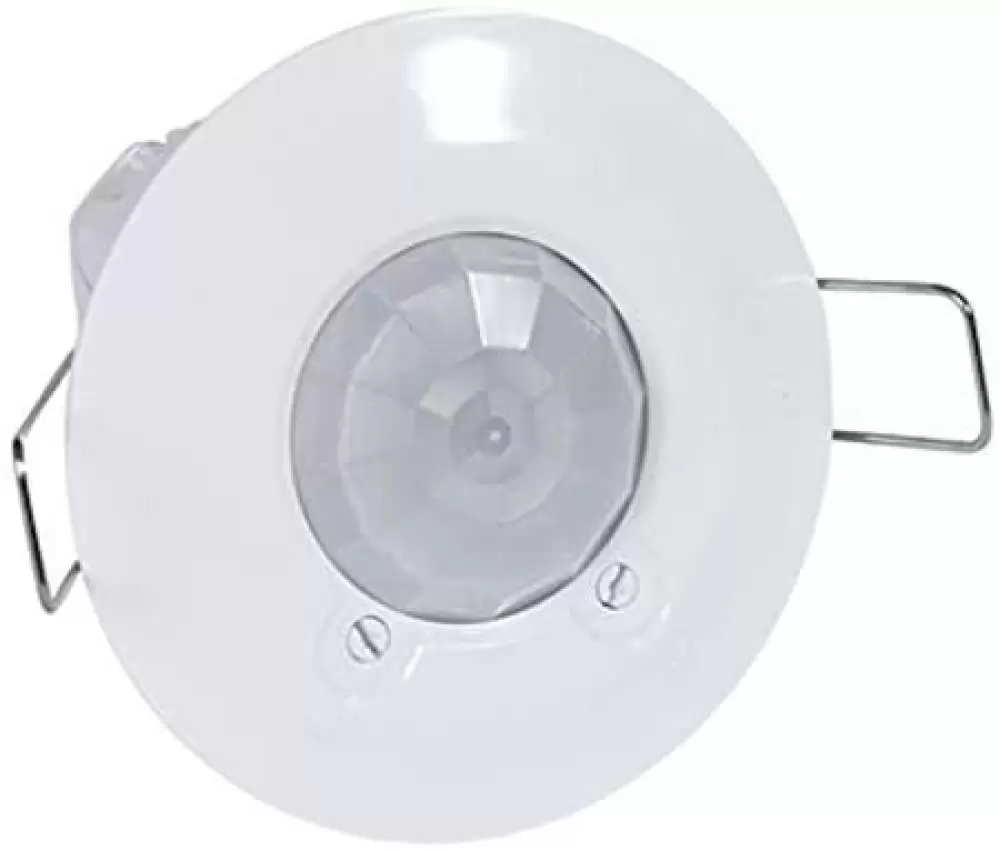

Legrand Infrared Red Motion Sensor 360 Flush 48941
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : MOTION DETECTOR
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : 220 – 240 V / 50 – 60 Hz
APPLICATIONS, AREA : PASSAGE AREAS
MOUNTING HEIGHT : 2.5 m
DETECTION ANGLE : 360°
HS Code :
Lead Time : 7-10 Days
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD MODEL WAS 20 AUHT
KDK, VENTILATING FAN, WALL MOUNT TYPE, 18W, SILENT STREAM FA...AED 195.00
Legrand 360° motion sensor - IP41 - 8 m - flush ceiling-mounting - PIR technology - cardboard
- Automatic on/off
- Manual adjustment of light level threshold and time delay via potentiometer
- Fixes directly to a false ceiling with mounting claws (included) or installed in a Batibox box, depth 50 mm
- Standby consumption: 0.75 W
- 3-wire with neutral
- Light level threshold: 10 to 1275 lux
- Optimum distance between 2 sensors: 6 m
Specifications
| Brand | LEGRAND |
| Model Number | Legrand 48941 |
| SENSOR TYPE | MOTION DETECTOR |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | 220 – 240 V / 50 – 60 Hz |
| APPLICATIONS, AREA | PASSAGE AREAS |
| MOUNTING HEIGHT | 2.5 m |
| DETECTION ANGLE | 360° |
| REACH | 8 m |
| INSTALLATION | Recessed mount |
| TIME SETTING | 10 s - 10 m |
| IP RATING | IP40 |
| Part No. EAN | 48941 |
| Lead Time | 7-10 Days |
| Warranty | 1 year warranty |
