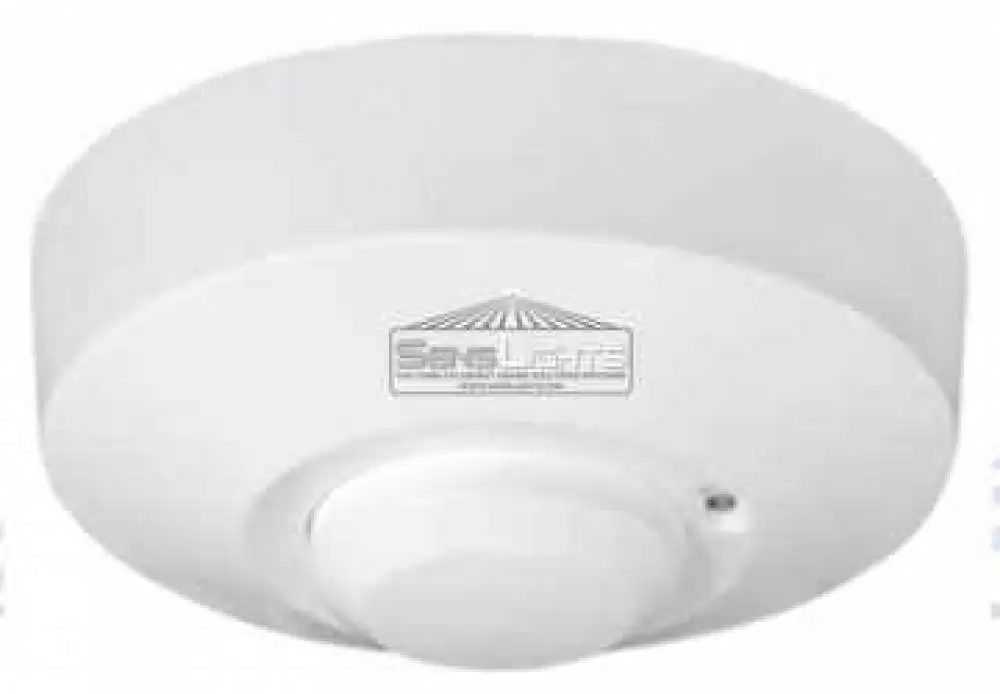

Senslights Occupancy Sensor High Frequency SLL 1229M
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : PRESENCE DETECTOR
SENSOR TECHNOLOGY : High Frequency
MAIN POWER SUPPLY : 220 – 240 V / 50 – 60 Hz
APPLICATIONS, AREA : GARAGE, STAIR, BALCONY FENCE, GATE

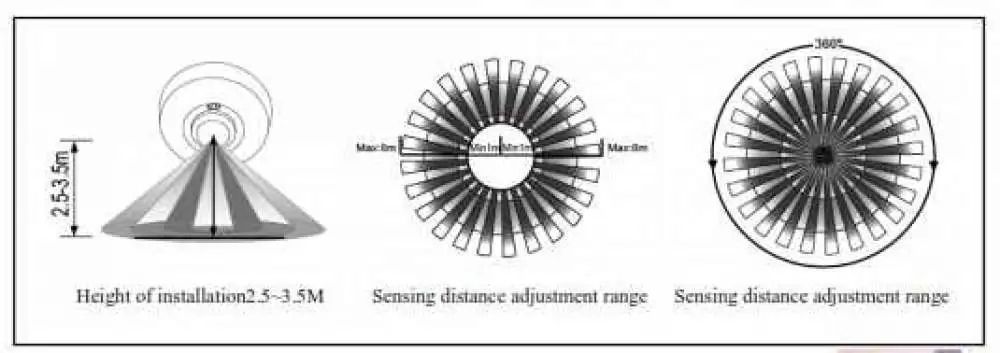

MOUNTING HEIGHT : 2,50 – 3,50 m
DETECTION ANGLE : 360°
HS Code :
Lead Time : 5-10 Days
VIEW MORE PRODUCT DETAILS
Related Products
Senslights Occupancy Sensor High Frequency SLL 1229M
The microwave sensor is according to the microwave doppler effect
SPECIFICAITONS:
Power source: 220-240V/AC
Power frequency: 50/60Hz
Transmission power: <0.2mW
Rated load:
1200W Max.tungsten(cosφ=1) (220-240V/AC)
300W Max.fluorescent(cosφ=0.5) (220-240V/AC)
Installation sit: indoors, ceiling mounting
Detection angle: 360°
Detection range: 1-< 20m(radii.) (adjustable)
Time setting: 8sec to 12min (adjustable)
Light-control: 2~2000LUX (adjustable)
Working temperature: -15°C~+70°C
HF system: 5.8GHz CW Electric wave,ISM band
Power consumption: approx.0.5W
Specifications
| Brand | SENSLIGHTS |
| Model Number | Senslights SLL 1229M |
| SENSOR TYPE | PRESENCE DETECTOR |
| SENSOR TECHNOLOGY | High Frequency |
| MAIN POWER SUPPLY | 220 – 240 V / 50 – 60 Hz |
| APPLICATIONS, AREA | GARAGE, STAIR, BALCONY FENCE, GATE |
| MOUNTING HEIGHT | 2,50 – 3,50 m |
| DETECTION ANGLE | 360° |
| OUTPUT | 1200W |
| HF SYSTEM | 5.8 GHz |
| REACH | 1 to <20 m radial |
| INSTALLATION | Surface |
| TIME SETTING | 8 s - 12 m |
| IP RATING | IP44 |
| Part No. EAN | SLL 1229M |
| Lead Time | 5-10 Days |
| Warranty | 1 year warranty |
