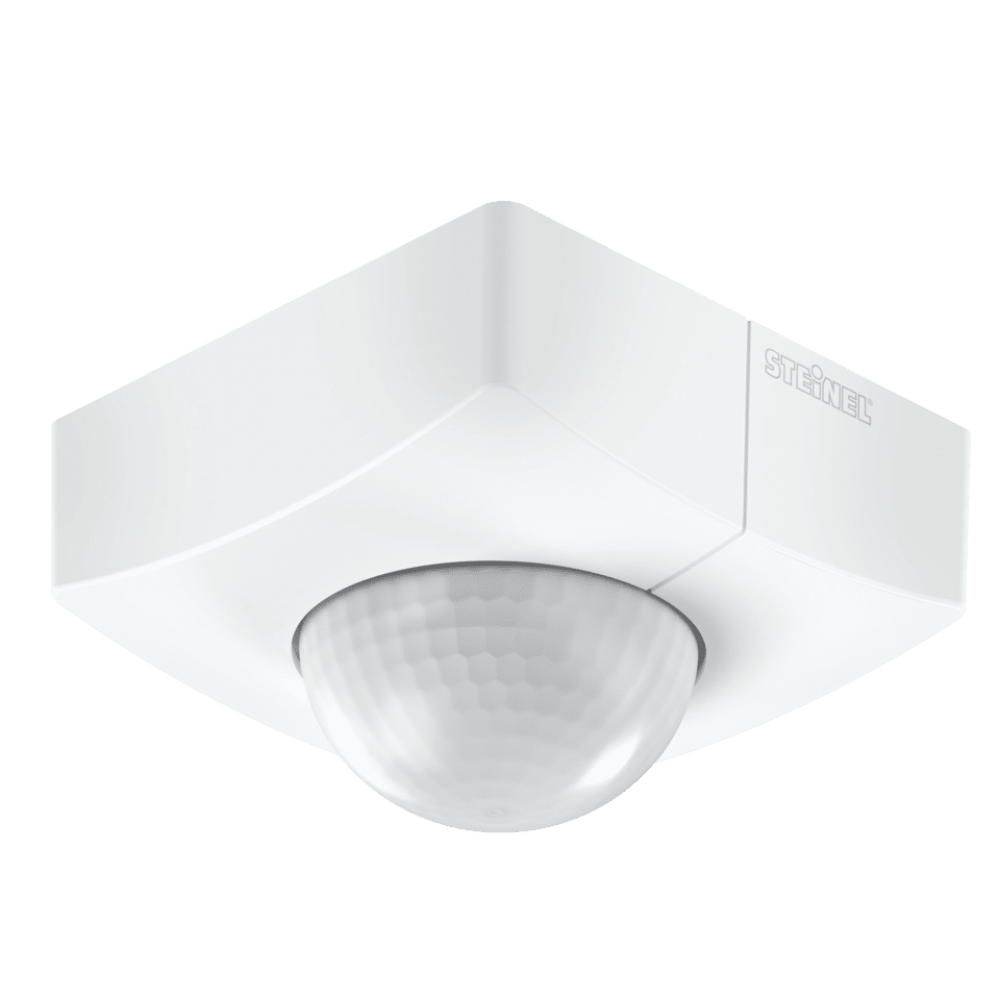

Steinel Infrared Motion Sensor IS 3360 MX Highbay COM1 AP 4007841033569
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : MOTION DETECTOR
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : 220 – 240 V / 50 – 60 Hz

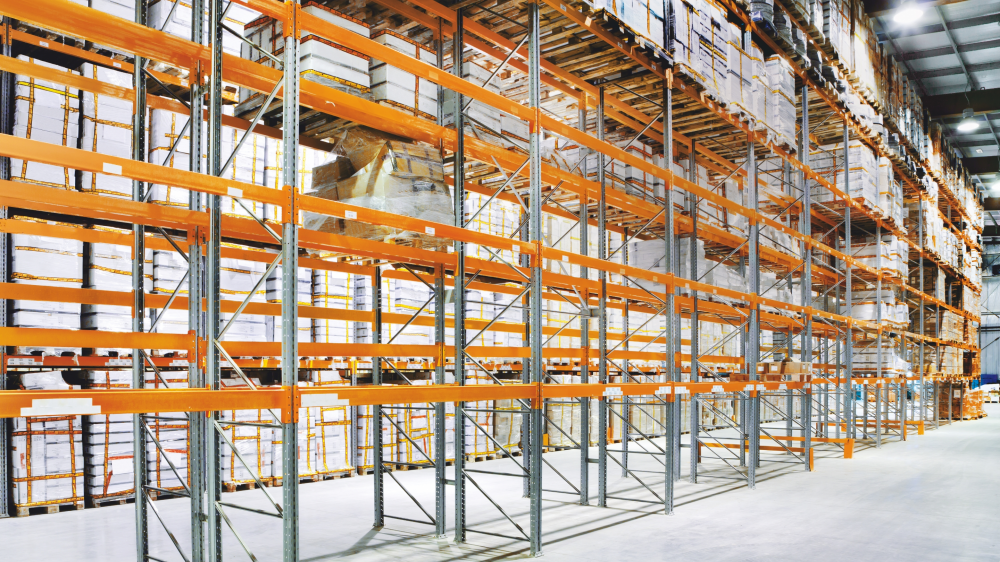

APPLICATIONS, AREA : high-bay warehouse, sports hall, Indoors
MOUNTING HEIGHT : 4 - 14 m
DETECTION ANGLE : 360°
HS Code :
Lead Time : 2 - 4 Week
VIEW MORE PRODUCT DETAILS
Related Products
Motion Detector IS 3360 MX Highbay
A head for heights. Powerful reach. Reliable. IS 3360 MX Highbay motion detector – ideal for high ceilings in industrial buildings or commercial properties. For mounting heights of up to 14 m. High-precision 360° infrared sensor. Maximum reach: 18 m. For watching over up to 1000 sq.m. Available as square surface-mounted and concealed version.
Specifications
| Brand | STEINEL |
| Model Number | IS 3360 MX Highbay COM1 AP |
| SENSOR TYPE | MOTION DETECTOR |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | 220 – 240 V / 50 – 60 Hz |
| APPLICATIONS, AREA | high-bay warehouse, sports hall, Indoors |
| MOUNTING HEIGHT | 4 - 14 m |
| DETECTION ANGLE | 360° |
| OUTPUT | 2000W |

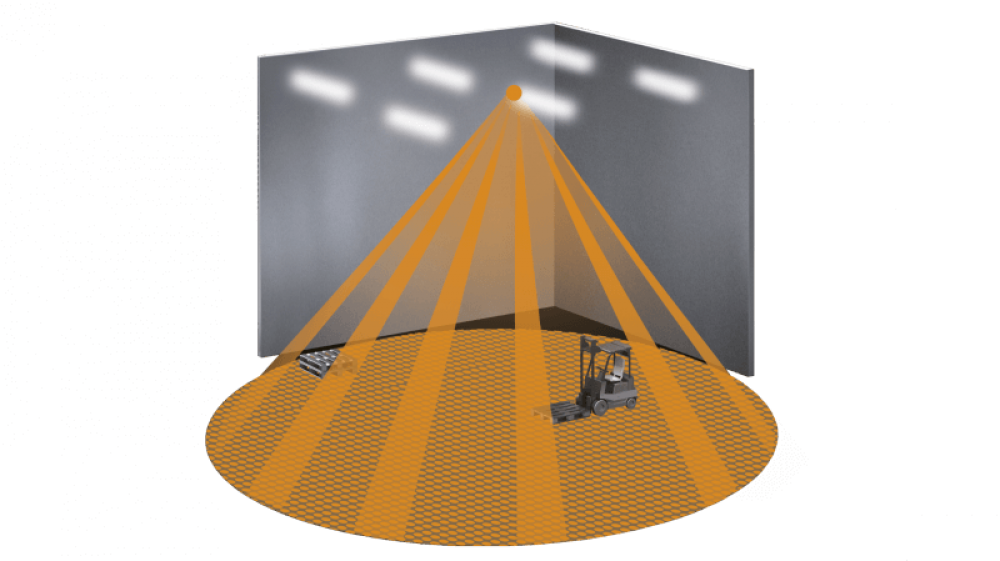

| REACH | Radial Ø 14 m (154 m²), Tangential Ø 36 m (1018 m² |
| INSTALLATION | CEILING |
| TIME SETTING | 5 s - 15 Min |
| VERSION | COM1 AP |
| OTHER VERSION | KNX, DALI, LIVELINK, DIM, |
| IP RATING | IP54 |
| Part No. EAN | 4007841033569 |
| Lead Time | 2 - 4 Week |
| Warranty | 5 year warranty |
