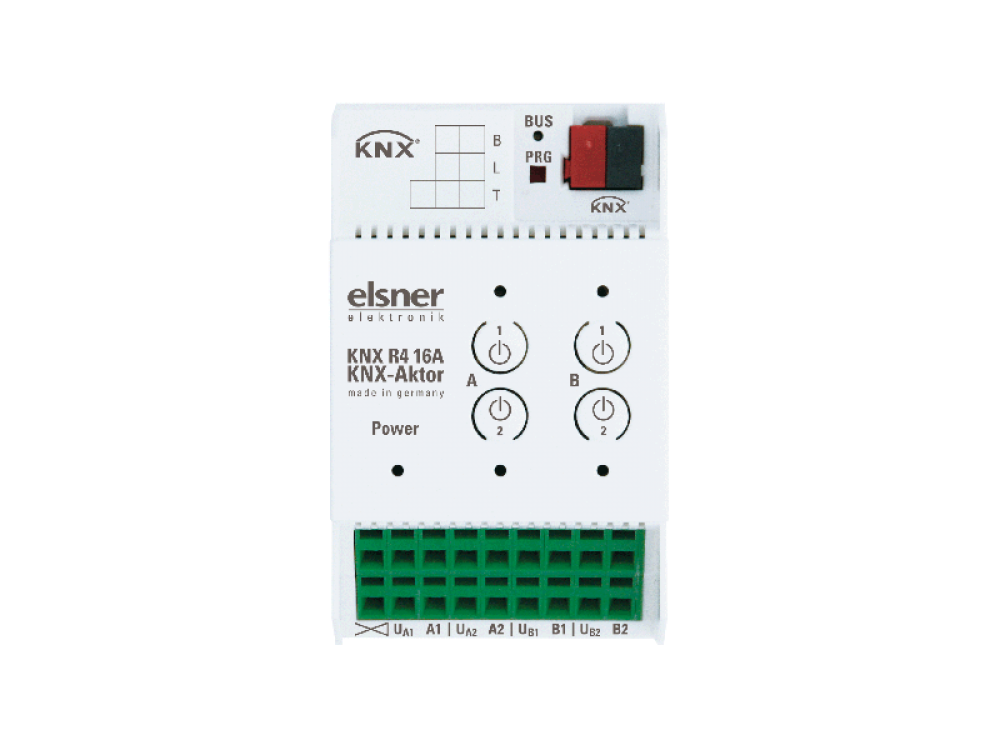

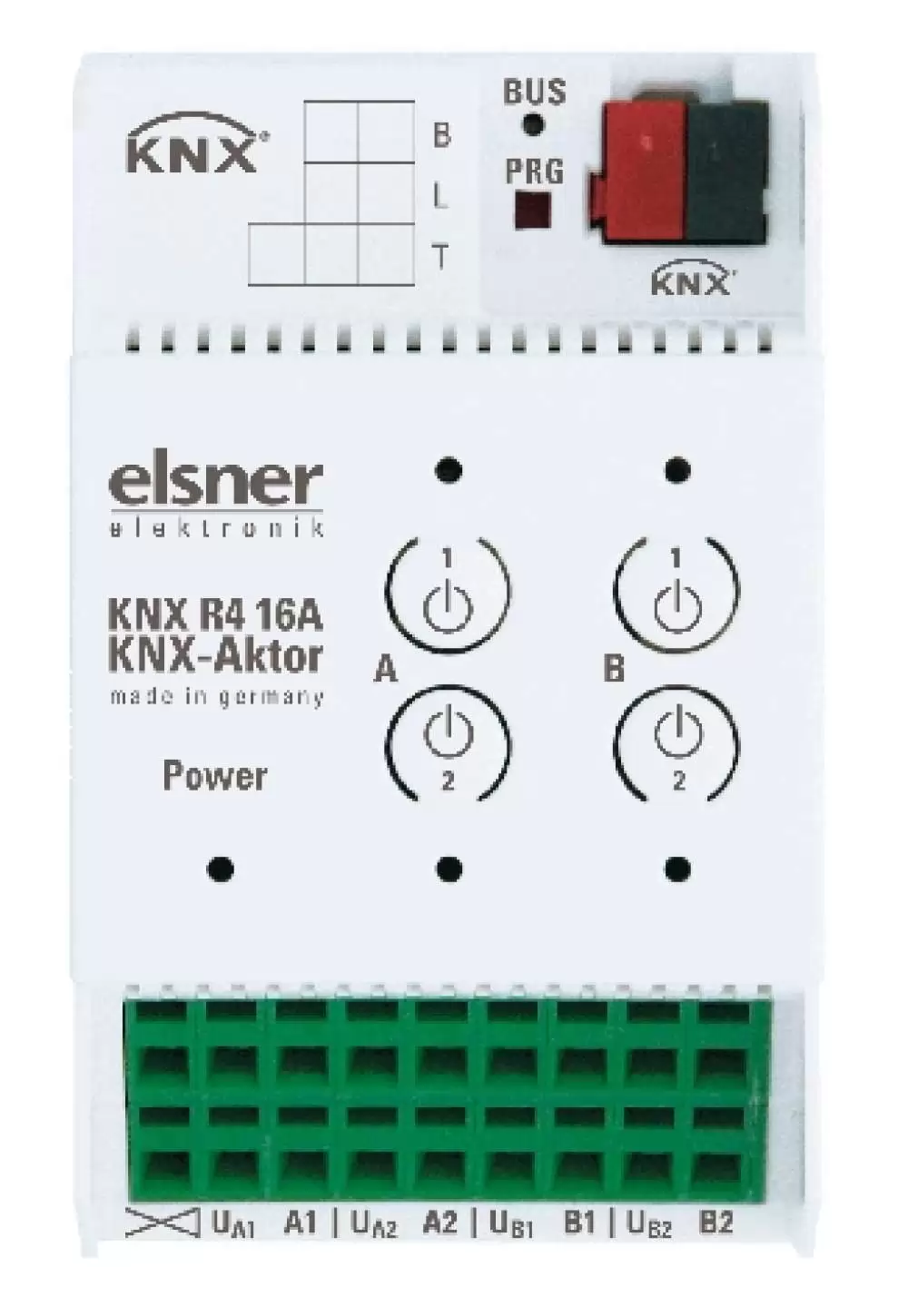

ELSNER KNX ACTUATOR WITH POTENTIAL FREE 4 SWITCHING OUTPUTS KNX R4 16A N 70571
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PROTOCOL : KNX
IP RATING : IP20
RELATIVE HUMIDITY : < 95%
OPERATING TEMPERATURE : -10°C to 50°C
HS Code :
Lead Time : 10-15 DAYS
VIEW MORE PRODUCT DETAILS
Related Products
KNX R4 16 A | KNX R8 16 A
Actuator with Potential-Free Switching Outputs

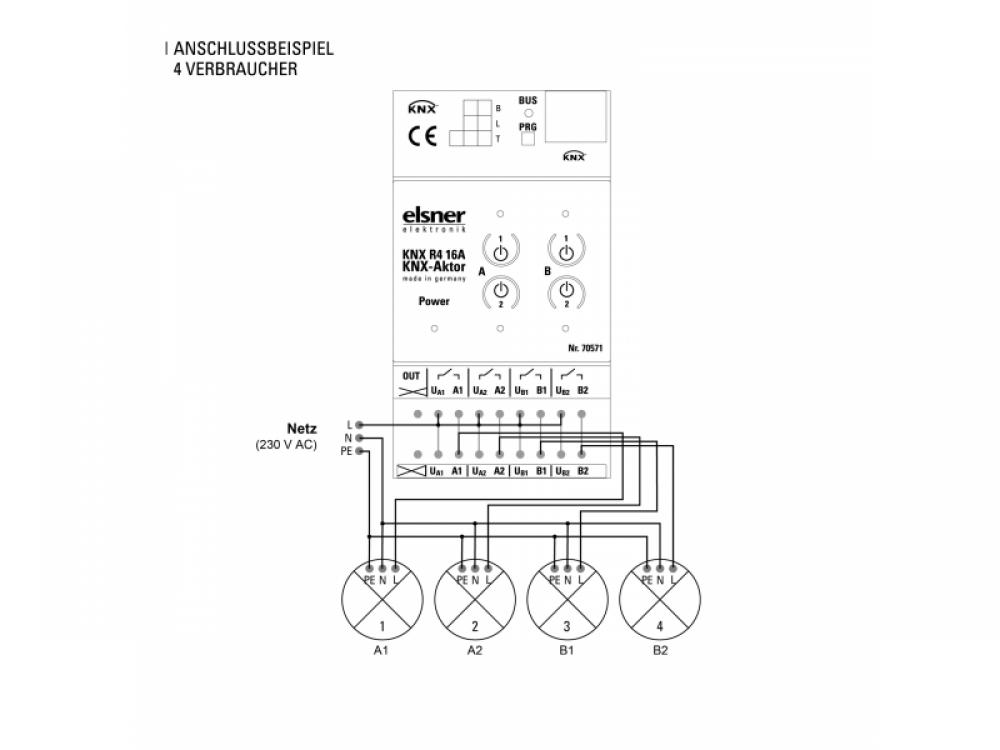

The potential-free outputs of the Actuators KNX R4 16 A and KNX R8 16 A switch consumer loads up to 16 Ampere.
Time functions such as an on/off delay or a staircase lighting function can be configured in the devices applications. Linking with AND or OR is also possible.
The potential-free outputs of the Actuators KNX R4 16 A and KNX R8 16 A switch consumer loads up to 16 Ampere.
Time functions such as an on/off delay or a staircase lighting function can be configured in the devices applications. Linking with AND or OR is also possible.
Models:
N° 70571 KNX R4 16 A, 4 switching outputs
N° 70570 KNX R8 16 A, 8 switching outputs
Housing Plastic Colour White Assembly Series installation on mounting rail Protection category IP 20 Ambient temperature Operation -20…+70°C, storage -55…+90°C Ambient humidity max. 95% RH, avoid condensation Operating voltage KNX bus voltage Current at the bus operation without relay activity: 15 mA.
For permanent relay switching operations up to 30 mA Output load capacity • 16 A with alternating voltage, maximum 250 V AC
• 5 A with direct current 30 V DC
• UL approval up to 10 A
• Cable cross section 1.5 mm² to 2.5 mm² Data output KNX +/- bus connector terminal BCU type Integrated microcontroller PEI type 0 Group addresses max. 254 Assignments max. 254
N° 70571 KNX R4 16 A, 4 switching outputs
N° 70570 KNX R8 16 A, 8 switching outputs
| Housing | Plastic |
| Colour | White |
| Assembly | Series installation on mounting rail |
| Protection category | IP 20 |
| Ambient temperature | Operation -20…+70°C, storage -55…+90°C |
| Ambient humidity | max. 95% RH, avoid condensation |
| Operating voltage | KNX bus voltage |
| Current at the bus | operation without relay activity: 15 mA. For permanent relay switching operations up to 30 mA |
| Output load capacity | • 16 A with alternating voltage, maximum 250 V AC • 5 A with direct current 30 V DC • UL approval up to 10 A • Cable cross section 1.5 mm² to 2.5 mm² |
| Data output | KNX +/- bus connector terminal |
| BCU type | Integrated microcontroller |
| PEI type | 0 |
| Group addresses | max. 254 |
| Assignments | max. 254 |
KNX R4 16 A (70571):
Dimensions approx. 53 x 88 x 60 (W x H x D, mm), 3 modules Weight approx. 150 g Outputs 4 × output, free of potential,
each power supply U Communication objects 37
| Dimensions | approx. 53 x 88 x 60 (W x H x D, mm), 3 modules |
| Weight | approx. 150 g |
| Outputs | 4 × output, free of potential, each power supply U |
| Communication objects | 37 |
Specifications
| Brand | ELSNER |
| Model Number | ELSNER KNX R4 16A N 70571 |
| PROTOCOL | KNX |
| IP RATING | IP20 |
| RELATIVE HUMIDITY | < 95% |
| OPERATING TEMPERATURE | -10°C to 50°C |
| Lead Time | 10-15 DAYS |
