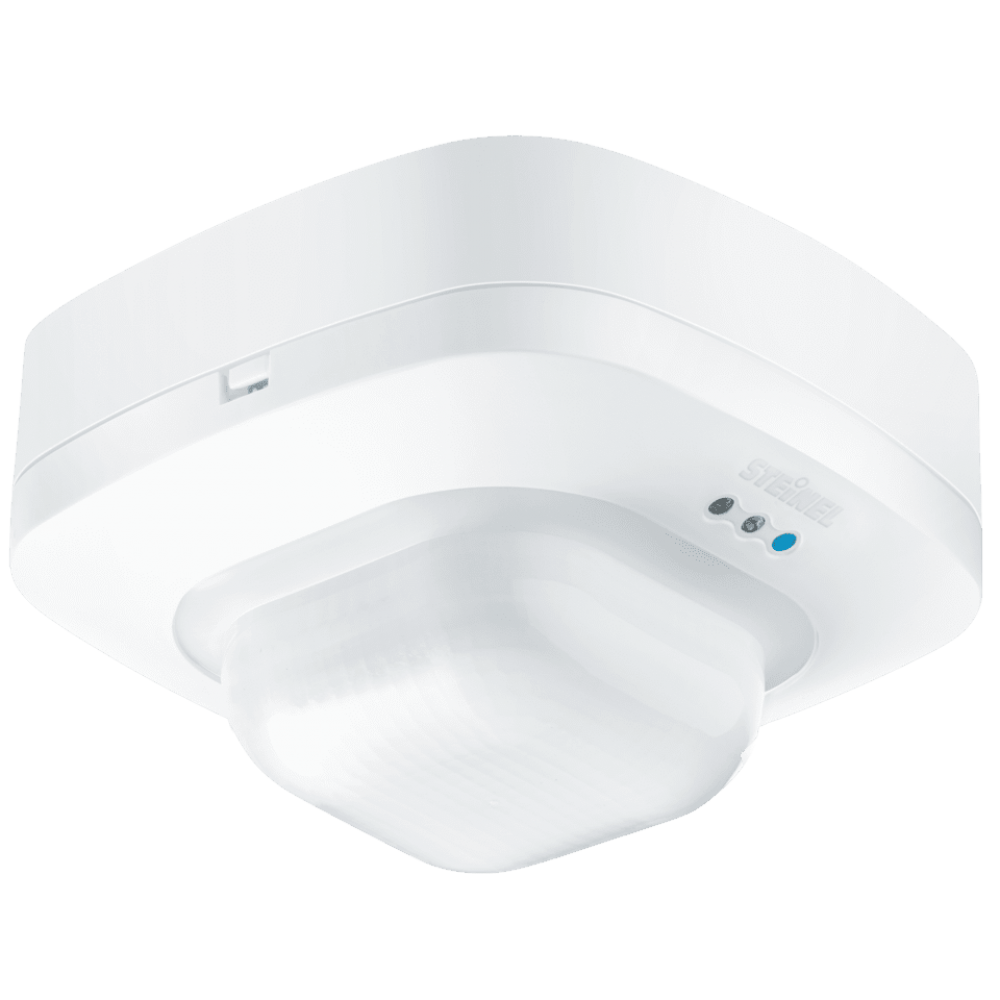

Steinel Infrared Presence Detector IR QUATTRO COM1 AP 4007841592301
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : 230 V / 50 - 60Hz
APPLICATIONS, AREA : one-person office, conference room / meeting room, duty room, recreation room, changing room, function room / ancillary room, kitchenette, Indoors
MOUNTING HEIGHT : 2,50 – 8,00 m
DETECTION ANGLE : 360°
OUTPUT : 2000W
HS Code :
Lead Time : 2 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
IR Quattro
Squaring the circle. Infrared presence detector Presence Control PRO IR Quattro COM1 AP for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, installation height up to 8 m, surface-mounting version for switching light 'ON' and 'OFF', 1760 switching zones for excellent detection quality, square presence detection zone covering 16 m2, mechanically scalable.
Specifications
| Brand | STEINEL |
| Model Number | IR QUATTRO COM1 AP |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | 230 V / 50 - 60Hz |
| APPLICATIONS, AREA | one-person office, conference room / meeting room, duty room, recreation room, changing room, function room / ancillary room, kitchenette, Indoors |
| MOUNTING HEIGHT | 2,50 – 8,00 m |
| DETECTION ANGLE | 360° |
| OUTPUT | 2000W |

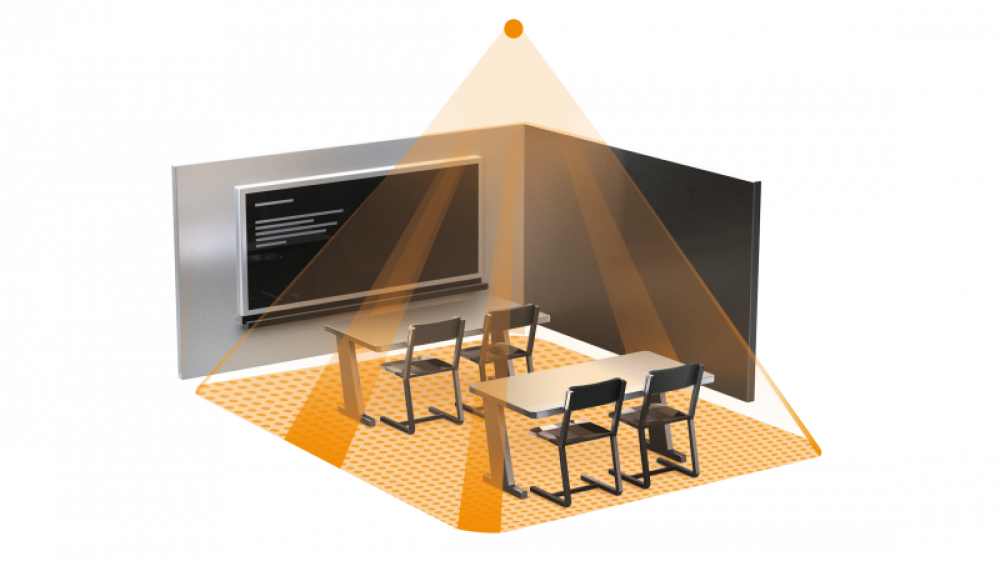

| REACH | Radial 5 x 5 m (25 m²), Tangential 7 x 7 m (49 m²), Presence 4 x 4 m (16 m²) |
| INSTALLATION | CEILING |
| TIME SETTING | 30 s - 30 Min |
| VERSION | COM1 AP |
| OTHER VERSION | KNX, DALI, LIVELINK, DIM, |
| IP RATING | IP20 |
| Part No. EAN | 4007841592301 |
| Lead Time | 2 - 4 Weeks |
| Warranty | 5 year warranty |
