Steinel Infrared Presence Detector IR QUATTRO HD COM1 UP 4007841002794
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : 230 V / 50 - 60Hz
APPLICATIONS, AREA : classroom, lecture hall, open-plan office, high-bay warehouse, production facilities, conference room / meeting room, duty room, recreation room, changing room, sports hall, reception / lobby
MOUNTING HEIGHT : 2,50 – 10,00 m
DETECTION ANGLE : 360°
OUTPUT : 2000W
HS Code :
Lead Time : 2 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
IR Quattro HD
Detection no finer! Infrared presence detector Presence Control PRO IR Quattro HD COM1 for indoors, ideal for medium to large-size offices, conference and meeting rooms, classrooms and lecture theatres, sports halls and warehouses, installation height up to 10 m, for switching light 'ON' and 'OFF', 4800 switching zones for the ultimate in detection quality, presence detection over a true 64 m2, square detection zone, mechanically scalable.
Fits on the ceiling. And sees what others dream of.

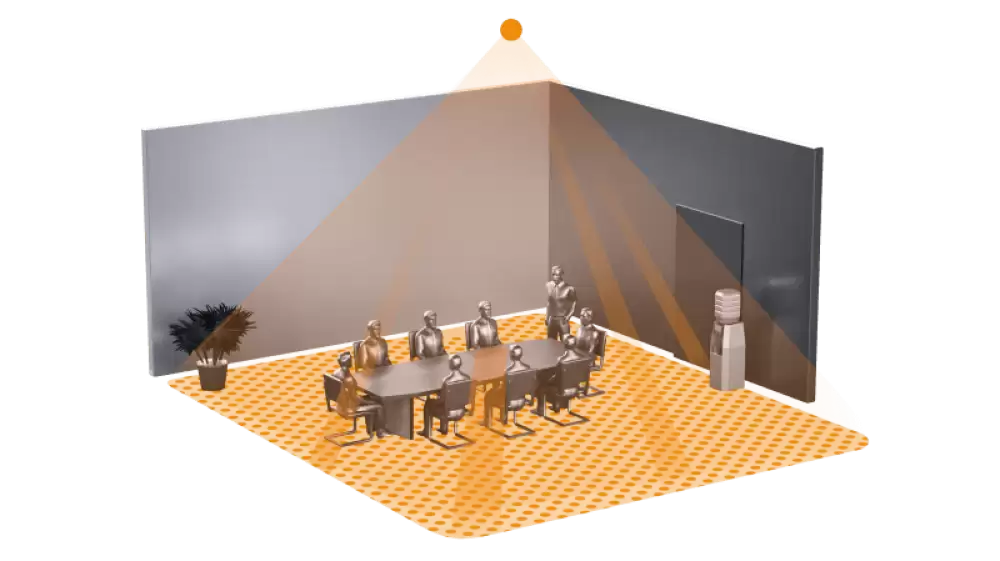

HD isn't just restricted to televisions but from now on also used in presence detectors. Because IR Quattro HD provides extremely high-definition detection. 4,800 switching zones and a square detection footprint with a presence zone covering a true 64 m² leave no margin whatsoever for inadvertent triggering and blind spots. Unique: The presence zone can be mechanically scaled without the slightest loss of quality. This means IR Quattro HD applications in medium to large-size offices, conference and meeting rooms, class rooms and lecture theatres as well as sports halls and warehouses can be planned and configured with absolute precision. Something others can only dream of.
Specifications
| Brand | STEINEL |
| Model Number | IR QUATTRO HD COM1 UP |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | 230 V / 50 - 60Hz |
| APPLICATIONS, AREA | classroom, lecture hall, open-plan office, high-bay warehouse, production facilities, conference room / meeting room, duty room, recreation room, changing room, sports hall, reception / lobby |
| MOUNTING HEIGHT | 2,50 – 10,00 m |
| DETECTION ANGLE | 360° |
| OUTPUT | 2000W |
| REACH | Radial 8 x 8 m (64 m²), Tangential 20 x 20 m (400 m²), Presence 8 x 8 m (64 m²) |
| INSTALLATION | CEILING |
| TIME SETTING | 30 s - 30 Min |
| VERSION | COM 1 |
| OTHER VERSION | KNX, DALI, LIVELINK, DIM, |
| IP RATING | IP20 |
| Part No. EAN | 4007841002794 |
| Lead Time | 2 - 4 Weeks |
|
| |
| Warranty | 5 year warranty |
