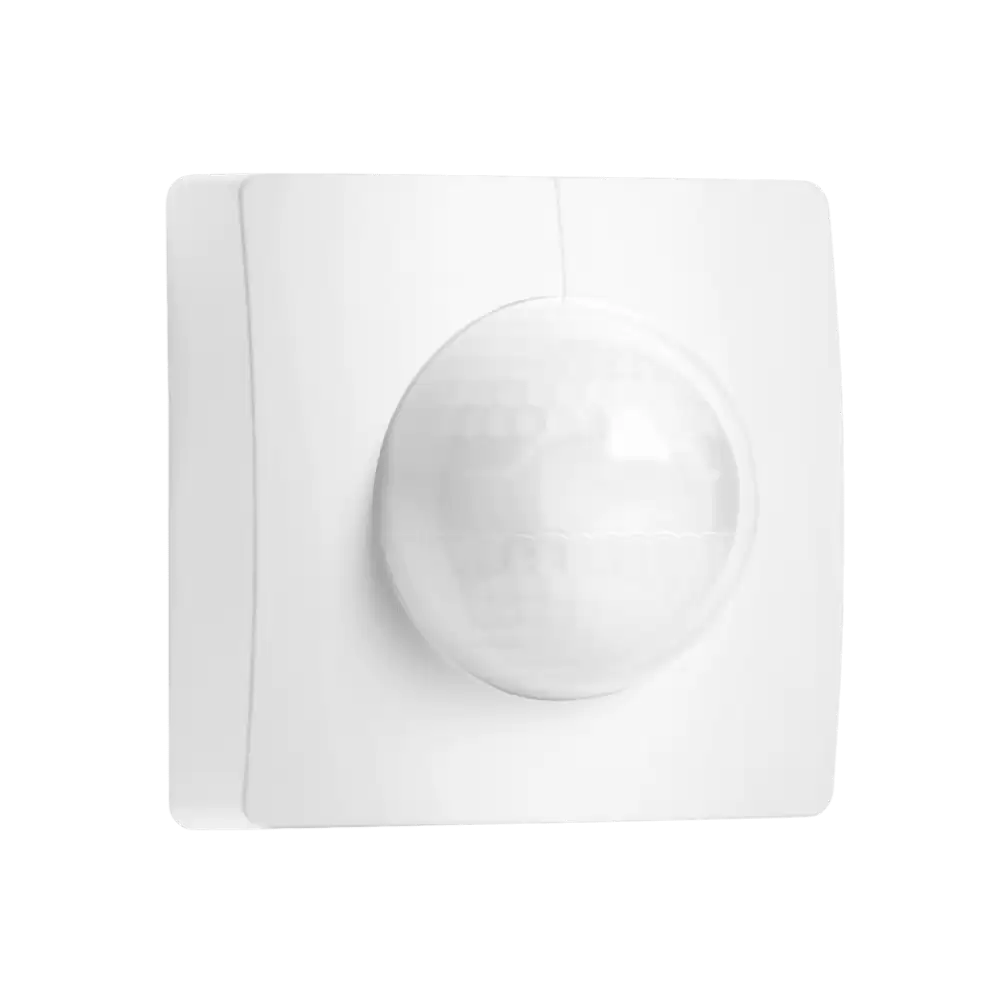

Steinel Infrared Motion Sensor IS 3180-E COM1 AP 4007841009113 WHITE
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : 220 – 240 V / 50 – 60 Hz
APPLICATIONS, AREA : Aisle / Function room / Ancillary Room / Underground Car Park , all around building , courtyard , driveway corridor..etc
MOUNTING HEIGHT : 1.8 - 2.5 m
DETECTION ANGLE : 180°

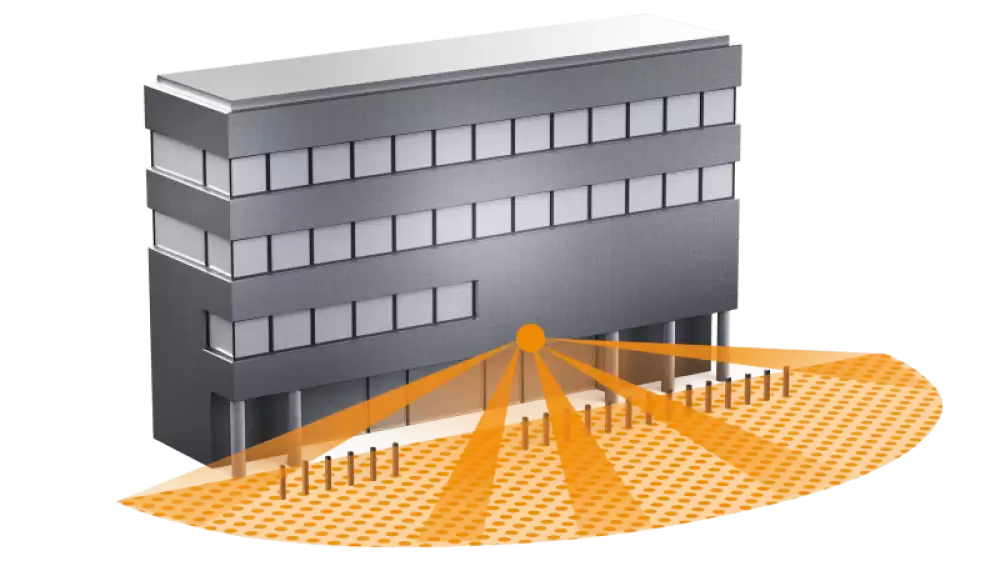

REACH : Radial 4 m, Tangential 20 m
HS Code :
Lead Time : 2 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
Infrared motion detector IS 3180 Surface COM1 White
For large areas. Infrared motion detector IS 3180 for indoors and out, ideal for watching over large areas, ideal installation height 2 m, 180° angle of coverage, reach 20 m max. or 8 m max. (tangential), large terminal compartment for easy installation, heavy-duty relay for high switching capacity.
Specifications
| Brand | STEINEL |
| Model Number | IS 3180-E COM1 AP WHITE |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | 220 – 240 V / 50 – 60 Hz |
| APPLICATIONS, AREA | Aisle / Function room / Ancillary Room / Underground Car Park , all around building , courtyard , driveway corridor..etc |
| MOUNTING HEIGHT | 1.8 - 2.5 m |
| DETECTION ANGLE | 180° |
| REACH | Radial 4 m, Tangential 20 m |
| OUTPUT | 2000W |
| TIME SETTING | 5 s - 15 Min |
| VERSION | COM 1 |
| IP RATING | IP54 |
| PRODUCT WARRANTY | 5 Years |
| Lead Time | 2 - 4 Weeks |
| Warranty | 5 year warranty |
