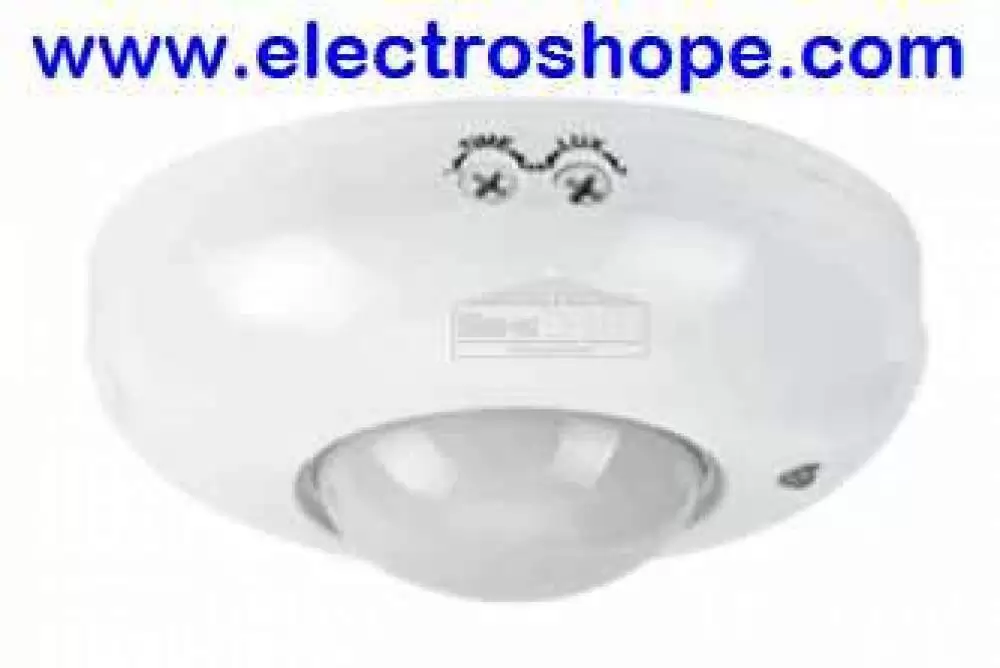

Senslights Infrared Motion Sensor Surface Mounted SLL 1720B
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : MOTION DETECTOR
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : 100 - 240V
APPLICATIONS, AREA : HALL, PASSAGE, CORRIDOR, GARAGE STAIR
MOUNTING HEIGHT : 2 - 4 m
DETECTION ANGLE : 360°
HS Code :
Lead Time : 5-10 Days
VIEW MORE PRODUCT DETAILS
Related Products
SLL1720B infrared automatic switch
The product is a new energy-saving switch, it adopts integrated circuit and the good sensitivity detector. It incorporates automatism, convenience, energy-saving, safety and practicality. It works by receiving human motion infrared rays. It can start the controlled load at once when one enters detection field. It can identify day and night automatically. Its installation is very convenient and using range is wide. It has the functions of power indication and detection indication.
SPECIFICATIONS:
Power source: 220-240V/AC
100-130V/AC
Power frequency: 50/60Hz
Rated load: 1200W Max.tungsten (220-240V/AC)
120W Max. fluorescent (220-240V/AC)
800W Max.tungsten (100-130V/AC)
80W Max.fluorescent (100-130V/AC)
Time setting: Min: 5sec Max: 6min±1min
Light-control: <10LUX

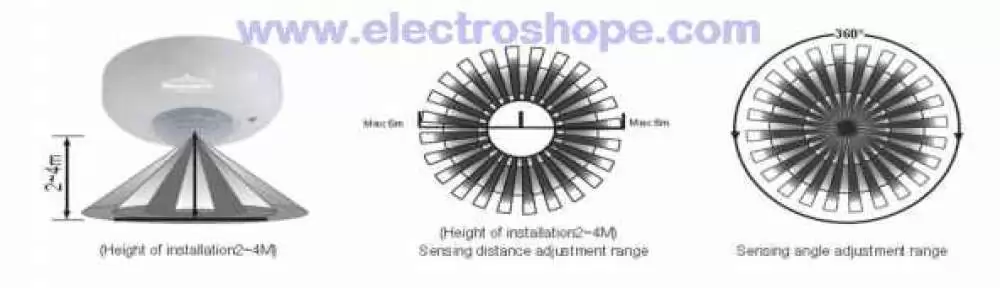

Detection range: 6m Max (24°C)
Detection angle: 120°(side view)
360°(top view)
Working temperature: -10°C~+40°C
Working humidity: <93%RH
Installation height: 2m~4m
Power consumption: 0.5W (static 0.1W)
Detection speed: 0.6 ~1.5m/s
Specifications
| Brand | SENSLIGHTS |
| Model Number | Senslights SLL 1720B |
| SENSOR TYPE | MOTION DETECTOR |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | 100 - 240V |
| APPLICATIONS, AREA | HALL, PASSAGE, CORRIDOR, GARAGE STAIR |
| MOUNTING HEIGHT | 2 - 4 m |
| DETECTION ANGLE | 360° |
| OUTPUT | 1200W |
| REACH | <6 m in 24°C |
| INSTALLATION | Surface |
| TIME SETTING | 5 s - 8 m |
| Part No. EAN | SLL 1720B |
| Lead Time | 5-10 Days |
| Warranty | 1 year warranty |
