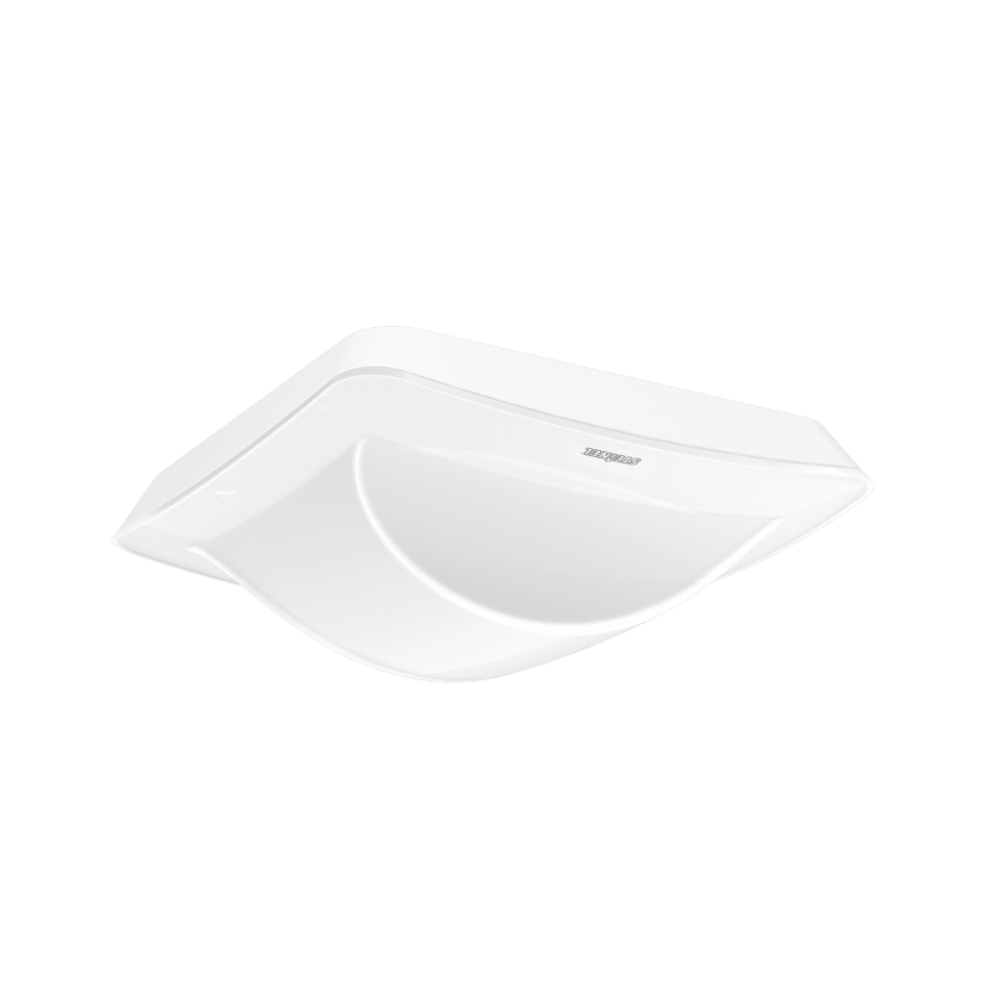

Steinel High Frequency Motion Sensor HALLWAY COM1 UP 4007841057985
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : High Frequency
MAIN POWER SUPPLY : 230 V / 50 - 60Hz
APPLICATIONS, AREA : corridor / aisle, Indoors
MOUNTING HEIGHT : 2,50 – 3,50 m
DETECTION ANGLE : 360°
REACH : Radial 25x3 m, Tangential 25x3 m
HS Code :
Lead Time : 2 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
The specialist for long hallways and aisles.

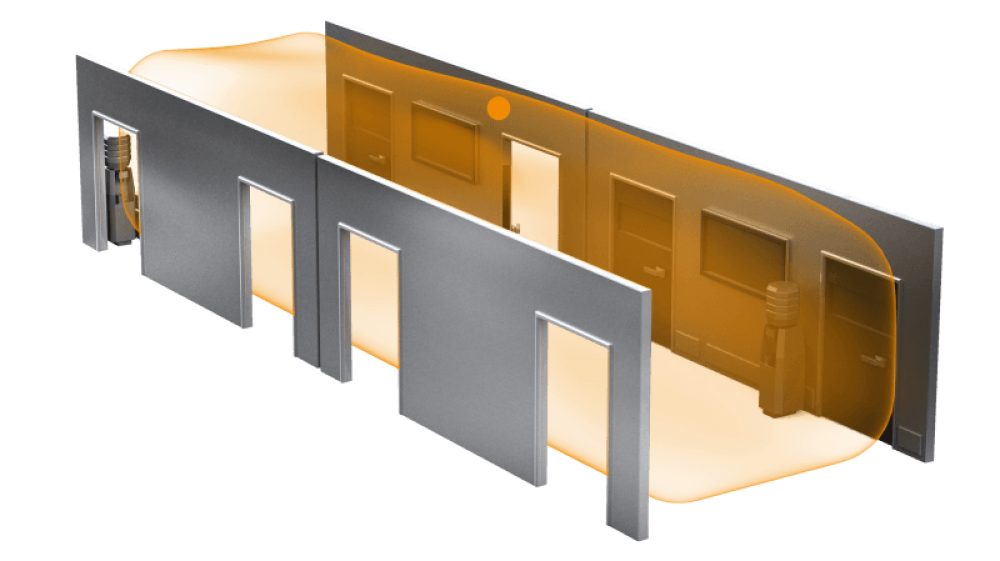

The better hallway sensor knows more. Movement vector (coming and going) as well as if someone is on the left or the right. And this with a detection zone of 25 m. Naturally, its reach can also be adjusted in both directions. It provides more information than any other hallway sensor. Bluetooth technology ensures that the Hallway can be configured and interconnected into existing networks conveniently. And the distinguished design makes it an important member of the true presence® family.
Specifications
| Brand | STEINEL |
| Model Number | HALLWAY COM1 UP |
| SENSOR TECHNOLOGY | High Frequency |
| MAIN POWER SUPPLY | 230 V / 50 - 60Hz |
| APPLICATIONS, AREA | corridor / aisle, Indoors |
| MOUNTING HEIGHT | 2,50 – 3,50 m |
| DETECTION ANGLE | 360° |
| REACH | Radial 25x3 m, Tangential 25x3 m |
| OUTPUT | 2000W |
| TIME SETTING | 30 s - 30 Min |
| VERSION | COM 1 |
| IP RATING | IP20 |
| PRODUCT WARRANTY | 5 Years |
| OTHER VERSION | KNX, DALI, LIVELINK, DIM, |
| Part No. EAN | 4007841057985 |
| Lead Time | 2 - 4 Weeks |
| Warranty | 5 year warranty |
