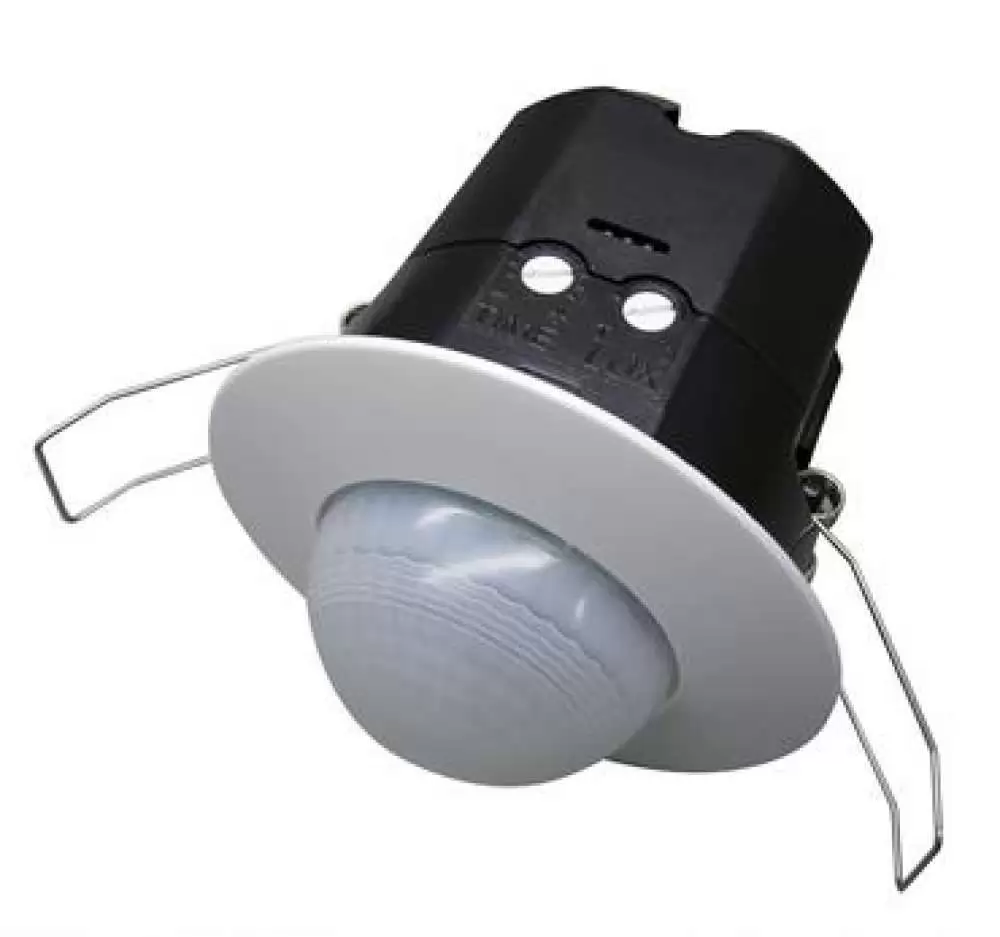

Perry Electric Infrared Red Motion Sensor Ceiling Recess Mounted 360D 1SP SP020
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : MOTION DETECTOR
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : 230 V / 50 - 60Hz
APPLICATIONS, AREA : PASSAGE AREAS
DETECTION ANGLE : 360°
REACH : 14 m
HS Code :
Lead Time : 4 - 6 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
Perry Electric 1SP SP020
Recess mounted in ceiling infrared presence detector with “zero crossing” - IP 20
TECHNICAL SPECIFICATIONS

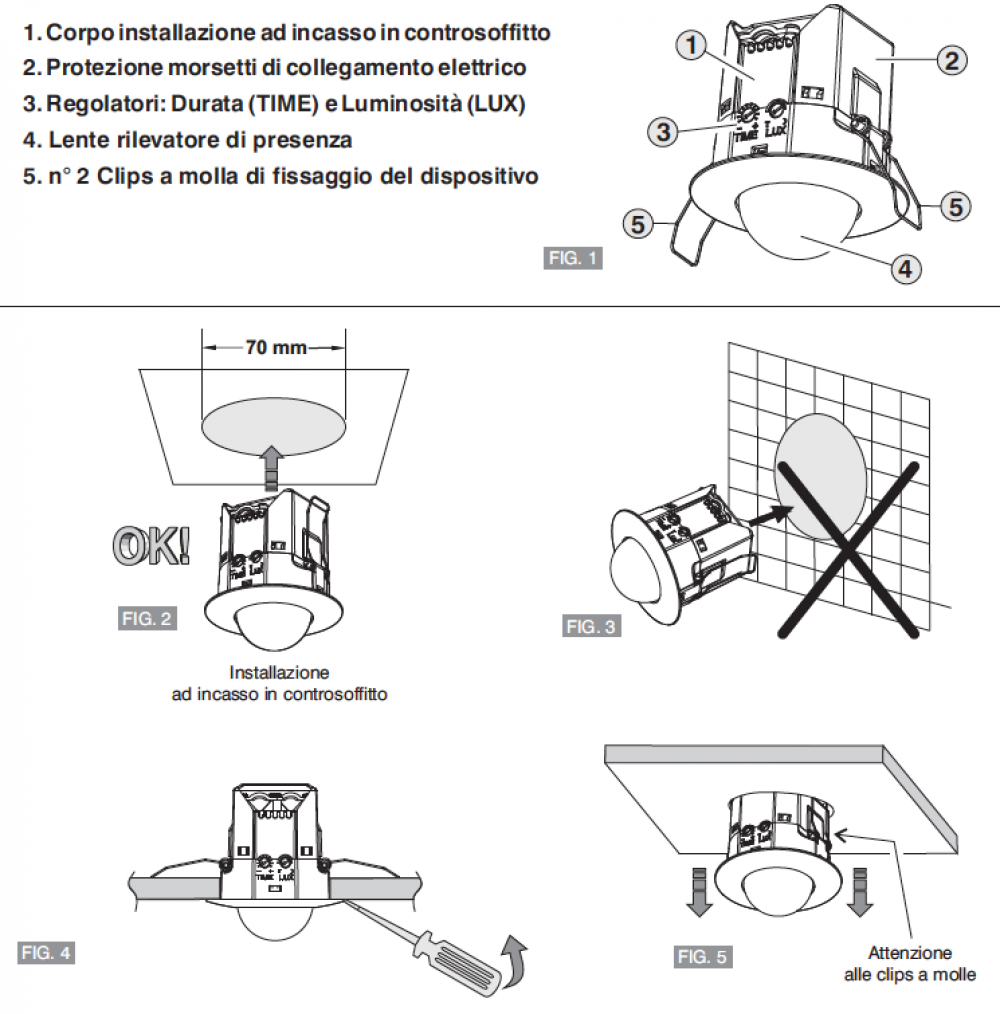

- Recess mounted in ceiling
- Power supply 230V a.c. 50 Hz
- Diameter installation hole Ø 70mm
- Maximum lighting load:
- incandescent lamps 2.000W
- fluorescent lamps (uncompensated) 480W
- fluorescent lamps (compensated in parallel) 250W
- CFL / LED lamps (230V) 7W ÷ 23W max 8 lamps
- “ZERO CROSSING” on relay - Contact closure with zero load to increase the connectable load and relay endurance
- Protection degree IP 20
- Degree of pollution normal

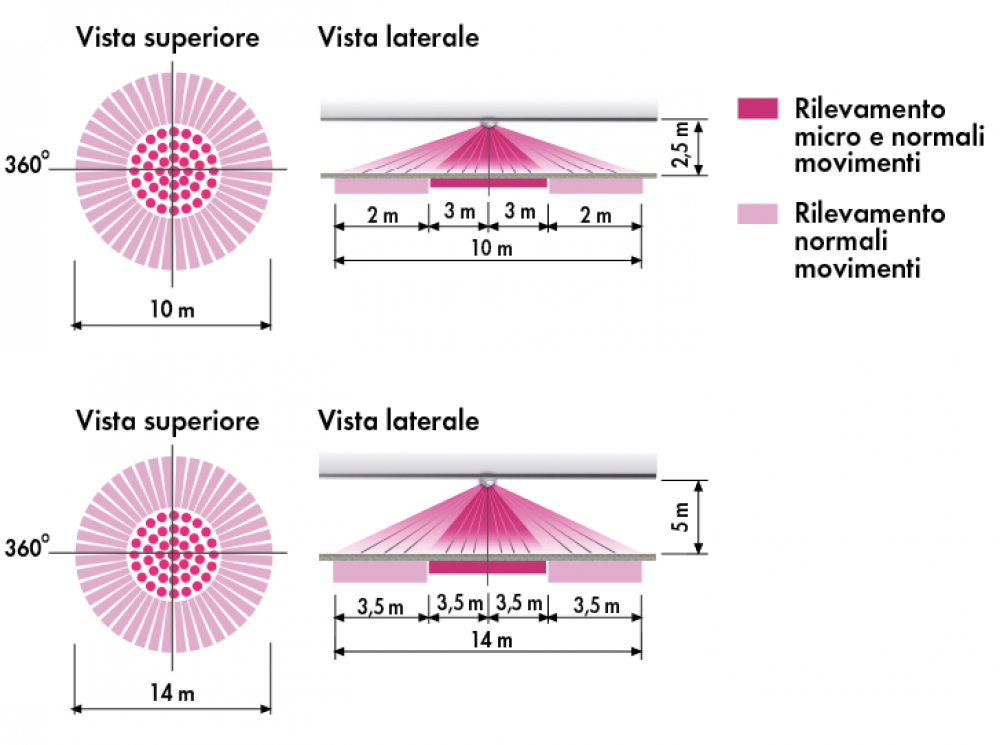

- Detection angle 360°
- Detection distance max 14 m
- Adjustment of deactivation delay 10 settings
- 5, 10, 20, 40, 80, 160 seconds
- 5, 10, 20, 40 minutes
- Lux adjustment from 30 to 200 LUX
- Insulation class II
- CE marking reference standard LVD/EMC EN60669-2-1
- Dimensions (DxW) Ø 79,80 x 91 mm
- Height of lens 18mm
Specifications
| Brand | PERRY ELECTRIC |
| Model Number | Perry Electric 1SP SP020 |
| SENSOR TYPE | MOTION DETECTOR |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | 230 V / 50 - 60Hz |
| APPLICATIONS, AREA | PASSAGE AREAS |
| DETECTION ANGLE | 360° |
| REACH | 14 m |
| INSTALLATION | Recessed mount |
| IP RATING | IP20 |
| Part No. EAN | 1SP SP020 |
| Lead Time | 4 - 6 Weeks |
| Warranty | 1 year warranty |
