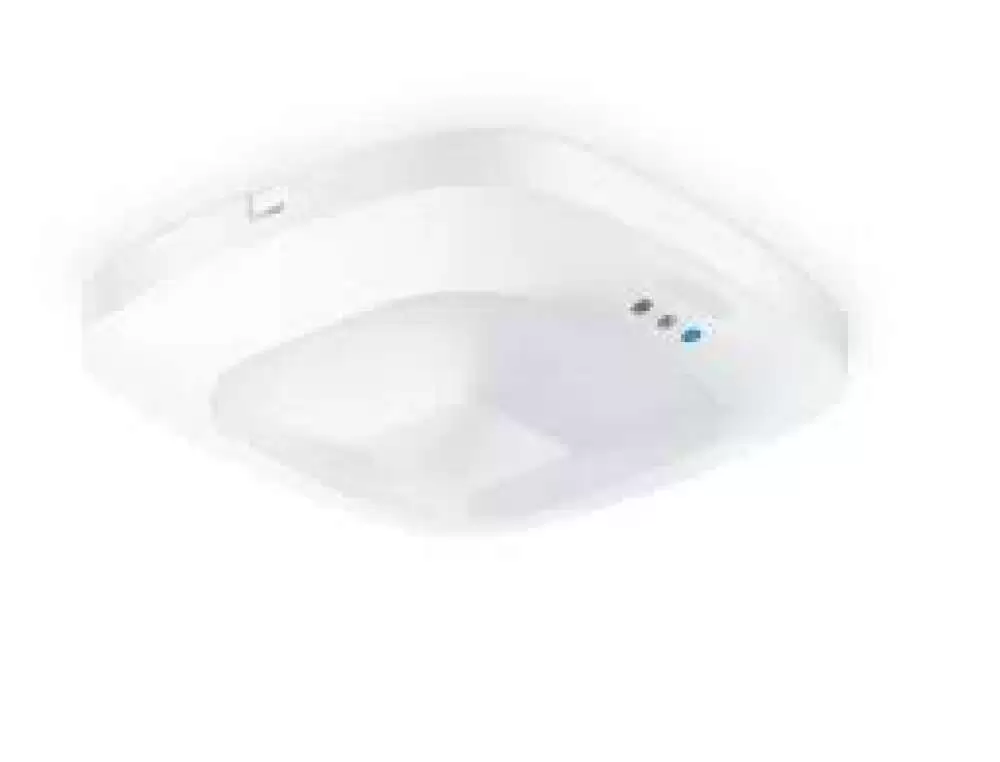

Steinel High-frequency Presence Detector HF 360 COM1 4007841002800
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : High Frequency
MAIN POWER SUPPLY : 230 V / 50 - 60Hz
TYPE : HEAD
APPLICATIONS, AREA : function room / ancillary room, kitchenette, stairwell, WC / washroom, Indoors
MOUNTING HEIGHT : 2,50 – 3,50 m
DETECTION ANGLE : 360°
HS Code :
Lead Time : 2 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
Presence detector - Professional Line
HF 360

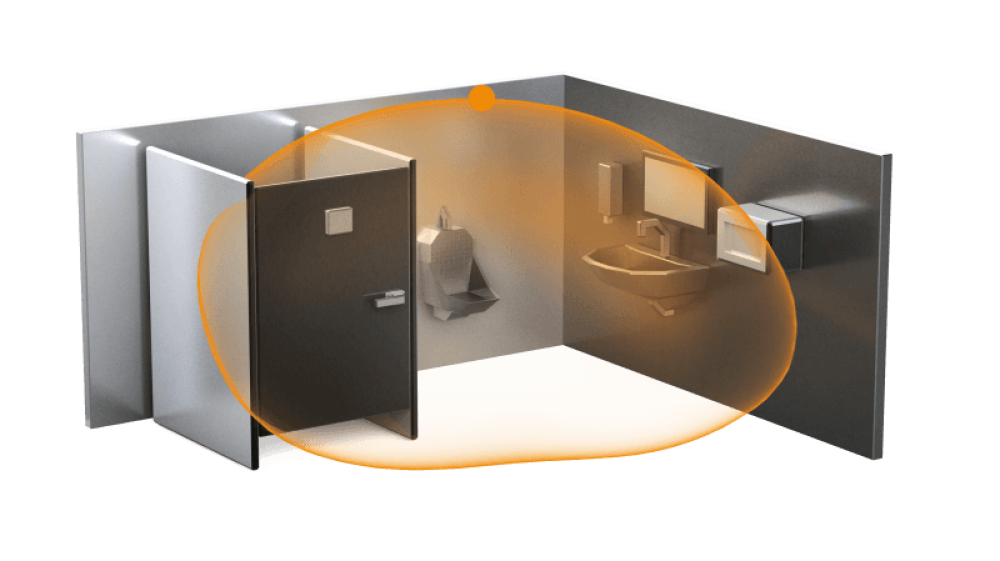

Doesn't miss a thing. HF-presence detector Presence Control PRO HF 360 COM1 AP for indoors, ideal for WCs with toilet cubicles, changing rooms, stairwells, multi-storey car parks, kitchens, installation height up to 3.5 m, surface-mounting version for switching light 'ON' and 'OFF', 1 – 12 m reach, reach is electronically adjustable and can be limited in two directions, detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls.
Specifications
| Brand | STEINEL |
| Model Number | HF 360 COM1 |
| SENSOR TECHNOLOGY | High Frequency |
| MAIN POWER SUPPLY | 230 V / 50 - 60Hz |
| TYPE | HEAD |
| APPLICATIONS, AREA | function room / ancillary room, kitchenette, stairwell, WC / washroom, Indoors |
| MOUNTING HEIGHT | 2,50 – 3,50 m |
| DETECTION ANGLE | 360° |
| DETECTION | THROUGH GLASS, WOOD, AND STUD WALL |
| HF SYSTEM | 5.8 GHz |
| REACH | Radial Ø 12 m (113 m²), Tangential Ø 12 m (113 m²) |
| OUTPUT | 2000W |
| INSTALLATION | CEILING |
| TIME SETTING | 30 s - 30 Min |
| VERSION | COM 1 |
| OTHER VERSION | KNX, DALI, LIVELINK, DIM, |
| IP RATING | IP20 |
| PRODUCT WARRANTY | 5 Years |
| Part No. EAN | 4007841002800 |
| Lead Time | 2 - 4 Weeks |
| Warranty | 5 year warranty |
