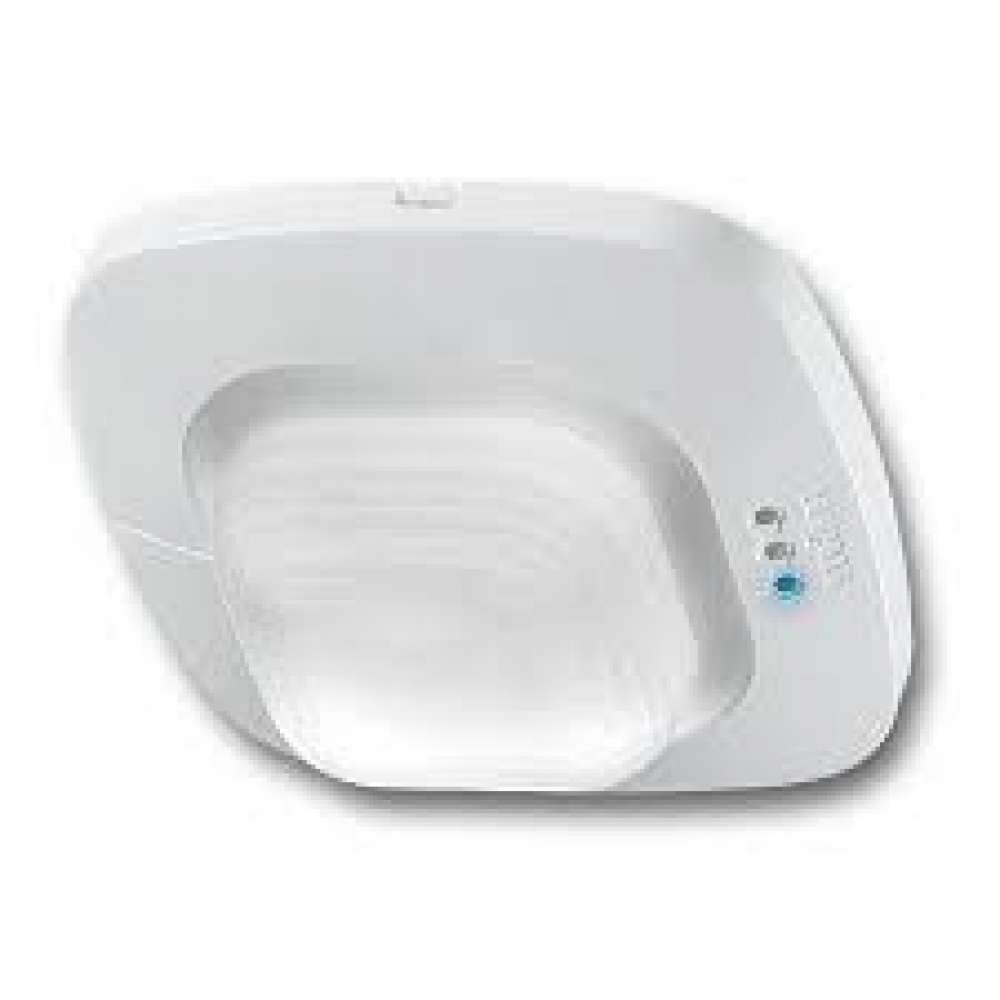

Steinel Infrared Presence Detector IR QUATTRO KNX V3.1 4007841058487

Now: AED 519.00 (Inclusive of VAT)

Qty:

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : KNX BUS
APPLICATIONS, AREA : one-person office, conference room / meeting room, duty room, recreation room, changing room, function room / ancillary room, kitchenette, Indoors
MOUNTING HEIGHT : 2,50 8,00 m
DETECTION ANGLE : 360
OUTPUT : 2000W
HS Code :
Lead Time : 2 - 4 Weeks
VIEW MORE PRODUCT DETAILS

5 year warranty
100% Guaranteed Warranty

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

IR Quattro

Squaring the circle. Infrared presence detector Presence Control PRO IR Quattro KNX for indoors, ideal for small offices, store, service and utility rooms,

washrooms and WCs, installation height up to 8 m, with digital BUS interface for controlling 4 lighting channels and HVAC, 1760 switching zones for

excellent detection quality, square presence detection zone covering 16 m2, mechanically scalable.

Specifications

BrandSTEINEL
Model NumberIR QUATTRO KNX V3.1
SENSOR TECHNOLOGY Passive Infrared
MAIN POWER SUPPLY KNX BUS
APPLICATIONS, AREA one-person office, conference room / meeting room, duty room, recreation room, changing room, function room / ancillary room, kitchenette, Indoors
MOUNTING HEIGHT 2,50 8,00 m
DETECTION ANGLE 360
OUTPUT 2000W
REACH Radial 5 x 5 m (25 m), Tangential 7 x 7 m (49 m), Presence 4 x 4 m (16 m)
INSTALLATION CEILING
TIME SETTING 30 s - 30 Min
OTHER VERSION KNX, DALI, LIVELINK, DIM,
IP RATING IP20
Part No. EAN 4007841058487
Lead Time 2 - 4 Weeks
Weight 0.50 kg
Dimensions (W, H, L ) in cm 12 x 12 x 7.1
Warranty 5 year warranty
