Steinel Infrared Motion Sensor IS 345 MX-E KNX V3.1 AP 4007841058296
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : KNX BUS
APPLICATIONS, AREA : Warehouse, Indoors
MOUNTING HEIGHT : 4 - 14 m
DETECTION ANGLE : 360°
REACH : Radial 30 x4 m, Tangential 30 x 4 m
HS Code :
Lead Time : 2 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products

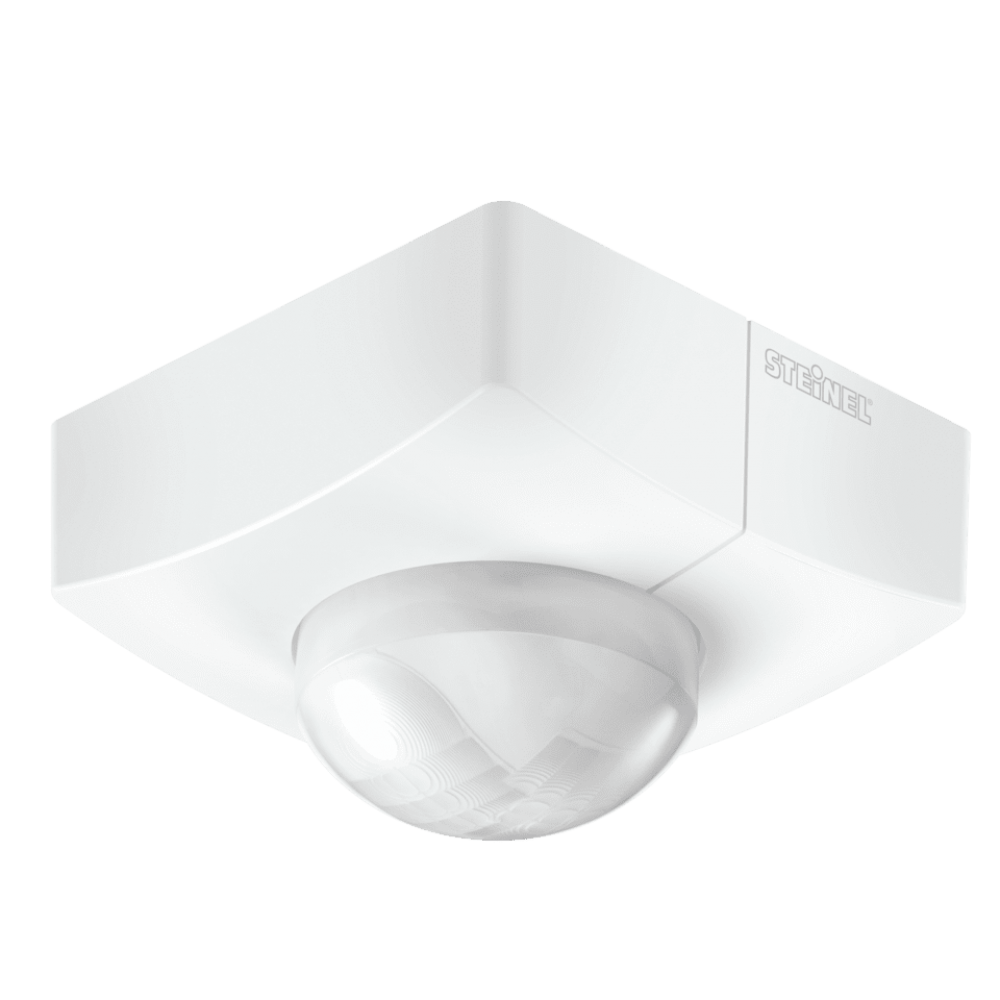

Motion Detector - IS 345 MX E KNX V3.1 AP Highbay 4007841058296

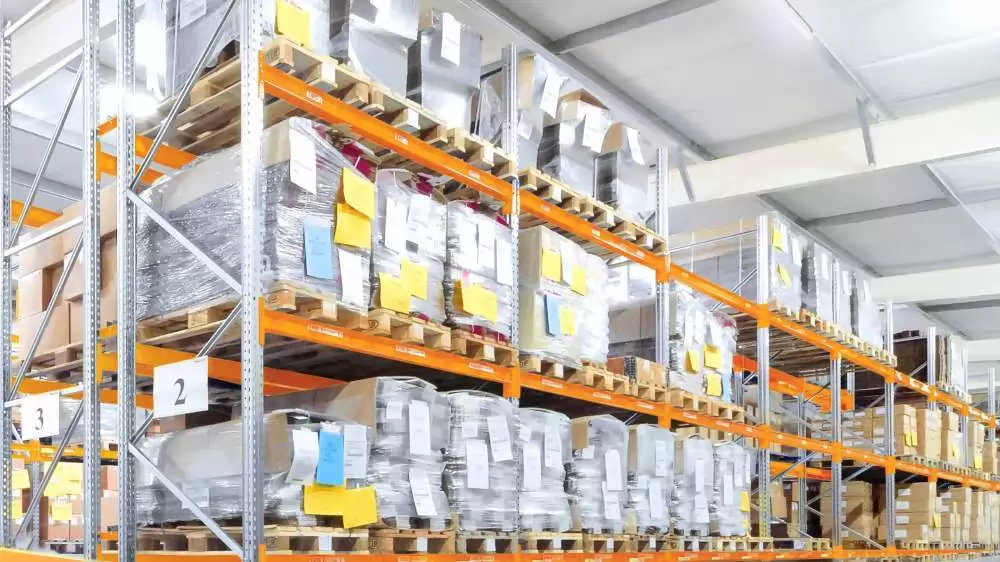

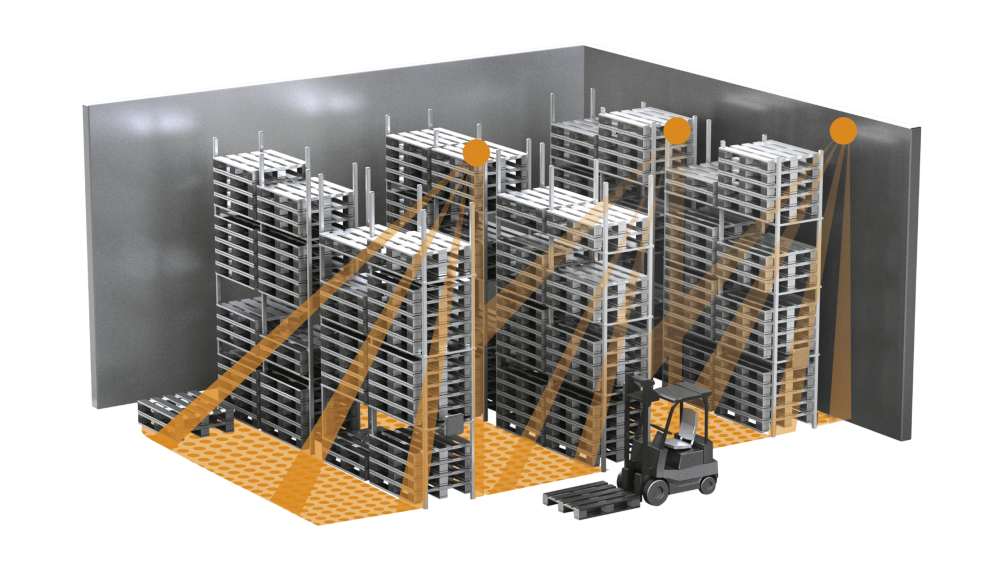

Surveillance on the highest level. Infrared motion detector IS 345 MX Highbay for indoors, ideal for large heights in depots, high-bay warehouses, machine shops, check-in areas and departure lounges, installation height 14 m, detection zone 30 x 4 m (radial), large terminal compartment for easy installation, heavy-duty relay for high switching capacity. Available as square surface-mounted and concealed version.
Specifications
| Brand | STEINEL |
| Model Number | IS 345 MX-E KNX V3.1 AP |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | KNX BUS |
| APPLICATIONS, AREA | Warehouse, Indoors |
| MOUNTING HEIGHT | 4 - 14 m |
| DETECTION ANGLE | 360° |
| REACH | Radial 30 x4 m, Tangential 30 x 4 m |
| OUTPUT | 2000W |
| TIME SETTING | 5 s - 15 Min |
| IP RATING | IP54 |
| PRODUCT WARRANTY | 5 Years |
| Part No. EAN | 4007841058296 |
| Lead Time | 2 - 4 Weeks |
| Warranty | 5 year warranty |
