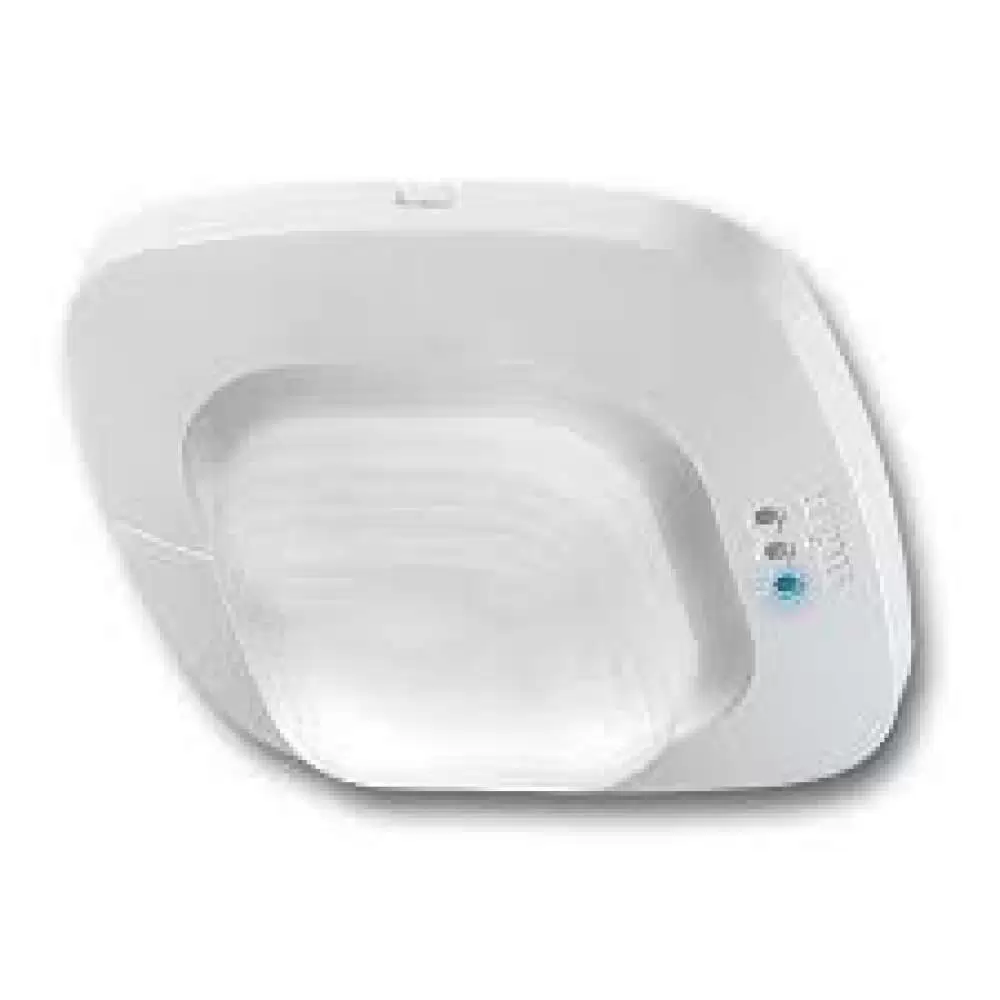

Steinel Infrared Presence Detector IR QUATTRO KNX V3.1 4007841058487
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : KNX BUS
APPLICATIONS, AREA : one-person office, conference room / meeting room, duty room, recreation room, changing room, function room / ancillary room, kitchenette, Indoors
MOUNTING HEIGHT : 2,50 – 8,00 m
DETECTION ANGLE : 360°
OUTPUT : 2000W
HS Code :
Lead Time : 2 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
IR Quattro
Squaring the circle. Infrared presence detector Presence Control PRO IR Quattro KNX for indoors, ideal for small offices, store, service and utility rooms,
washrooms and WCs, installation height up to 8 m, with digital BUS interface for controlling 4 lighting channels and HVAC, 1760 switching zones for
excellent detection quality, square presence detection zone covering 16 m2, mechanically scalable.
Specifications
| Brand | STEINEL |
| Model Number | IR QUATTRO KNX V3.1 |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | KNX BUS |
| APPLICATIONS, AREA | one-person office, conference room / meeting room, duty room, recreation room, changing room, function room / ancillary room, kitchenette, Indoors |
| MOUNTING HEIGHT | 2,50 – 8,00 m |
| DETECTION ANGLE | 360° |
| OUTPUT | 2000W |
| REACH | Radial 5 x 5 m (25 m²), Tangential 7 x 7 m (49 m²), Presence 4 x 4 m (16 m²) |
| INSTALLATION | CEILING |
| TIME SETTING | 30 s - 30 Min |
| OTHER VERSION | KNX, DALI, LIVELINK, DIM, |
| IP RATING | IP20 |
| Part No. EAN | 4007841058487 |
| Lead Time | 2 - 4 Weeks |
| Warranty | 5 year warranty |
