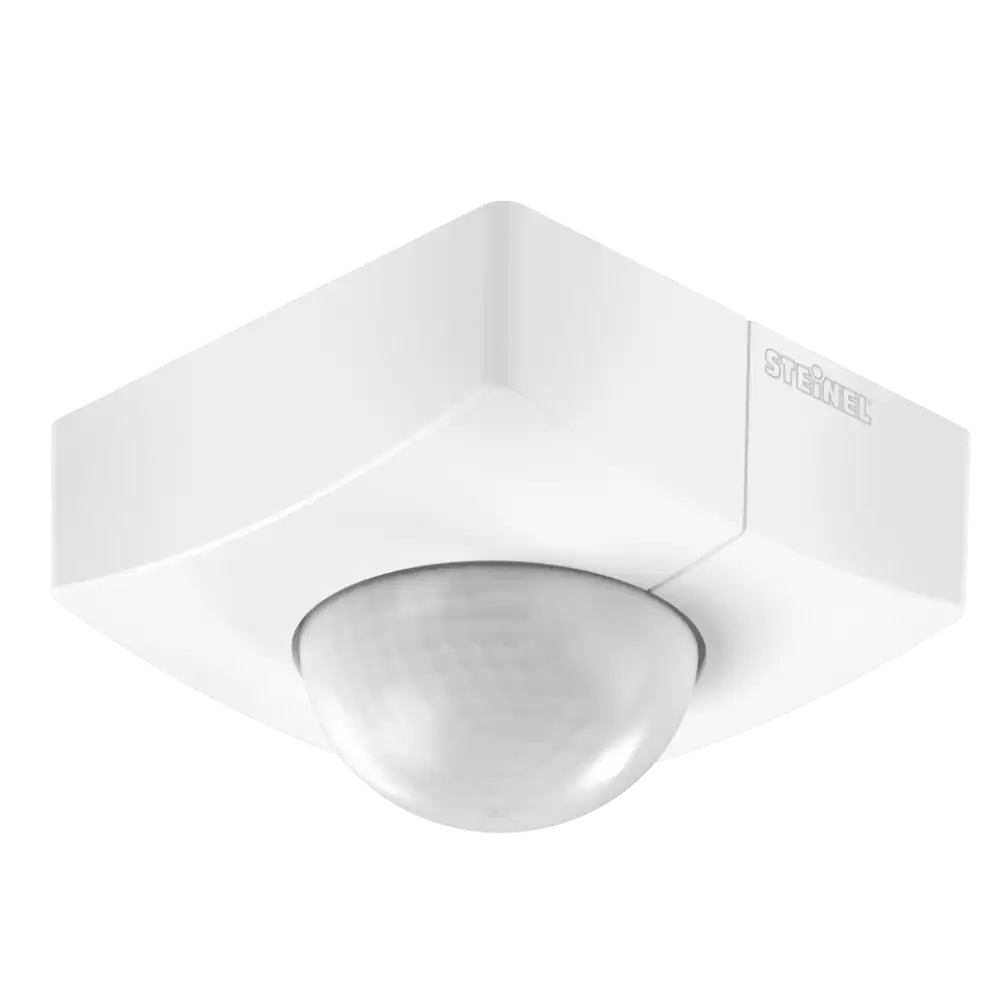

Steinel Infrared Motion Sensor IS 345-E KNX V3.1 AP 4007841058258 WHITE
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : KNX BUS
APPLICATIONS, AREA : Corridor / aisle / multi-story / underground car park, outdoor, indoors
MOUNTING HEIGHT : 2.50 m - 5.00 m
DETECTION ANGLE : 360°
REACH : 23 x 6 m
HS Code :
Lead Time : 2 - 4 Weeks
Huge reach. Infrared motion detector IS 345 for indoors and out :
ideal for passageways :
corridors and commonly used spaces :
installation height 5 m :
detection zone 12 x 6 m (radial) and 23 x 6 m (tangential) :
large terminal compartment for easy installation :
heavy-duty relay for high switching capacity. Available either in round or square surface-mounted and concealed version.

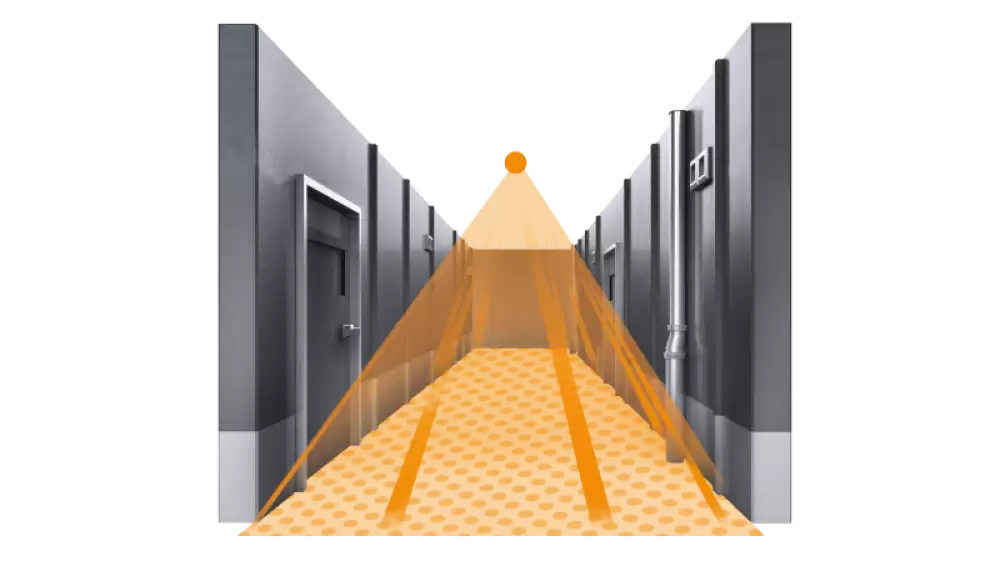

Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow :
but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again :
the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.
:
VIEW MORE PRODUCT DETAILS
Related Products
Infrared motion detector IS 345 KNX
Huge reach. Infrared motion detector IS 345 for indoors and out, ideal for passageways, corridors and commonly used spaces, installation height 5 m, detection zone 12 x 6 m (radial) and 23 x 6 m (tangential), large terminal compartment for easy installation, heavy-duty relay for high switching capacity. Available either in round or square surface-mounted and concealed version.
Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow, but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again, the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially.
Specifications
| Brand | STEINEL |
| Model Number | IS 345-E KNX V3.1 AP |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | KNX BUS |
| APPLICATIONS, AREA | Corridor / aisle / multi-story / underground car park, outdoor, indoors |
| MOUNTING HEIGHT | 2.50 m - 5.00 m |
| DETECTION ANGLE | 360° |
| REACH | 23 x 6 m |
| OUTPUT | 2000W |
| TIME SETTING | 5 s - 15 Min |
| IP RATING | IP54 |
| PRODUCT WARRANTY | 5 Years |
| Part No. EAN | 4007841058258 |
| Lead Time | 2 - 4 Weeks |
| Huge reach. Infrared motion detector IS 345 for indoors and out |
|
| ideal for passageways |
|
| corridors and commonly used spaces |
|
| installation height 5 m |
|
| detection zone 12 x 6 m (radial) and 23 x 6 m (tangential) |
|
| large terminal compartment for easy installation |
|
| heavy-duty relay for high switching capacity. Available either in round or square surface-mounted and concealed version. Aisles and long corridors place special demands on sensor performance. The detection area of the sensor must be narrow |
|
| but long. Only in this way can the fewest possible sensors cover sections of the greatest possible length. Tried and proven over and over again |
|
| the IS 345 is the specialist for indoor applications of this type. It is specially designed for detection in corridors and has an angle of aperture of 45°. This means that it can watch over an area of up to 23 x 6 metres tangentially. |
|
| Warranty | 5 year warranty |
