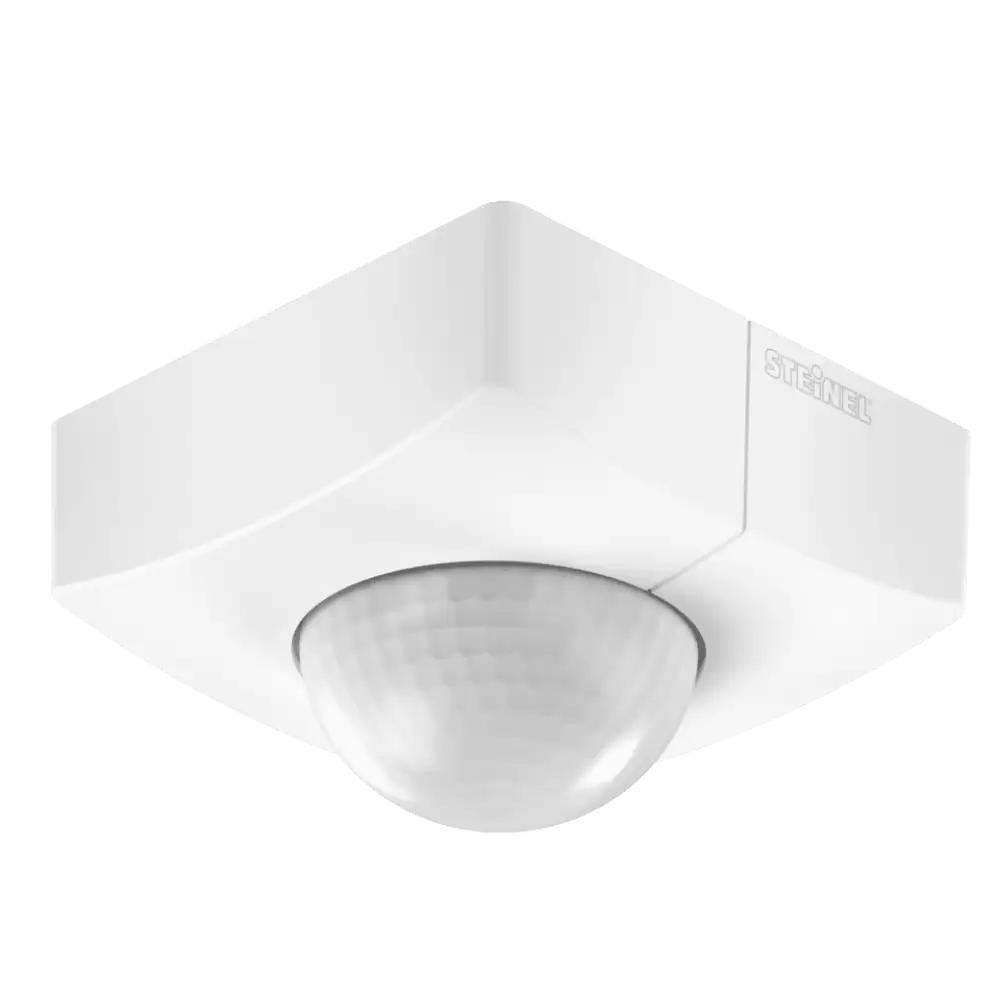

Steinel Infrared Motion Sensor IS 3360 MX-E KNX V3.1 AP 4007841058364
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : MOTION DETECTOR
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : KNX BUS
APPLICATIONS, AREA : high-bay warehouse, sports hall, Indoors
MOUNTING HEIGHT : 4 - 14 m
DETECTION ANGLE : 360°
HS Code :
Lead Time : 2 - 4 Week
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD PART NUMBER WAS 15EGSA
KDK, VENTILATING FAN, WALL MOUNT TYPE, 6.2W, BATHROOM TYPE, ...AED 335.00
Motion Detector IS 3360 MX Highbay V3 KNX
A head for heights. Powerful reach. Reliable. IS 3360 MX Highbay motion detector – ideal for high ceilings in industrial buildings or commercial properties. For mounting heights of up to 14 m. High-precision 360° infrared sensor. Maximum reach: 18 m. For watching over up to 1000 sq.m. Available as square surface-mounted and concealed version.
Specifications
| Brand | STEINEL |
| Model Number | IS 3360 MX Highbay COM1 KNX V3.1 |
| SENSOR TYPE | MOTION DETECTOR |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | KNX BUS |
| APPLICATIONS, AREA | high-bay warehouse, sports hall, Indoors |
| MOUNTING HEIGHT | 4 - 14 m |
| DETECTION ANGLE | 360° |
| OUTPUT | 2000W |
| REACH | Radial Ø 14 m (154 m²), Tangential Ø 36 m (1018 m² |
| INSTALLATION | CEILING |
| TIME SETTING | 5 s - 15 Min |
| OTHER VERSION | KNX, DALI, LIVELINK, DIM, |
| IP RATING | IP54 |
| Part No. EAN | 4007841058364 |
| Lead Time | 2 - 4 Week |
| Warranty | 5 year warranty |
