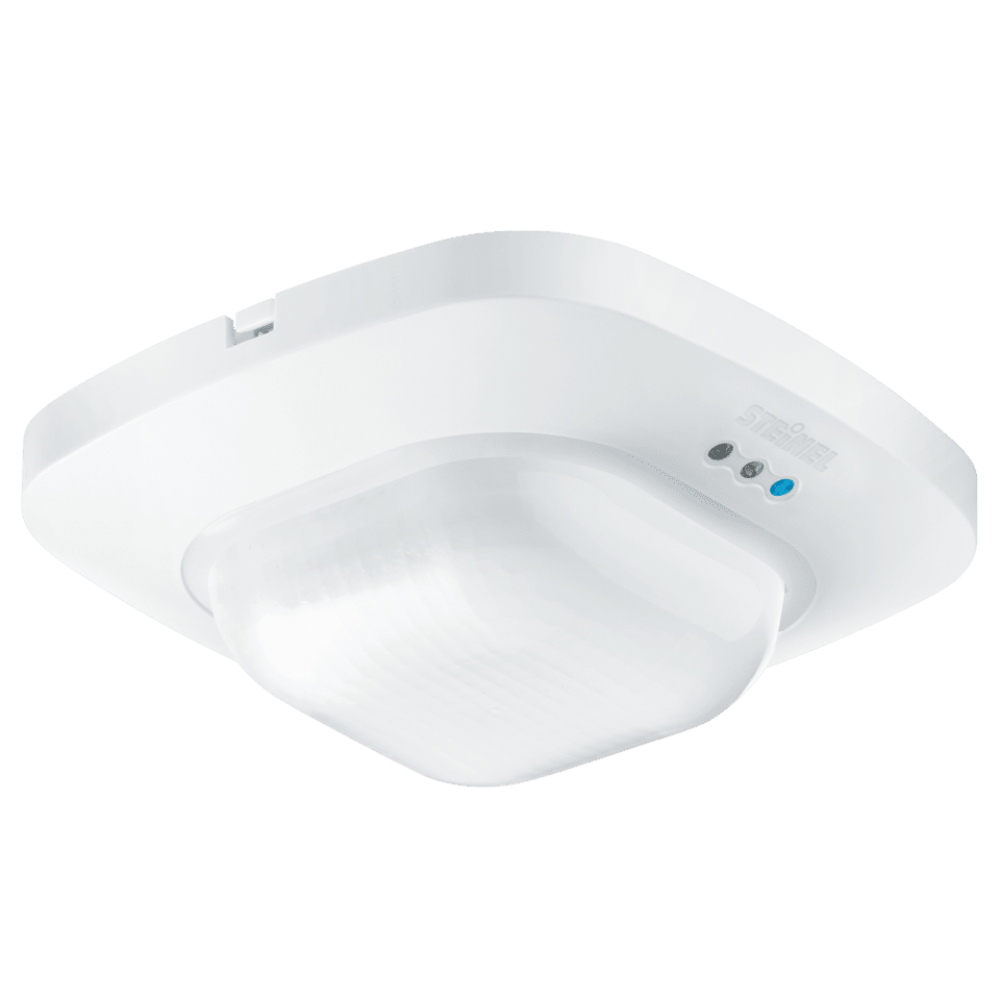

Steinel Infrared Presence Detector IR QUATTRO HD KNX V3.1 4007841058470
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : KNX BUS
APPLICATIONS, AREA : classroom, lecture hall, open-plan office, high-bay warehouse, production facilities, conference room / meeting room, duty room, recreation room, changing room, sports hall, reception / lobby
MOUNTING HEIGHT : 2,50 – 10,00 m
DETECTION ANGLE : 360°
OUTPUT : 2000W
HS Code :
Lead Time : 2 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD MODEL WAS 30 AUHT
KDK, VENTILATING FAN, WALL MOUNT TYPE, 28W, SILENT STREAM FA...AED 325.00
IR QUATTRO HD KNX V3.1
Detection no finer! Infrared presence detector Presence Control PRO IR Quattro HD KNX for indoors, ideal for medium to large-size offices,
conference and meeting rooms, classrooms and lecture theatres, sports halls and warehouses, installation height up to 10 m, with digital BUS
interface for controlling 4 lighting channels and HVAC, 4800 switching zones for the ultimate in detection quality, presence detection over a true 64
m2, square detection zone, mechanically scalable.
Fits on the ceiling. And sees what others dream of.

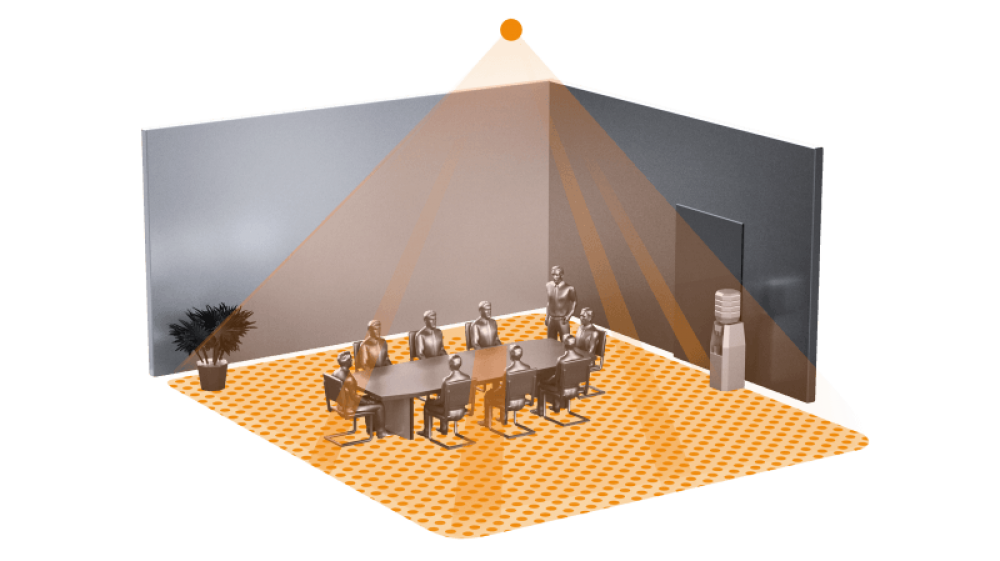

HD isn't just restricted to televisions but from now on also used in presence detectors. Because IR Quattro HD provides extremely high-definition detection. 4,800 switching zones and a square detection footprint with a presence zone covering a true 64 m² leave no margin whatsoever for inadvertent triggering and blind spots. Unique: The presence zone can be mechanically scaled without the slightest loss of quality. This means IR Quattro HD applications in medium to large-size offices, conference and meeting rooms, class rooms and lecture theatres as well as sports halls and warehouses can be planned and configured with absolute precision. Something others can only dream of.
Specifications
| Brand | STEINEL |
| Model Number | IR QUATTRO HD KNX V3.1 |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | KNX BUS |
| APPLICATIONS, AREA | classroom, lecture hall, open-plan office, high-bay warehouse, production facilities, conference room / meeting room, duty room, recreation room, changing room, sports hall, reception / lobby |
| MOUNTING HEIGHT | 2,50 – 10,00 m |
| DETECTION ANGLE | 360° |
| OUTPUT | 2000W |
| REACH | Radial 8 x 8 m (64 m²), Tangential 20 x 20 m (400 m²), Presence 8 x 8 m (64 m²) |
| INSTALLATION | CEILING |
| TIME SETTING | 30 s - 30 Min |
| OTHER VERSION | KNX, DALI, LIVELINK, DIM, |
| IP RATING | IP20 |
| Part No. EAN | 4007841058470 |
| Lead Time | 2 - 4 Weeks |
|
| |
| Warranty | 5 year warranty |
