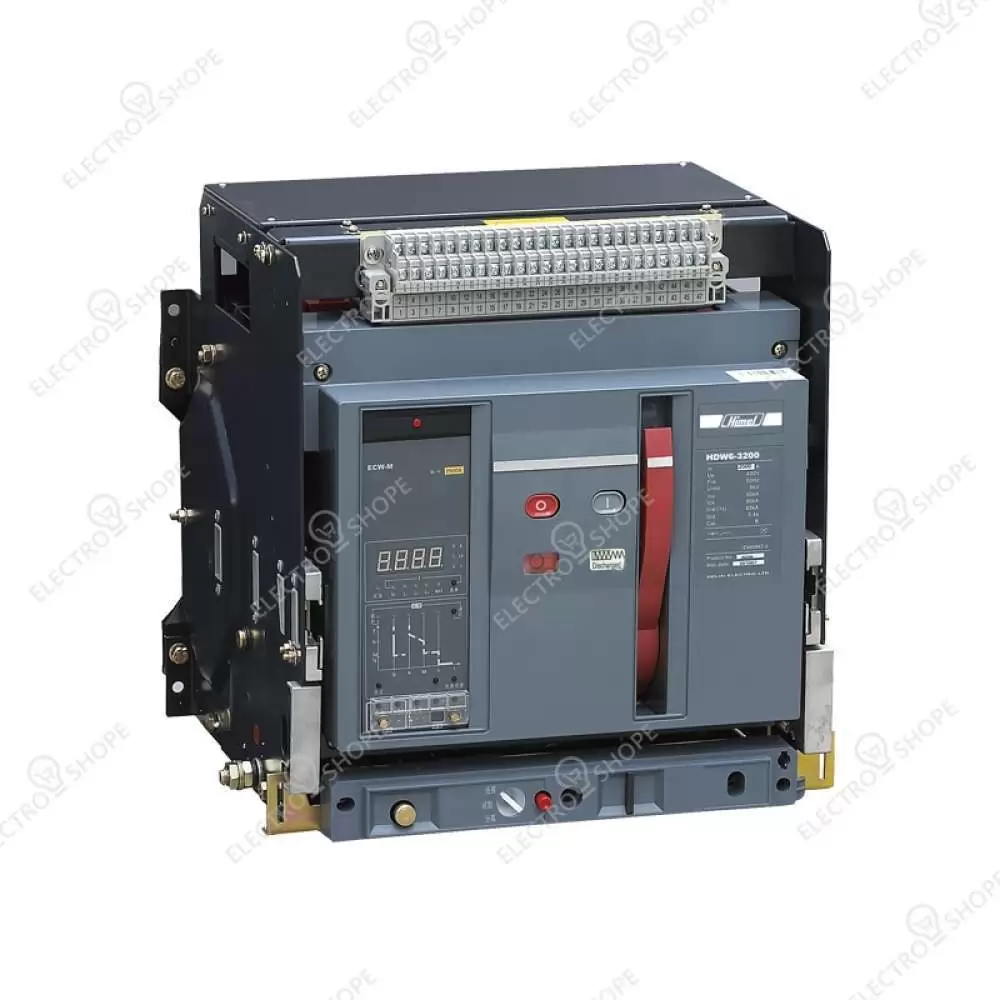

HIMEL AIR CIRCUIT BREAKERS 2500A 3P 80kA Fixed AC230V Trip Unit LSI 5NO 5NC, HDW632253FH5556M
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
NUMBER OF POLES : 3P
CURRENT RATING : 2500A
BREAKING CAPACITY : 80 kA
BREAKER TYPE : FIXED
RATED FREQUENCY : 50/60 Hz
PRODUCT WARRANTY : 12 MONTHS
HS Code : 8536 2000
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS
Related Products
Product or component type |
ACB |
Standard |
IEC/EN 60947-2 |
Number of poles |
3P & 4P |
Accessories |
Undervoltage release, Shunt release, Closing release, Auxiliary contacts, Motor mechanism, Mechanical interlock, Electronic trip unit |
Type |
Draw-out and Fixed |
Certificate |
Kema, CE |
Available rating |
600A ~ 6300A |
Warranty period |
24 months |
Specifications
| Brand | HIMEL |
| Model Number | HDW632253FH5556M |
| NUMBER OF POLES | 3P |
| CURRENT RATING | 2500A |
| BREAKING CAPACITY | 80 kA |
| BREAKER TYPE | FIXED |
| RATED FREQUENCY | 50/60 Hz |
| PRODUCT WARRANTY | 12 MONTHS |
| Lead Time | 2-4 WORKING DAYS |
