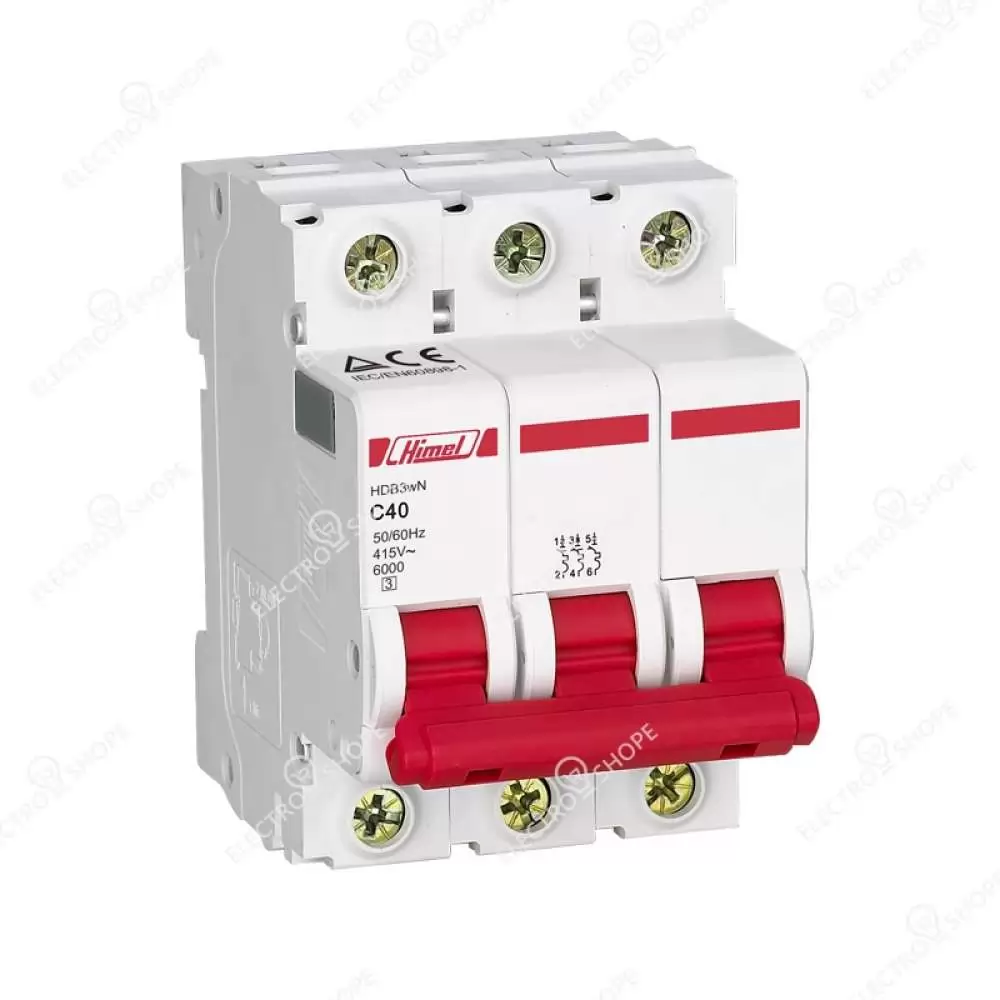

HIMEL 3 SERIES MCB TP 6A 6kA HDB3wN3C650D
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
NUMBER OF POLES : 3P
CURRENT RATING : 6A
TRIPPING CHARACTERISTICS : C CURVE
MOUNTING : DIN RAIL
SUPPLY VOLTAGE : 380 - 415 VAC
BREAKING CAPACITY : 6 kA
HS Code : 8536 2000
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS
Related Products
Product or component type |
MCB |
Standard |
IEC/EN60898-1 |
Number of Poles |
1P, 2P, 3P & 4P |
Function |
Short Circuit & Overload Protection, Control & Isolation |
Installation |
Din Mounted |
Breaking Capacity |
3, 4.5, 6 & 10kA |
Tripping |
Thermal Magnetic type |
Warranty period |
24 months |
Specifications
| Brand | HIMEL |
| Model Number | HDB3wN3C650D |
| NUMBER OF POLES | 3P |
| CURRENT RATING | 6A |
| TRIPPING CHARACTERISTICS | C CURVE |
| MOUNTING | DIN RAIL |
| SUPPLY VOLTAGE | 380 - 415 VAC |
| BREAKING CAPACITY | 6 kA |
| OPERATING TEMPERATURE | -10°C to 55°C |
| RATED FREQUENCY | 50/60 Hz |
| PRODUCT WARRANTY | 12 MONTHS |
| Lead Time | 2-4 WORKING DAYS |
