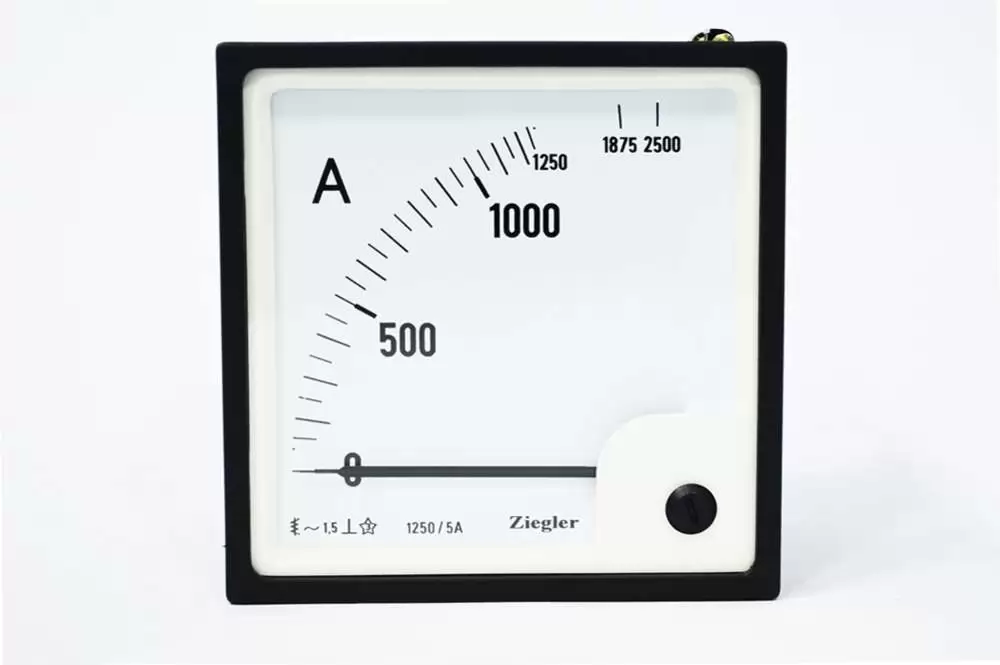

ZIEGLER AMMETER EQ96 1250/5A x2 IP52 90DEG CL-1.5, DE 96A 1250
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
CUT OUT SIZE : 96mm
SCALE VALUE : 1250A
SECONDARY CURRENT : 5A
CURRENT TYPE : AC
METER ACCURACY : CLASS 1.5
PRODUCT WARRANTY : 12 MONTHS
HS Code : 9030 3310
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS
Related Products
| Product or Component Type | Analogue measuring instruments |
| Standard | IEC 61326 |
| Application | Display network current rating |
| Product Features | Robust case with classic finish Convenient housing for easy mounting Self lifting terminal clamps Interchangeable scales Standard IP20 back cover |
| Frequency Range | 45-65 Hz |
| Pollution Degree | 2 |
| Ambient Temperature | -25°C ~ +70°C |
| Mounting | Panel mounting |
| Warranty | 12 Months |
Specifications
| Brand | ZIEGLER |
| Model Number | DE 96A 1250 |
| CUT OUT SIZE | 96mm |
| SCALE VALUE | 1250A |
| SECONDARY CURRENT | 5A |
| CURRENT TYPE | AC |
| METER ACCURACY | CLASS 1.5 |
| PRODUCT WARRANTY | 12 MONTHS |
| Lead Time | 2-4 WORKING DAYS |
