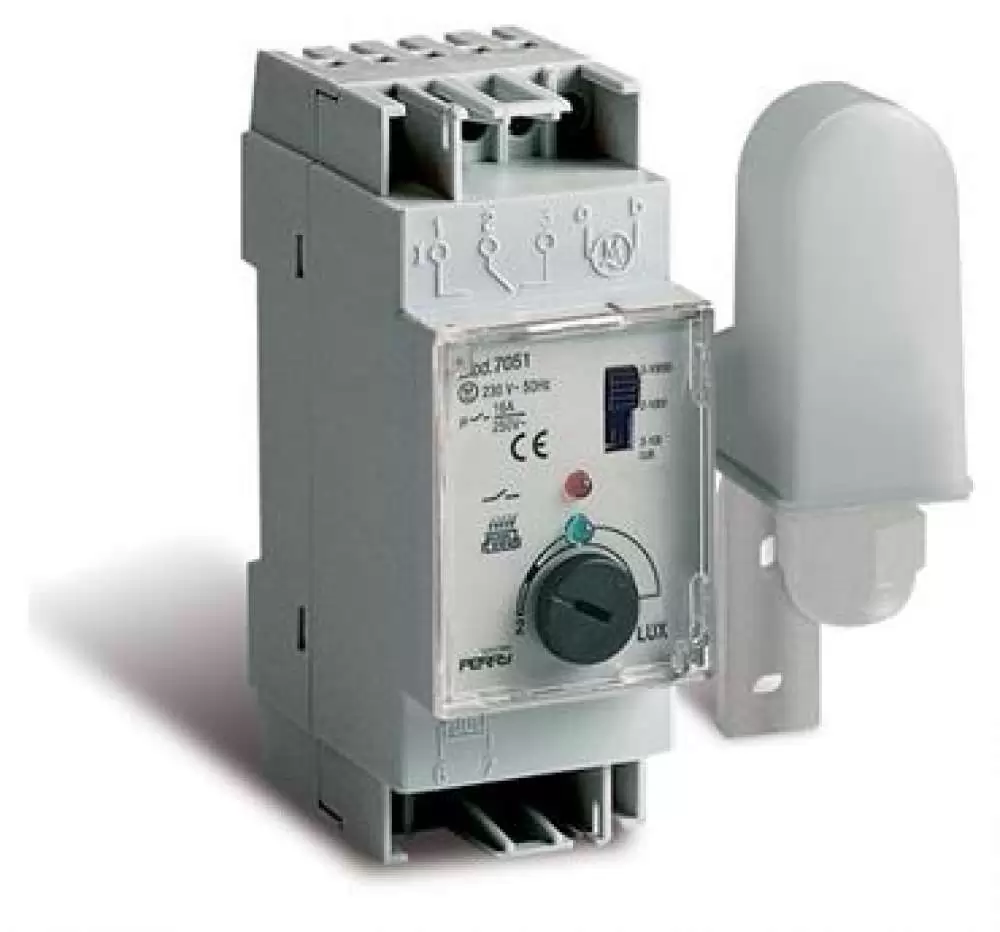

Perry Electric Photocell lighting Control with Sensor 1IC 7051
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : PHOTO-CELL CONTROLLER
MAIN POWER SUPPLY : 230V AC
IP RATING : IP65
Part No. EAN : 1IC 7051
MAXIMUM LOAD : 16A
HS Code :
Lead Time : 5-7 Days
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD PART NUMBER WAS 15EGSA
KDK, VENTILATING FAN, WALL MOUNT TYPE, 6.2W, BATHROOM TYPE, ...AED 335.00
perry 1IC 7051
Photocell lighting control switch with adjustment 2-10.000Lux, 2 DIN
It allows progressively lighting street tunnels
TECHNICAL SPECIFICATIONS
- Power supply 230V a.c. 50 / 60Hz DIN assembly plus outdoor probe
- Output 1 changeover contact, potential-free:
- 16 (2) A / 250V a.c.
- Connection with cables up to 2.5 mm2
- Adjustment range 2-100 / 2-1000 /
- 2-10.000 Lux (3 scales)
- Activation delay 8 sec ± 10%
- Deactivation delay 38 sec ± 10%
- Threshold calibration signalling LED
- Operation signalling LED Intervention threshold
- adjustment trimmer

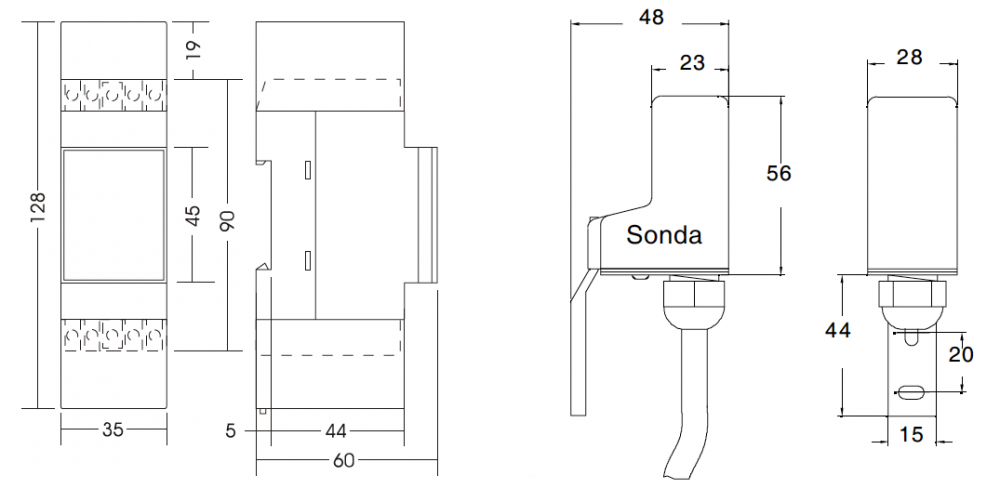

- Dimensions DIN (L x W x H) 35 x 60 x 90 mm

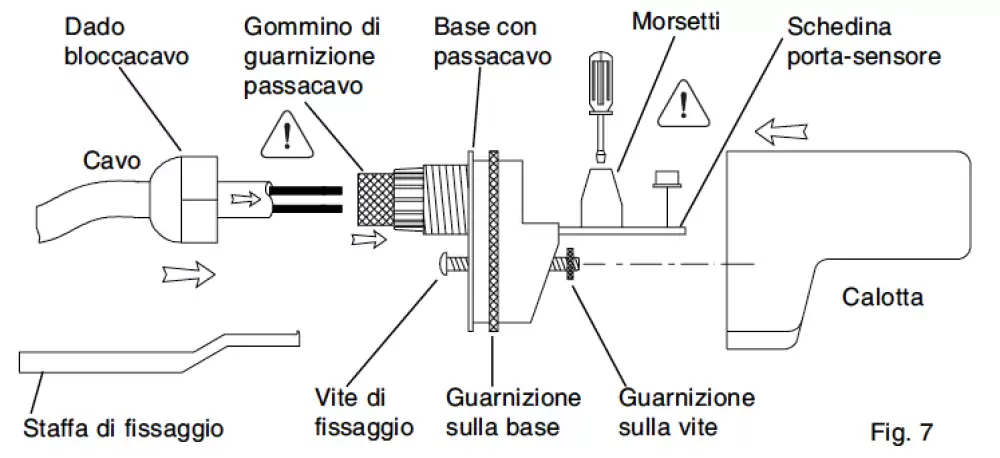

- EXTERNAL PROBE
- Anti-UV opaline housing
- Protection degree IP 65
- Dimensions of the probe (L x W x H) 28 x 48 x 56 mm
Specifications
| Brand | PERRY ELECTRIC |
| Model Number | Perry Electric 1IC 7051 |
| SENSOR TYPE | PHOTO-CELL CONTROLLER |
| MAIN POWER SUPPLY | 230V AC |
| IP RATING | IP65 |
| Part No. EAN | 1IC 7051 |
| MAXIMUM LOAD | 16A |
| Lead Time | 5-7 Days |
| Warranty | 1 year warranty |
