LUMEL Temperature Controller PID, 1 Output, Programmable input RE70 00E0

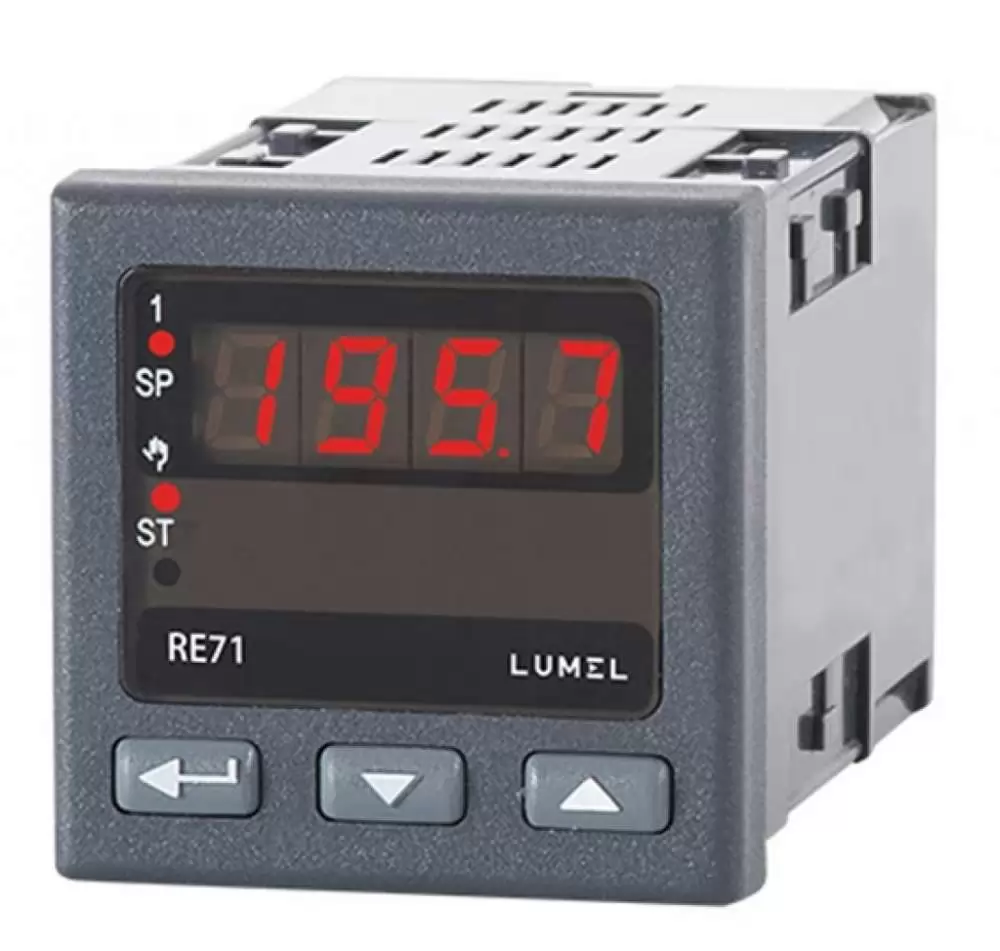

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
OUTPUT TYPE : RELAY
SUPPLY VOLTAGE : 230 V ac
SIZE : 48 X 48 X 93 Mm
NUMBER OF OUTPUTS : 1
MINIMUM TEMPERATURE SETTING : 0C
MAXIMUM TEMPERATURE SETTING : +50C
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Lumels RE70 00E0 model PID Temperature Controller is a digital controller specifically designed for implementation in systems used to control temperature parameters in furnaces, dryers, injection moulding machines whilst still suitable for other less specific applications.
Featuring basic on/off control as well as PID control, the RE70 00E0 can utilise the PID auto-tune function for fast and reliable commissioning and if a system needs to be restarted, reset or altered, recommissioning the unit is an easy and smooth procedure.
The RE70 00E0s universal input allows for both RTD and TC sensors for versatility in application. This versatility allows this temperature controller to be best utilised with the most appropriate sensor for the system. With the ability to control -200C systems right through to 1767C applications, the specifically designed controller is most suited for most extreme systems such as heating furnaces, moulding machines and dryers there higher temperatures and require more extreme temperature control.
Suitable for use in wet zones, the RE70 has an IP65 rated facia to protect from both dust and water spray from all directions whereas the controllers body is IP20, giving not protecting from water or excessive dust. Mounting this controller in a sealed unit via a standard 48 x 48 mm cut out provides both easy and safe use in any application.
Features and Benefits
Universal input for RTD & TC sensors
Single Relay output
ON/OFF Control function
PID with auto-tuning
Manual operating mode
Manual setting of PID parameters or by means of the auto adaptation
230V supply voltage
48 x 48 x 93 mm unit
IP65 facia
Specifications
Brand | LUMEL |
Model Number | LUMEL RE70 00E0 |
OUTPUT TYPE | RELAY |
SUPPLY VOLTAGE | 230 V ac |
SIZE | 48 X 48 X 93 Mm |
NUMBER OF OUTPUTS | 1 |
MINIMUM TEMPERATURE SETTING | 0C |
MAXIMUM TEMPERATURE SETTING | +50C |
TEMPERATURE RANGE | -200 ? +850 (PT100) C, -200 ? +850 (PT1000) C, -50 ? +1200 (Type J Thermocouple) C, -50 ? +1300 (Type N Thermocouple) C, -50 ? +1372 (Type K Thermocouple) C, -50 ? +400 (Type T Thermocou |
DISPLAY | LED |
IP RATING | IP20, IP65 |
MOUNTING TYPE | PANEL MOUNT |
INPUT TYPE | -200 ? +850 (PT1000), -50 ? +1200 (Type J Thermocouple), -50 ? +1300 (Type N Thermocouple), -50 ? +1372 (Type K Thermocouple), -50 ? +400 (Type T Thermocouple), 0 ? +1767 (Type B Thermocouple |
Lead Time | 3 - 4 Weeks |
Weight | 0.25 kg |
Dimensions (W, H, L ) in cm | 4.8 x 9.3 x 4.8 |
Warranty | 2 year warranty |
