LUMEL Temperature Controller, PID 2 Output, Programmable/RS-485 Modbus RE72
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
OUTPUT TYPE : CURRENT, VOLTAGE
SUPPLY VOLTAGE : 85 → 253 V AC/DC
SIZE : 48 X 48 X 93 Mm
NUMBER OF OUTPUTS : 2
MINIMUM TEMPERATURE SETTING : 0°C
MAXIMUM TEMPERATURE SETTING : +50°C
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products

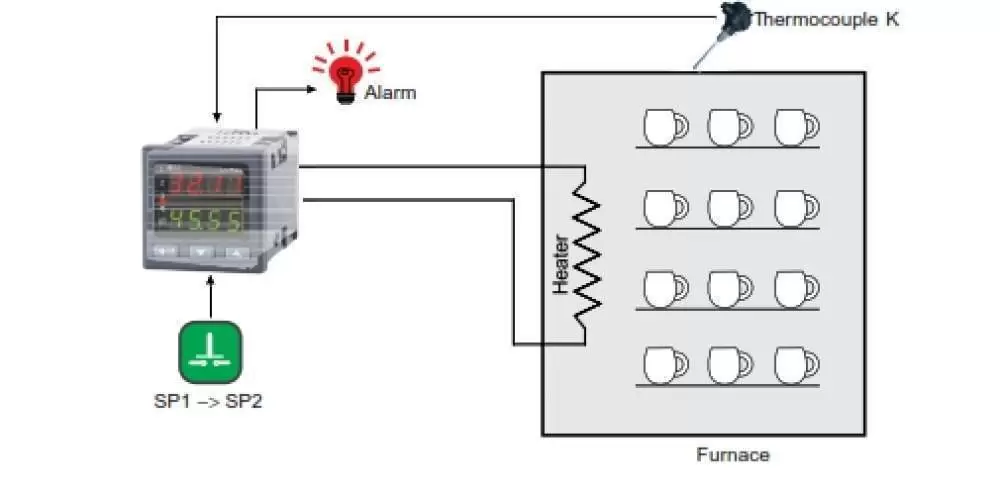

The Lumel RE72 series temperature controller has a supply voltage ranging from 85VAC/DC to 253VAC/DC. This controller has a width of 48mm and a height of 48mm. It provides two output of continuous current that is 0V to 10V and single binary input. This controller is used when the stabilization of temperature changes is necessary.
Features and Benefits
- Universal measuring input.
- Binary input control.
- Set point value: fi xed value, programmed or from an additi onal input.

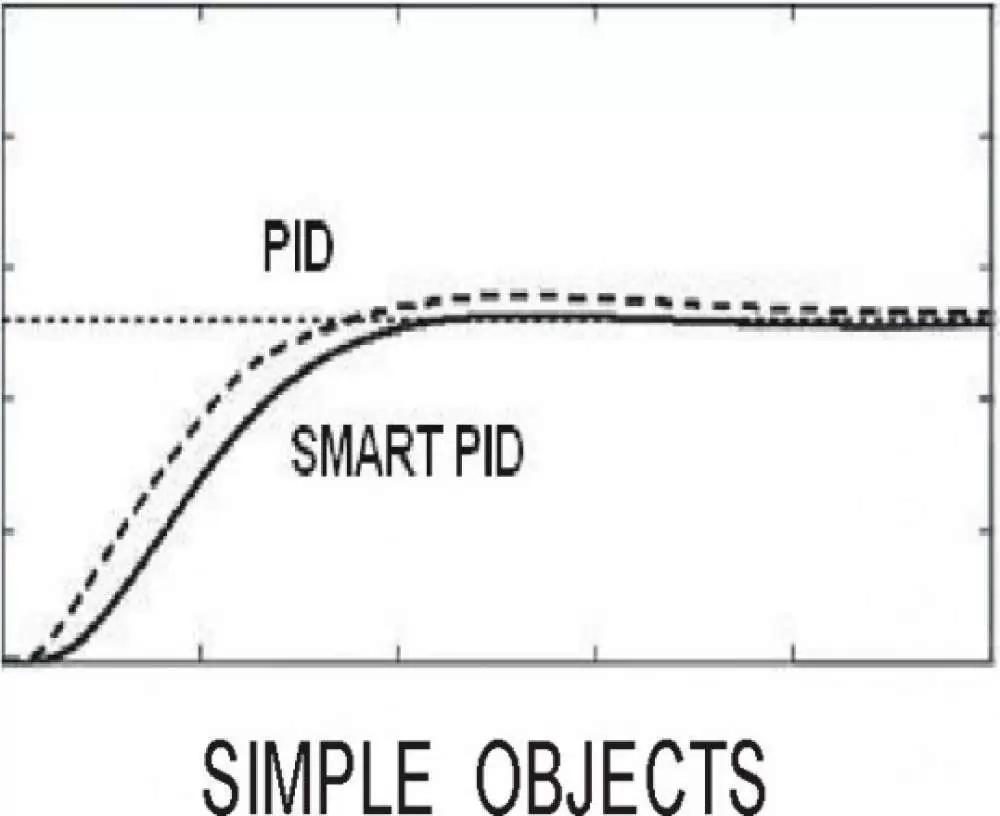

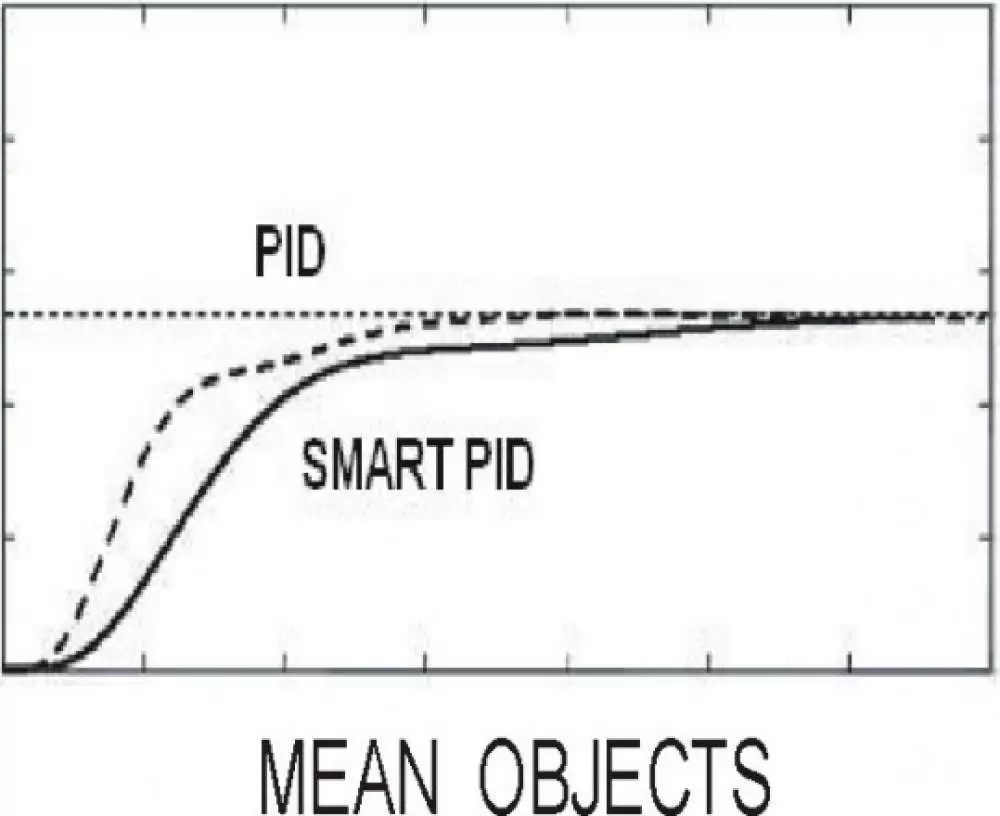

- On/off , PID, PID step-by-step control (valve control) or PID of heati ng-cooling type.
- Soft start.
- 8 types of alarms.
- Functi on of bistable alarm (LATCH).
- Timer functi on.
- Measurement of heater current and heater burning
- control or short-circuit of the control element (e.g. SSR).
Applications
Dehydration industries
Food
Plastics
Certifications
IP65 rated
Additional optional accessories (not included with this kit, to be ordered separately)
| Analog output @ Dhs.127.00 each |
| Logic input @ Dhs. 47.00 each |
| Third output (relay) @ Dhs.47.00 each |
| Supplying output (24Vdc) @ Dhs.127.00 each |
| Additional input - analog or CT input @ Dhs.127.00 each |
| Supply 20...40V ac/dc @ Dhs.127.00 each |
Specifications
| Brand | LUMEL |
| Model Number | LUMEL RE72 |
| OUTPUT TYPE | CURRENT, VOLTAGE |
| SUPPLY VOLTAGE | 85 → 253 V AC/DC |
| SIZE | 48 X 48 X 93 Mm |
| NUMBER OF OUTPUTS | 2 |
| MINIMUM TEMPERATURE SETTING | 0°C |
| MAXIMUM TEMPERATURE SETTING | +50°C |
| TEMPERATURE RANGE | -200 → +850 (PT100) °C, -200 → +850 (PT1000) °C, -100 → +1000 (Type E Thermocouple) °C, -100 → +1200 (Type J Thermocouple) °C, -100 → +1300 (Type N Thermocouple) °C, -100 → +1372 (Type K Ther |
| COMMUNICATION PORT AVAILABLE | YES |
| DISPLAY TYPE | DIGITAL |
| IP RATING | IP20, IP65 |
| MOUNTING TYPE | PANEL MOUNT |
| INPUT TYPE | PT100, PT1000, Type B Thermocouple, Type E Thermocouple, Type J Thermocouple, Type K Thermocouple, Type L Thermocouple, Type N Thermocouple, Type R Thermocouple, Type S Thermocouple, Type T T |
| Lead Time | 3 - 4 Weeks |
| Warranty | 2 year warranty |
