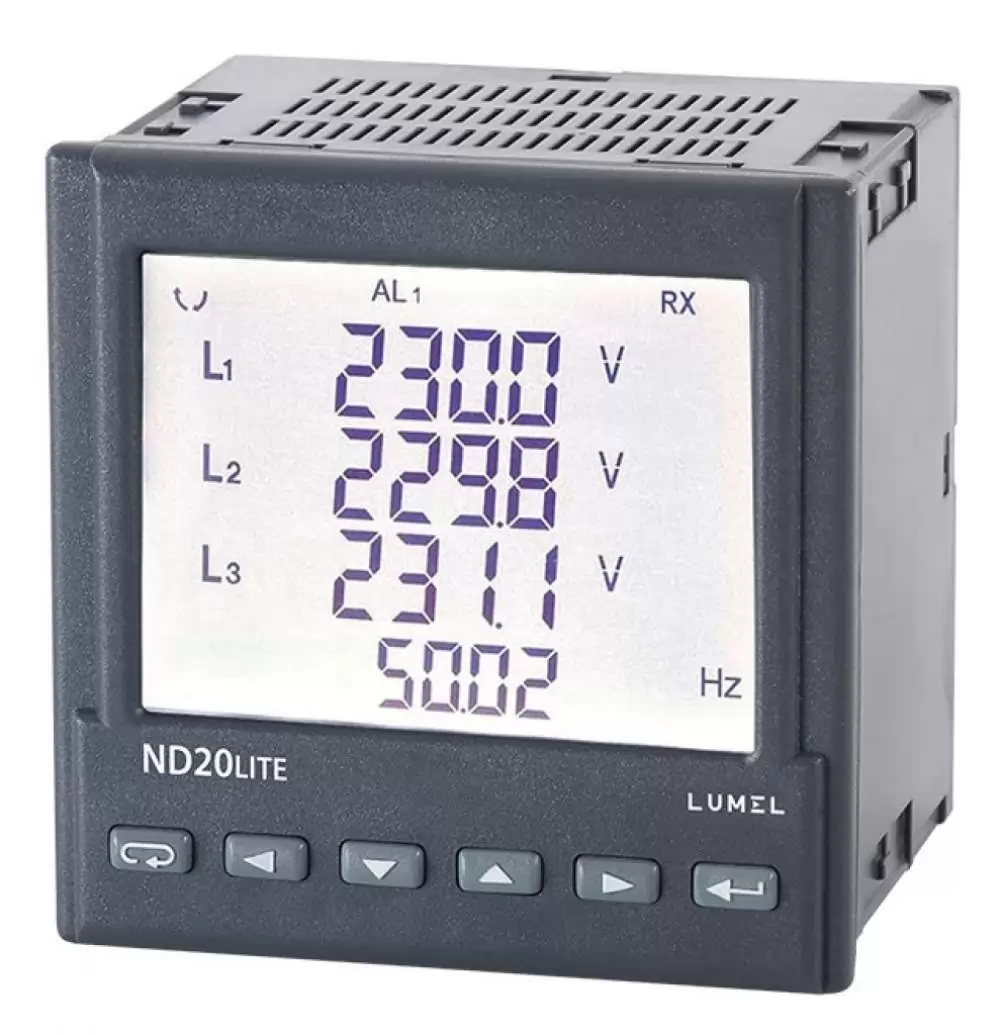

LUMEL LED Digital 3-Phase Power Network Analyzer 1-ph3-ph, LCD Display, LCD Inp.1/5A,3X57..400V, IP65 with RS-485 ND20LITE
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PARAMETERS MEASURED : POWER & ENERGY
TYPE : DIGITAL
DISPLAY TYPE : LED
HS Code : 9030 3310
Lead Time : 2-4 Days
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD PART NUMBER VIPS 80L
VERITEK, POWER ANALYZER, LCD DISPLAY, CLASS 0.5, 90-270V AC/...AED 175.00 -
OLD PART NUMBER LM1360
ZIEGLER, DIGITAL MULTIFUNCTION METER, 3 PHASE, CLASS 0.2s, I...AED 425.00 -
OLD PART NUMBER LM1360
ZIEGLER POWER ANALYZER, 3 Phase, IP Current CT-1A5A, IP Vol...AED 375.00 -
OLD MODEL NUMBER MFM3430
ZIEGLER, DIGITAL MULTIFUNCTION METER, 3 PHASE, I/P: 100-600V...AED 495.00
The meter ND20LITE is distinguished by a high measurement accuracy, legible backlit LCD display and an attractive price in relation to offered measuring functions. It is the ideal tool to control and monitor energy quality parameters and energy consumption in all industry branches, public utilities or in public service buildings.
- • Measurement of power network parameters in 2,3 or 4- wire balanced and unbalanced systems.
- • High accuracy class.
- • Indications considering values of programmed ratios.
- • THD.
- • Backlit LCD 3.5” screen.
- • Protection grade from the frontal side: IP65.
- • Digital transmission to the master system through the
- RS-485 interface (MODBUS).
- • Configurable alarm and pulse outputs (energy).
- • Configurati on of displayed pages.
- measurement of:
- power network parameters in 4- wire balanced and unbalanced systems,
- THD factors for currents and voltage
- high accuracy class,
- indications considering values of programmed ratios,
- backlit LCD 3.5” screen,
- protection grade from the frontal side: IP65
- digital transmission to the master system through the RS-485 interface (MODBUS).
- external dimension: 96 x 96m
Fore more functions, like: archive of power profile, analog output, RTC, harmonics of voltages and currents up to 21-st - please check ND20 power network meter.
Specifications
| Brand | LUMEL |
| Model Number | ND20LITE22100M1 |
| PARAMETERS MEASURED | POWER & ENERGY |
| TYPE | DIGITAL |
| DISPLAY TYPE | LED |
| Lead Time | 2-4 Days |
| Warranty | 2 year warranty |
