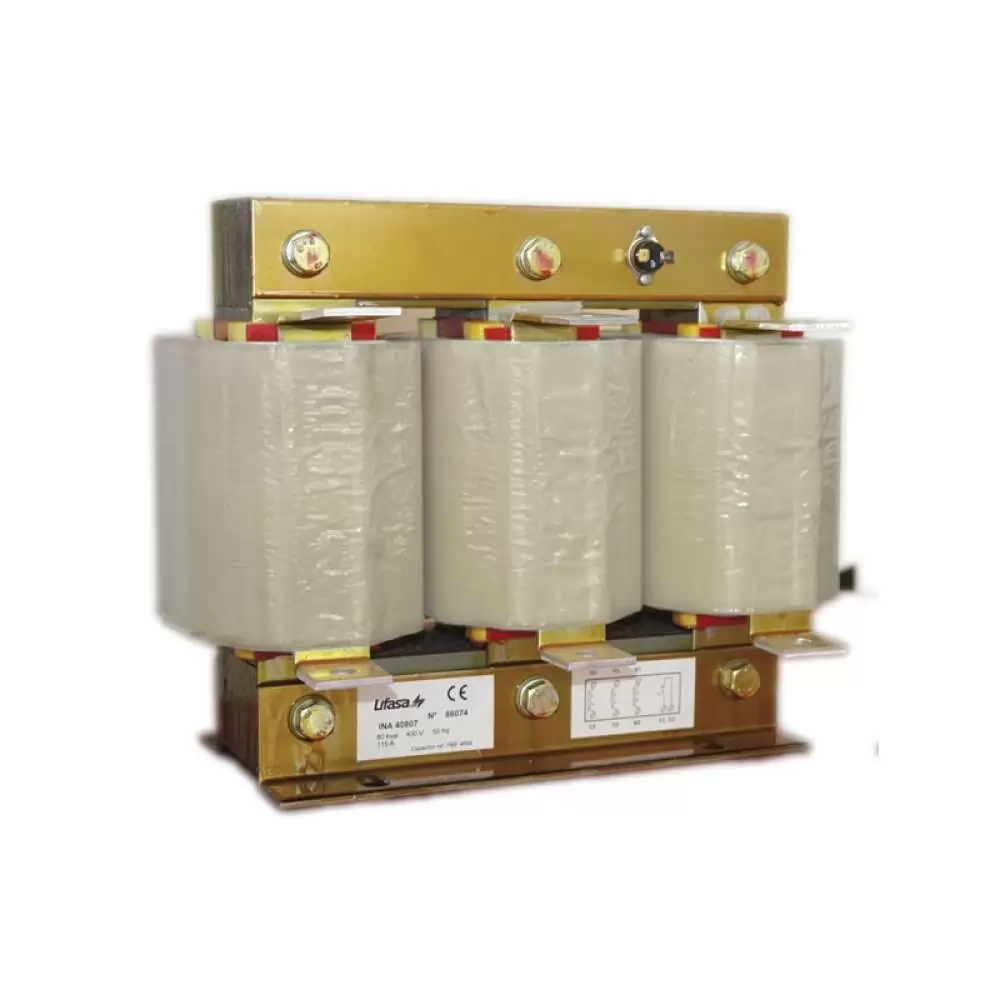

LIFASA DETUNED REACTOR 50KVAR 400V 50/60HZ- ZINA40507
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
kVAR 50/60 Hz : 50 kVAR
VOLTAGE : 400 VAC
PRODUCT WARRANTY : 12 MONTHS
HS Code : 8504 5090
Lead Time : 3-4 WEEKS
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD PART NUMBER LM1360
ZIEGLER, DIGITAL MULTIFUNCTION METER, 3 PHASE, CLASS 0.2s, I...AED 425.00
| Product or component type | ; Harmonic correction |
| Application | : INA reactors are designed to work in supply systems with a high level of harmonic distortion in such a way that they allow a safe and reliable service of the power factor correction equipments. Reactors are connected in series with power capacitors, forming a resonant circuit conveniently detuned, so that, the whole unit has an inductive impedance at the frequencies of all harmonics present in the installation. |
| Frequency | : 50/60 Hz |
| Operating temperature | : -CLASS F ( 155 °C ) |
| Construction band | : Aluminium & Copper |
| Resonance frequency | : 227 Hz (7%) |
| Standards | : IEC 76, IEC 289, EN 60289 |
| Warranty | : 12 months |
Specifications
| Brand | LIFASA |
| Model Number | ZINA40507 |
| kVAR 50/60 Hz | 50 kVAR |
| VOLTAGE | 400 VAC |
| PRODUCT WARRANTY | 12 MONTHS |
| Lead Time | 3-4 WEEKS |
