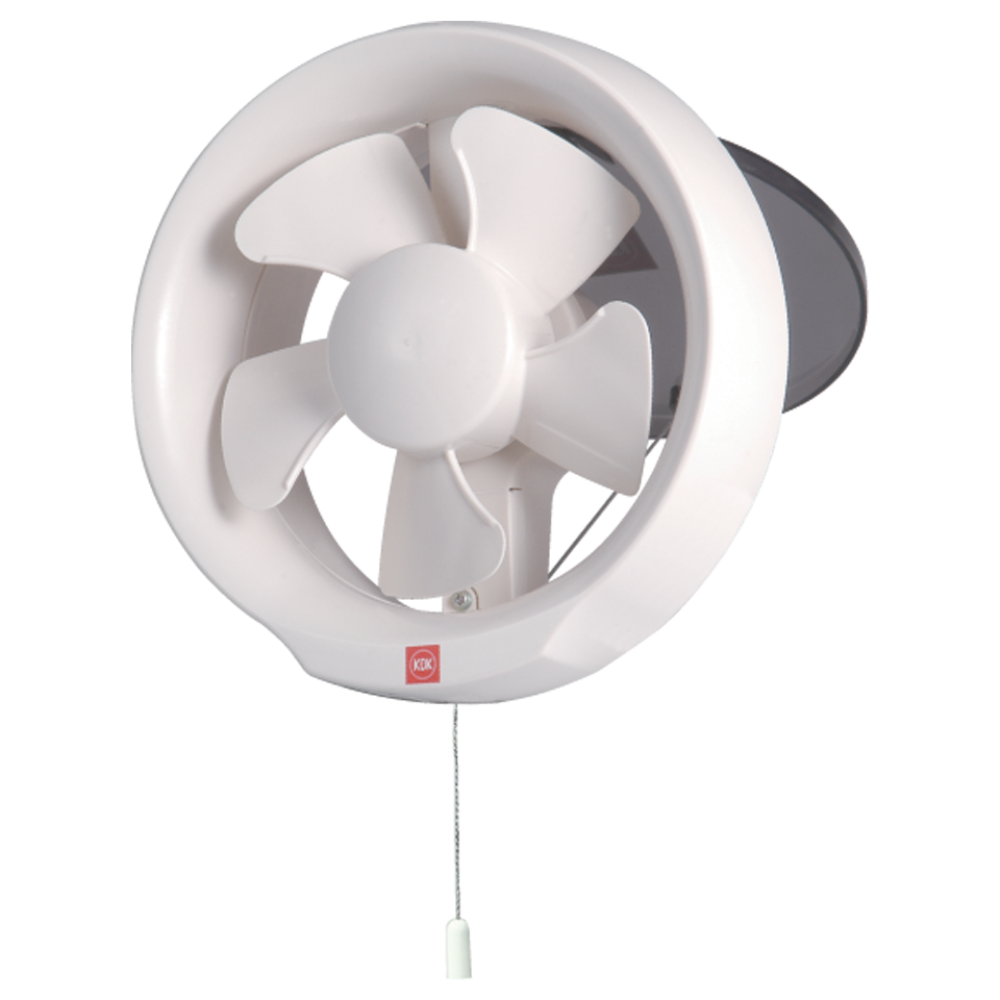

KDK Exhaust Fan Glass Mounted Round 15cmm 6 - 15WUD
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
MAIN POWER SUPPLY : 220V
POWER OF CONSUMPTION : 9W
AC OR DC SUPPLY : AC
NUMBER OF PHASES : 1PH
RPM : 1463
NOICE : 35 dB(A)
HS Code :
Lead Time : 4 Days
VIEW MORE PRODUCT DETAILS
Related Products
KDK Exhuast Fan Glass Mounted 15cmm/ 6" - 15WUD
- Exhaust type
- The fan shall be suitable for window mounting
- Condenser motor with thermo cut-off
- Well lubricated bearing for long life operation
- Propeller fan incorporated with Advanced blade design enables powerful Airflow at low noise
- Shutter operated by pull cord which switches on or off the fan simultaneously
- Metallic shutter axis ensures smooth shutter movement and its endurance under strong wind
- Extra construction cost for opening hole on the wall can be saved
- Recommended glass thickness = 3 to 7 mm
- Installation hole size = 186~188 mm
- Cord-operated shutter series
- Window mounting
- Single speed
- Advanced blade design
- Air volume = 210m³/h

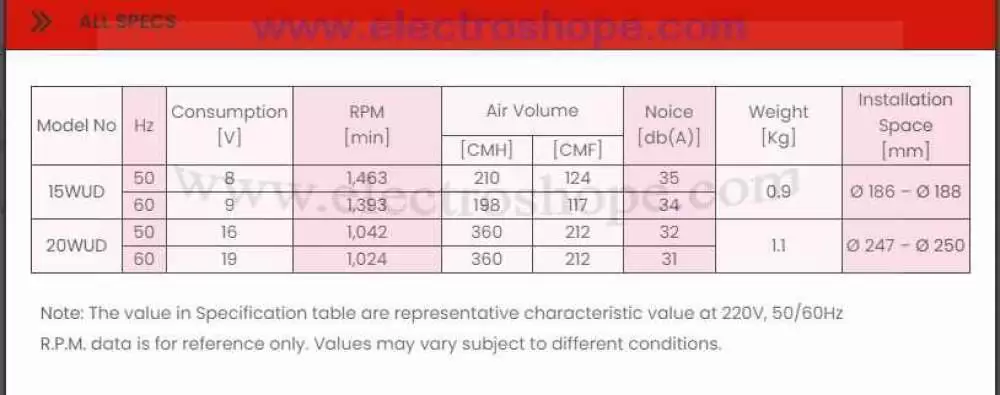

Specifications
| Brand | KDK |
| Model Number | KDK 15WUD |
| MAIN POWER SUPPLY | 220V |
| POWER OF CONSUMPTION | 9W |
| AC OR DC SUPPLY | AC |
| NUMBER OF PHASES | 1PH |
| RPM | 1463 |
| NOICE | 35 dB(A) |
| AIR VOLUME | 210 CMH |
| Lead Time | 4 Days |
| Warranty | 1 year warranty |
