KDK Exhaust Fan Window Mounted Square 15cm - 15WHCT
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
MAIN POWER SUPPLY : 220V
POWER OF CONSUMPTION : 13W
AC OR DC SUPPLY : AC
NUMBER OF PHASES : 1PH
NOICE : 43 dB(A)
AIR VOLUME : 230 CMH
HS Code :
Lead Time : 4 Days
VIEW MORE PRODUCT DETAILS
Related Products
KDK Exhaust Fan Window Mounted Square 15cm (6") - 15WHCT
These fans are easily mountable to exhaust\air through a glass plate. An added advantage is its easy installation, which can be don indoors by just one person. It means you save on the installation cost.
RAINPROOF & WIND RESISTANT
- - Hood structure for prevention of rain water ingression
- - High static pressure blade can prevent ingression of rain & wind during operation

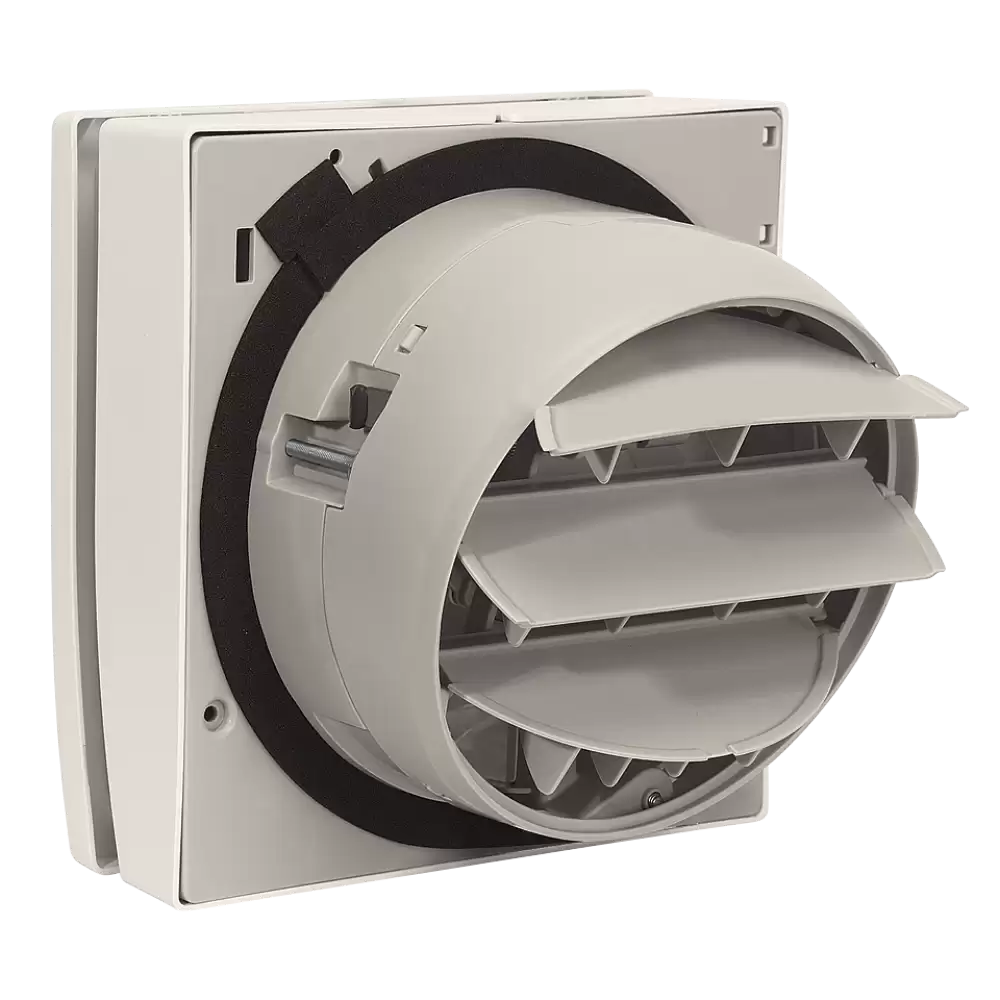

- - Newly design of shutter can keep out entry of rain water effectively
- - Bent End Structure of the shutter can block the backflow of outside wind
- - Mounting Bracket: Unique design of mounting bracket can fix the fan on glass plate with simple process
- - FV-15WH3: Orifice is not necessory to detach for installation. Simply fix the fan on glass plate by screws at front
- - Packing No Gasket, No Silicon Seal: Attached packing tightly closed to the glass plate that gets rid of water leakage to indoor
- - Previous Setting Method: Both silicon seal & gasket are not required
- Exhaust louver type
- The fan shall be suitable for window mounting
- Condenser motor with thermo cut-off
- Lubricated sintered bush for long life operation
- High performance propeller fan adopted sustains static pressure
- Hood structure prevents ingression of rain water
- Bended end structure of shutter blocks the back-flow of outside wind
- Unique mounting brackets allows easy installation with simple steps in few minutes
- Electrically operated shutter ensures sufficient opening for Airflow during operation
- Front louver attached enhances safety protection

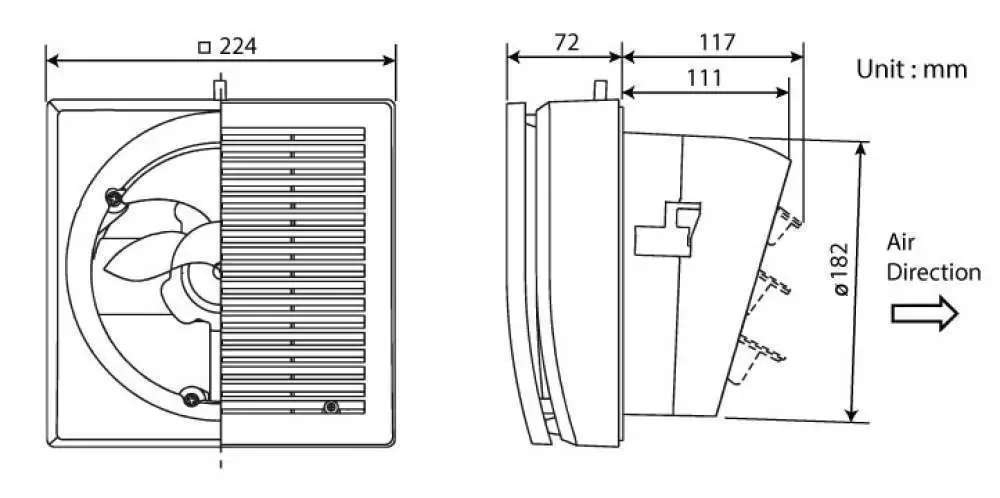

- Recommended glass thickness = 3mm to 25mm
- Installation hole size = 186mm ~ 188 mm
Specifications
| Brand | KDK |
| Model Number | KDK 15WHCT |
| MAIN POWER SUPPLY | 220V |
| POWER OF CONSUMPTION | 13W |
| AC OR DC SUPPLY | AC |
| NUMBER OF PHASES | 1PH |
| NOICE | 43 dB(A) |
| AIR VOLUME | 230 CMH |
| Lead Time | 4 Days |
| Warranty | 1 year warranty |
