HIMEL AMMETER EQ96 100/5A x2 IP52 90DEG CL-1.5, H96TA100FHG

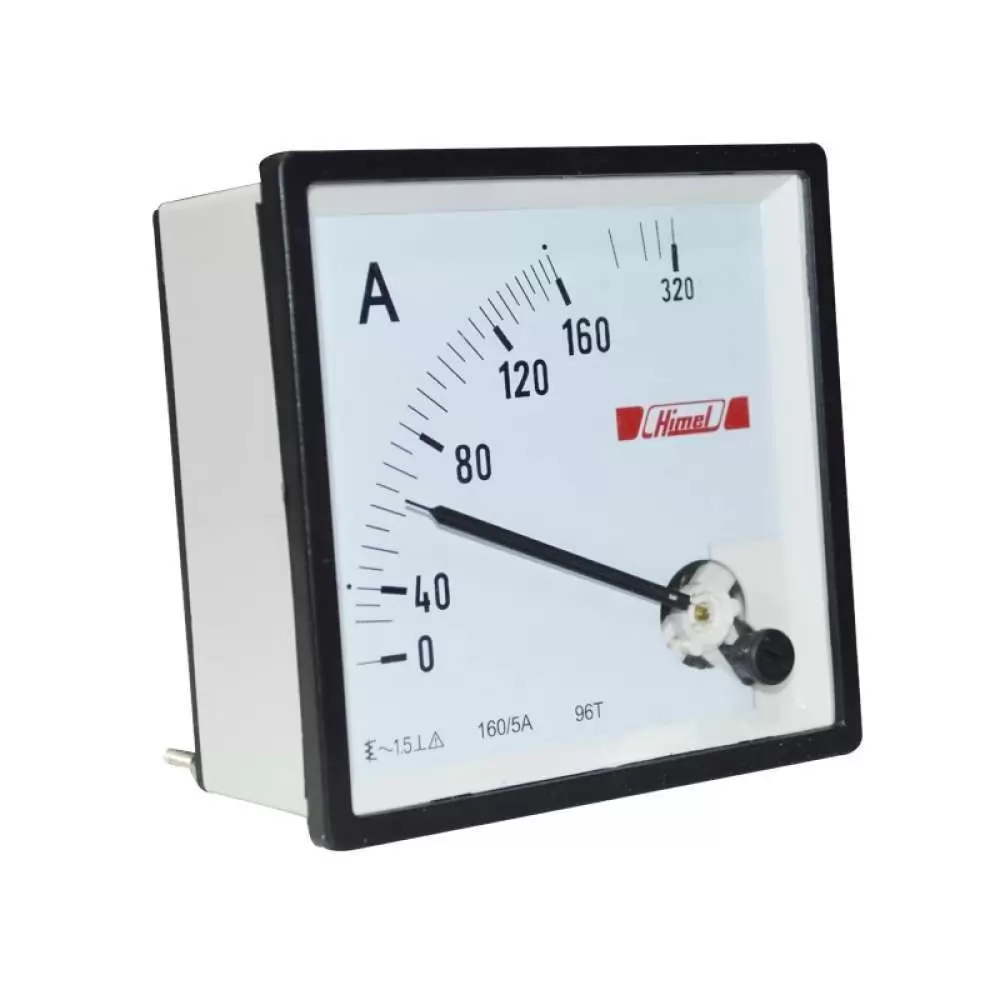

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
CUT OUT SIZE : 96mm
SCALE VALUE : 100A
SECONDARY CURRENT : 5A
CURRENT TYPE : AC
METER ACCURACY : CLASS 1.5
PRODUCT WARRANTY : 12 MONTHS
HS Code : 9028 3000
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS
Related Products
H72 & H96 Series Panel Meter
Product or component type |
:Analogue measuring instrument |
Standard : |
: IEC 60051 |
Measurement Parameters : |
: Ampere, Voltage, Frequency & Power factor |
Function: |
H72T/H72L applies to measure the current, voltage ,frequency or power factor in the AC circuit |
Cut out size |
: 72mm & 96mm |
Ingress protection |
: IP42 |
Ambient temperature |
: -5°C ~ +50°C |
Mounting |
: Panel mounting |
Warranty |
: 24 months |
Note : Please refer technical data sheet for more information about the product.
Specifications
| Brand | HIMEL |
| Model Number | H96TA100FHG |
| CUT OUT SIZE | 96mm |
| SCALE VALUE | 100A |
| SECONDARY CURRENT | 5A |
| CURRENT TYPE | AC |
| METER ACCURACY | CLASS 1.5 |
| PRODUCT WARRANTY | 12 MONTHS |
| Lead Time | 2-4 WORKING DAYS |
