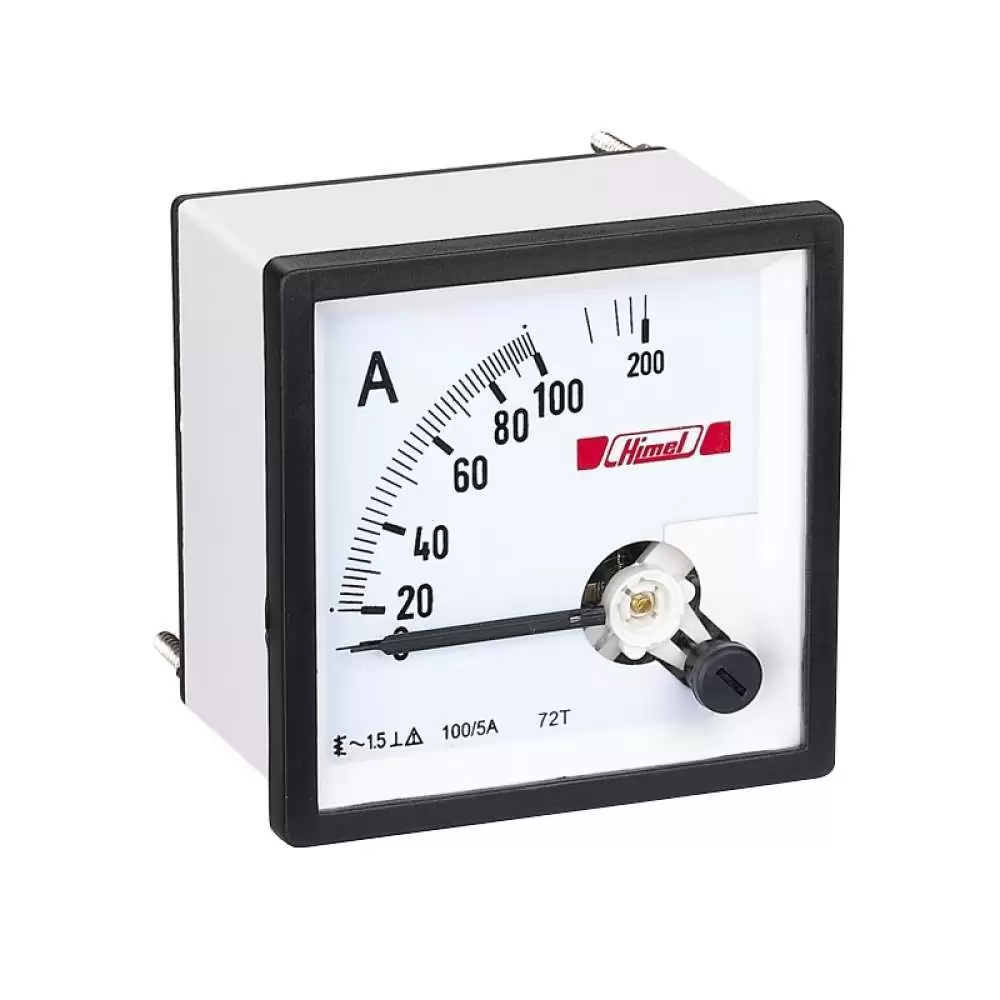

HIMEL AMMETER EQ72 100/5A x2 IP52 90DEG CL-1.5, H72TA100FHG
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
CUT OUT SIZE : 72mm
SCALE VALUE : 100A
SECONDARY CURRENT : 5A
CURRENT TYPE : AC
METER ACCURACY : CLASS 1.5
PRODUCT WARRANTY : 12 MONTHS
HS Code : 9028 3000
Lead Time : 2-4 WORKING WEEKS
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD PART NUMBER EINE 3V & ZIM PROE 3V
ZIEGLER, DIGITAL VOLTMETER AC, 3 PHASE, 96x96, I/P: 100-500...AED 85.00
H72 & H96 Series Panel Meter
Product or component type |
:Analogue measuring instrument |
Standard : |
: IEC 60051 |
Measurement Parameters : |
: Ampere, Voltage, Frequency & Power factor |
Function: |
H72T/H72L applies to measure the current, voltage ,frequency or power factor in the AC circuit |
Cut out size |
: 72mm & 96mm |
Ingress protection |
: IP42 |
Ambient temperature |
: -5°C ~ +50°C |
Mounting |
: Panel mounting |
Warranty |
: 24 months |
Note : Please refer technical data sheet for more information about the product.
Specifications
| Brand | HIMEL |
| Model Number | H72TA100FHG |
| CUT OUT SIZE | 72mm |
| SCALE VALUE | 100A |
| SECONDARY CURRENT | 5A |
| CURRENT TYPE | AC |
| METER ACCURACY | CLASS 1.5 |
| PRODUCT WARRANTY | 12 MONTHS |
| Lead Time | 2-4 WORKING WEEKS |
| Warranty | 2 year warranty |
