ELSNER KNX WEATHER STATION COMBINED SENSOR FOR BRIGHTNESS WIND PERCIPITATION TEMPERATURE VIA GPS P04-KNX-GPS 71230
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PROTOCOL : KNX
BODY MATERIAL : PLASTIC
MOUNTING TYPE : SURFACE MOUNTING
OPERATING TEMPERATURE : -10°C to 50°C
SUPPLY VOLTAGE : 24 VDC
IP RATING : IP44
HS Code :
Lead Time : 10-15 DAYS
VIEW MORE PRODUCT DETAILS
Related Products
P04-KNX-GPS
Weather Station
- Weather sensor/combined sensor: sun sensor, electronic wind sensor, rain sensor, thermometer, GPS receiver
- Slim design, unobtrusive on the façade

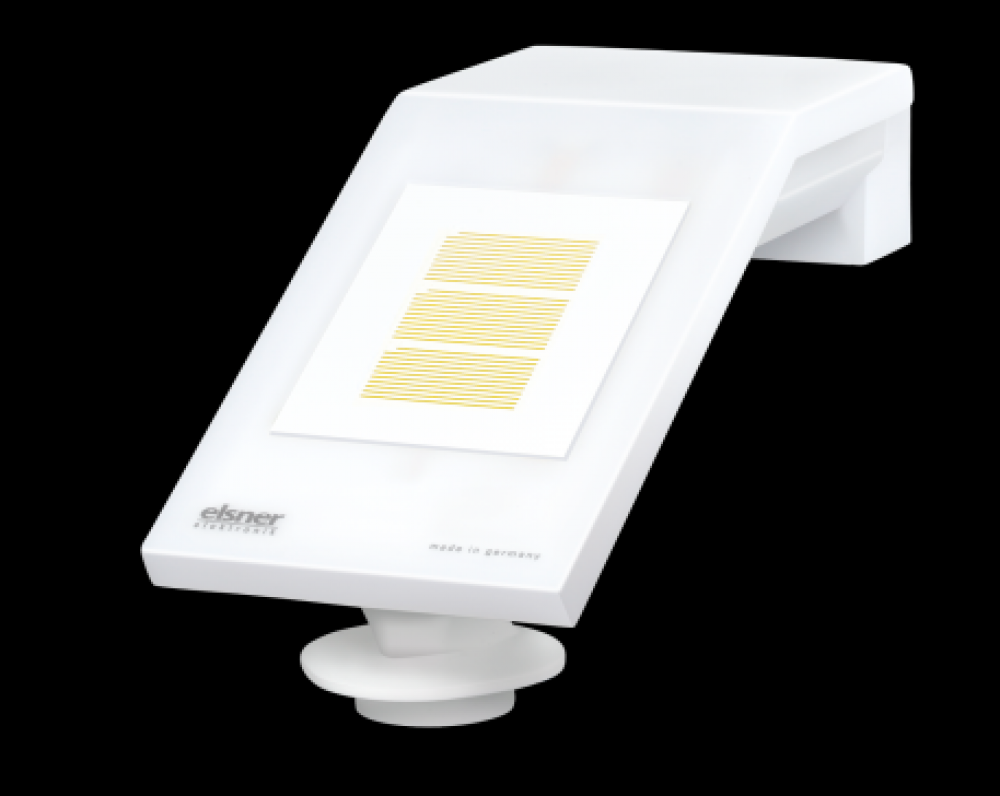

The Weather Station P04-KNX-GPS for the KNX building bus system measures temperature, wind speed and brightness. It recognises precipitation and receives the GPS signal for time and location.
KNX weather stations with sensors for brightness, wind, precipitation, temperature. Time reception via GPS
The compact housing of the P04-KNX-GPS accommodates the sensors, evaluation circuits and bus-coupling electronics.
FUNCTIONS
- Brightness measurement
- GPS receiver, outputting the current time and location coordinates
- Wind measurement: The wind strength is measured electronically and thus noiselessly and reliably, even during hail, snow and sub-zero temperatures. Even turbulent air and rising winds in the vicinity of the device are recorded
- Precipitation detection: The sensor surface is heated, so that only drops and flakes are recognised as precipitation, but not mist or dew. When the rain or snow stops, the sensor is soon dry again and the precipitation warning ends
- Temperature measurement
- Configuration is made using the KNX software ETS
Wheater Station: | |
| Housing | Plastic |
| Colour | White / Translucent |
| Assembly | Surface mount |
| Protection category | IP 44 |
| Dimensions | approx. 62 × 75 × 155 (W × H × D, mm) |
| Connection cable | 4-wire (bus +/-, auxiliary voltage +/-), diameter approx. 5 mm |
| Weight | Weather station with mounting approx. 90 g, total weight with accessories approx. 280 g |
| Ambient temperature | Operation -30…+50°C, storage -30…+70°C |
| Auxiliary supply | 20...32 V DC. An appropriate power supply unit can be purchased from Elsner Elektronik. Auxiliary current at 24V DC: max. 90 mA |
| Bus current | max. 10 mA |
| Data output | KNX +/- |
| Communication objects | 28 |
| Measurement range temperature sensor | -30°C … +50°C |
| Measurement range wind sensor: | 0 m/s … 35 m/s |
| Measurement range brightness sensor | 0 lux … 150,000 lux |

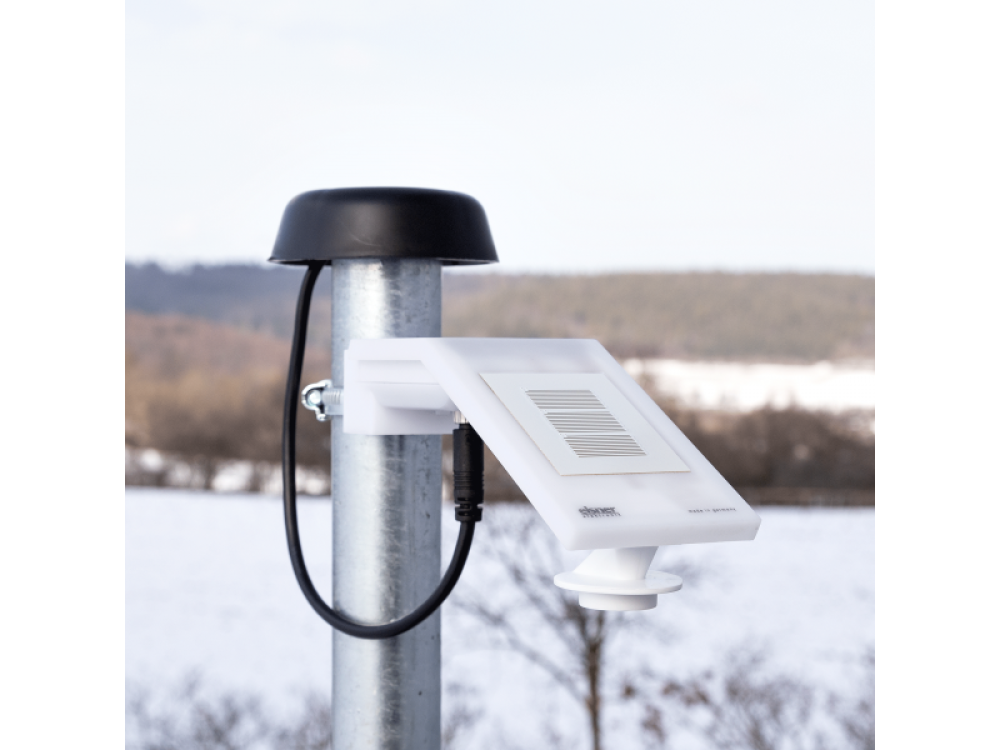

Mounting arm Fix: | |
| Colour | powder-coated white RAL 9003 |
| Total lenght | approx. 430 mm |
| Weight | approx. 190 gWheater Station: |
| Housing | Plastic |
| Colour | White / Translucent |
| Assembly | Surface mount |
| Protection category | IP 44 |
| Dimensions | approx. 62 × 75 × 155 (W × H × D, mm) |
| Connection cable | 4-wire (bus +/-, auxiliary voltage +/-), diameter approx. 5 mm |
| Weight | Weather station with mounting approx. 90 g, total weight with accessories approx. 280 g |
| Ambient temperature | Operation -30…+50°C, storage -30…+70°C |
| Auxiliary supply | 20...32 V DC. An appropriate power supply unit can be purchased from Elsner Elektronik. Auxiliary current at 24V DC: max. 90 mA |
| Bus current | max. 10 mA |
| Data output | KNX +/- |
| Communication objects | 28 |
| Measurement range Temperature sensor | -30°C … +50°C |
| Measurement range Wind sensor | 0 m/s … 35 m/s |
| Measurement range Brightness sensor | 0 lux … 150,000 lux |
| Resolution | 1 lux up to 300 lux 2 lux up to 1000 lux 25 lux up to 150.000 lux |
| Accuracy | ±15% of the measurement value at 30 lux …30,000 lux |
Mounting arm Fix: | |
| Colour | powder-coated white RAL 9003 |
| Total lenght | approx. 430 mm |
| Weight | approx. 190 g |
Specifications
| Brand | ELSNER |
| Model Number | ELSNER P04-KNX-GPS 71230 |
| PROTOCOL | KNX |
| BODY MATERIAL | PLASTIC |
| MOUNTING TYPE | SURFACE MOUNTING |
| OPERATING TEMPERATURE | -10°C to 50°C |
| SUPPLY VOLTAGE | 24 VDC |
| IP RATING | IP44 |
| Lead Time | 10-15 DAYS |
