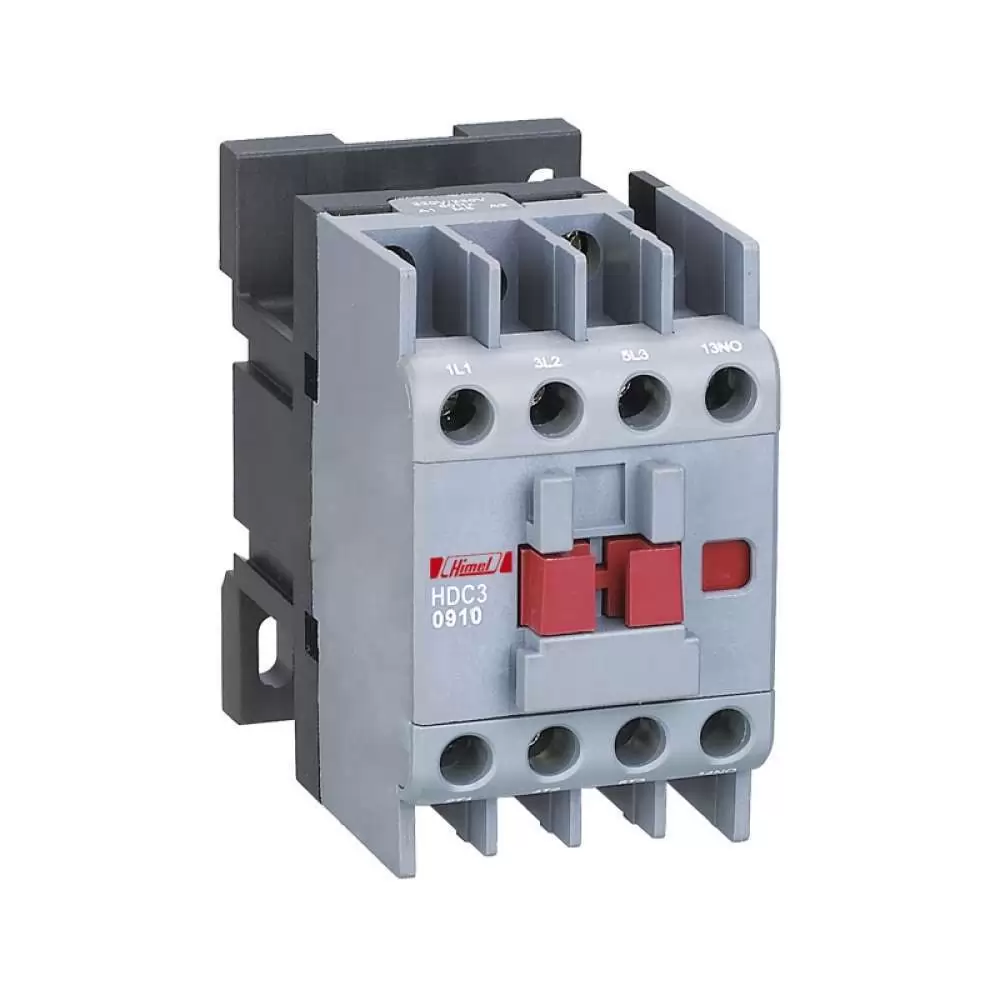

HIMEL 3 SERIES CONTACTOR TP 9A 220/230V 50/60Hz 1NO +1NC HDC30911M7

Now: AED 17.98 (Inclusive of VAT)

Qty:

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

COIL VOLTAGE : 230 VAC
NUMBER OF POLES : 3P
CURRENT RATING : 9A
POWER RATING : 4 kW
CONTACT : 1NO+1NC
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS

2 year warranty
100% Guaranteed Warranty

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

Product Overview

With the new generation of technical platform and automated production and testing equipment, the brand new HDC3 motor control and protection products effectively fit the actual customer application needs, becoming products with convenient use and international leading quality.The series include three major categories, namely HDC3 AC contactor, HDR3s thermal overload relay and HDZ3 contactor relay and their accessories.

Product range
HDC3 AC Contactor : 6-95A, Totally 12 current specifications
Accessories: HPCs transparent dust cover, HFD6 top auxiliary contact, HFC6 side auxiliary contact, HFT6 air delayed head and HFR6 mechanical interlock
Certification: CB,CE, SEMKO
HDR3s thermal overload relay : setting current covering 0.1~93A
Accessories: independent mounting base
Certification: CB,CE, SEMKO
HDZ3 contactor relay : 2NO+2NC, 3NO+1NC, 4NO+0NC, 1NO+3NC and 0NO+4NC
Accessories: HPCs transparent dust cover, HFD6 top auxiliary contact and HFT6 air delayed head
Certification: CE

Standards met
IEC 60947-1 General Provisions
IEC 60947-4-1 Contactors
IEC 60947-5-1 Relays

Normal installation and operation conditions
Installation position:
The installation site shall be vertical, with inclination at all directions not exceeding 22.5. (HDR3s of no greater than 5 ); installation Class III;


Pollution class:
Class 3

Ambient temperature:
In normal operation, the ambient temperature ranges between -5C and +40C with average value in 24h no more than +35C Storage temperature : -25C ~ +55C, upto +70C within a short time (24h)

Altitude:
Altitude at normal installation position does not exceed 2000m.

Humidity
The atmospheric relative humidity does not exceed 50% when the highest ambient temperature is +40. It is allowed to have a relative higher humidity under lower temperature, e.g. up to 90% at +20C
For occasional dew due to changes of the temperature, preventive measures shall be taken

Product protection grade:
IP20

Note : Please refer technical data sheet for more information about the product.

Specifications

BrandHIMEL
Model NumberHDC30911M7
COIL VOLTAGE 230 VAC
NUMBER OF POLES 3P
CURRENT RATING 9A
POWER RATING 4 kW
CONTACT 1NO+1NC
Lead Time 2-4 WORKING DAYS
Weight 0.50 kg
Warranty 2 year warranty
