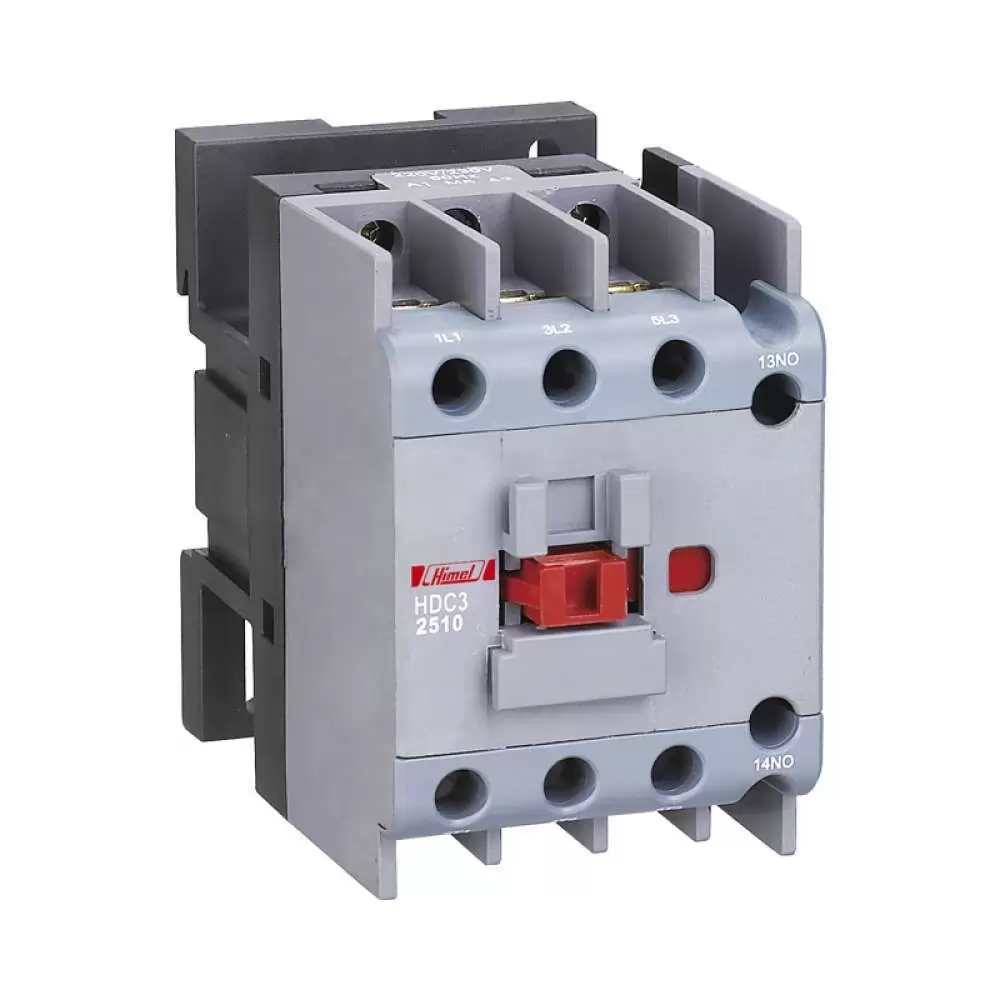

HIMEL 3 SERIES CONTACTOR TP 25A 24V 50/60Hz 1NO +1NC HDC32511B7

Product Overview

With the new generation of technical platform and automated production and testing equipment, the brand new HDC3 motor control and protection products effectively fit the actual customer application needs, becoming products with convenient use and international leading quality.The series include three major categories, namely HDC3 AC contactor, HDR3s thermal overload relay and HDZ3 contactor relay and their accessories.

Product range
HDC3 AC Contactor : 6-95A, Totally 12 current specifications
Accessories: HPCs transparent dust cover, HFD6 top auxiliary contact, HFC6 side auxiliary contact, HFT6 air delayed head and HFR6 mechanical interlock
Certification: CB,CE, SEMKO
HDR3s thermal overload relay : setting current covering 0.1~93A
Accessories: independent mounting base
Certification: CB,CE, SEMKO
HDZ3 contactor relay : 2NO+2NC, 3NO+1NC, 4NO+0NC, 1NO+3NC and 0NO+4NC
Accessories: HPCs transparent dust cover, HFD6 top auxiliary contact and HFT6 air delayed head
Certification: CE

Standards met
IEC 60947-1 General Provisions
IEC 60947-4-1 Contactors
IEC 60947-5-1 Relays

Normal installation and operation conditions
Installation position:
The installation site shall be vertical, with inclination at all directions not exceeding ±22.5°. (HDR3s of no greater than 5° ); installation Class III;


Pollution class:
Class 3

Ambient temperature:
In normal operation, the ambient temperature ranges between -5°C and +40°C with average value in 24h no more than +35°C Storage temperature : -25°C ~ +55°C, upto +70°C within a short time (24h)

Altitude:
Altitude at normal installation position does not exceed 2000m.

Humidity
The atmospheric relative humidity does not exceed 50% when the highest ambient temperature is +40°. It is allowed to have a relative higher humidity under lower temperature, e.g. up to 90% at +20°C
For occasional dew due to changes of the temperature, preventive measures shall be taken

Product protection grade:
IP20

Note : Please refer technical data sheet for more information about the product.
