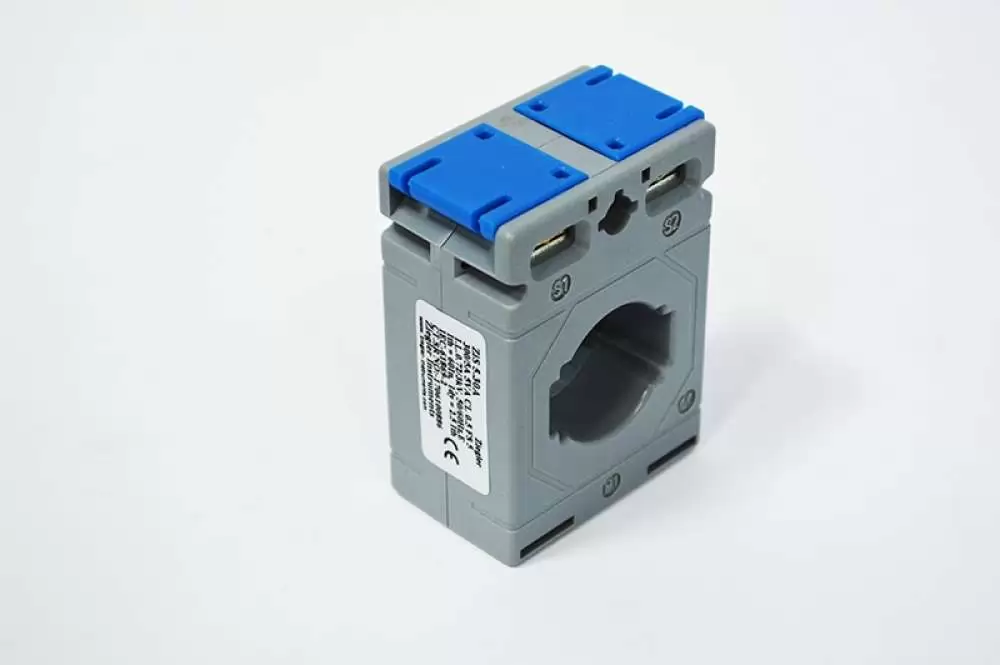

ZIEGLER CURRENT TRANSFORMER 300/5A CLASS 1 Zis 5.30A 5VA Busbar: 30.5 x 10.5mm, ZIS 5.30 300/CL1
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PRIMARY CURRENT : 300A
SECONDARY CURRENT : 5A
MOUNTING : BUSBAR
ACCURACY CLASS : CLASS 1
VA RATING : 5VA
PRODUCT WARRANTY : 12 MONTHS
HS Code : 8504 3100
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS
Related Products
| Product or Component Type | Measuring instruments |
| Standard | IEC/EN 60044 - 1 |
| Application | Measures network current |
| Product Features | Case – 10% glass filled polycarbonate, flame retardant grade classified UL 94V-0 Comprehensive measurement of class accuracy Wide range of busbar sizes, case widths and apertures Wire sealable terminal covers |
| Frequency Range | 50/60 Hz |
| System Voltage | 720V Max |
| Ambient Temperature | -20°C ~ +45°C |
| Mounting | Panel, Cable, Busbar and Din mounting |
| Warranty | 12 Months |
Specifications
| Brand | ZIEGLER |
| Model Number | ZIS 5.30 300/CL1 |
| PRIMARY CURRENT | 300A |
| SECONDARY CURRENT | 5A |
| MOUNTING | BUSBAR |
| ACCURACY CLASS | CLASS 1 |
| VA RATING | 5VA |
| PRODUCT WARRANTY | 12 MONTHS |
| Lead Time | 2-4 WORKING DAYS |
