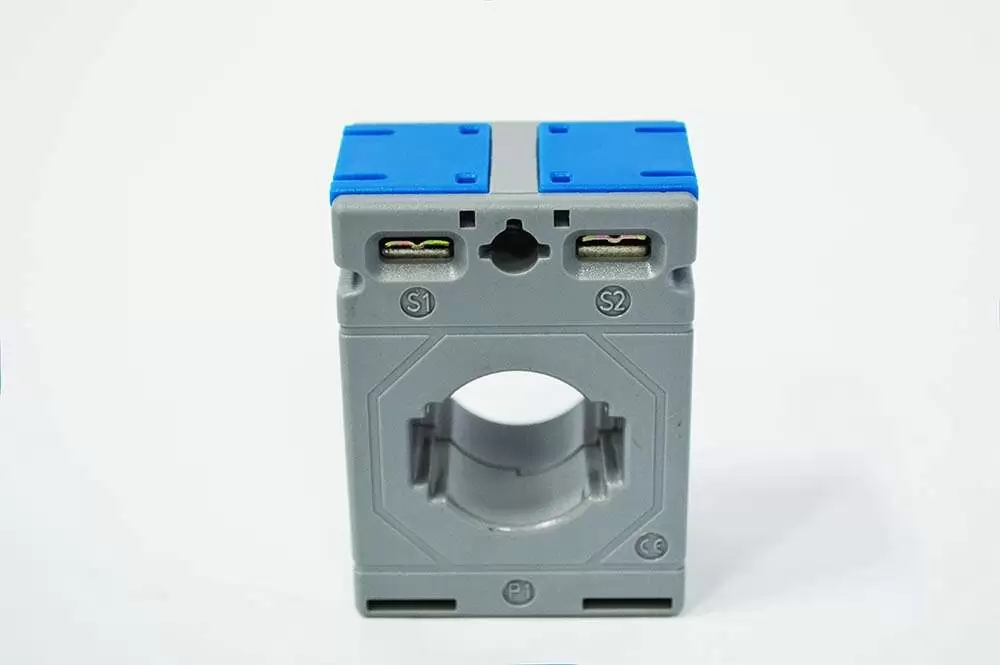

ZIEGLER CURRENT TRANSFORMER 200/5A CL0.5 Zis 5.30A 2.5VA Busbar: 30.5 x 10.5mm, ZIS 5.30 200
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PRIMARY CURRENT : 200A
SECONDARY CURRENT : 5A
MOUNTING : BUSBAR
ACCURACY CLASS : CLASS 0.5
VA RATING : 2.5VA
PRODUCT WARRANTY : 12 MONTHS
HS Code : 8504 3100
Lead Time : 2-3 WEEKS
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD PART NUMBER LM1360
ZIEGLER, DIGITAL MULTIFUNCTION METER, 3 PHASE, CLASS 0.2s, I...AED 425.00 -
OLD PART NUMBER VIPS 80L
VERITEK, POWER ANALYZER, LCD DISPLAY, CLASS 0.5, 90-270V AC/...AED 175.00
| Product or Component Type | Measuring instruments |
| Standard | IEC/EN 60044 - 1 |
| Application | Measures network current |
| Product Features | Case – 10% glass filled polycarbonate, flame retardant grade classified UL 94V-0 Comprehensive measurement of class accuracy Wide range of busbar sizes, case widths and apertures Wire sealable terminal covers |
| Frequency Range | 50/60 Hz |
| System Voltage | 720V Max |
| Ambient Temperature | -20°C ~ +45°C |
| Mounting | Panel, Cable, Busbar and Din mounting |
| Warranty | 12 Months |
Specifications
| Brand | ZIEGLER |
| Model Number | ZIS 5.30 200 |
| PRIMARY CURRENT | 200A |
| SECONDARY CURRENT | 5A |
| MOUNTING | BUSBAR |
| ACCURACY CLASS | CLASS 0.5 |
| VA RATING | 2.5VA |
| PRODUCT WARRANTY | 12 MONTHS |
| Lead Time | 2-3 WEEKS |
