ZIEGLER ANALOGUE MOVING COIL DC AMMETER, 48x48mm, I/P:0-75mV ,250A/75mV, Scale:0-250A, Class1.5, 90D

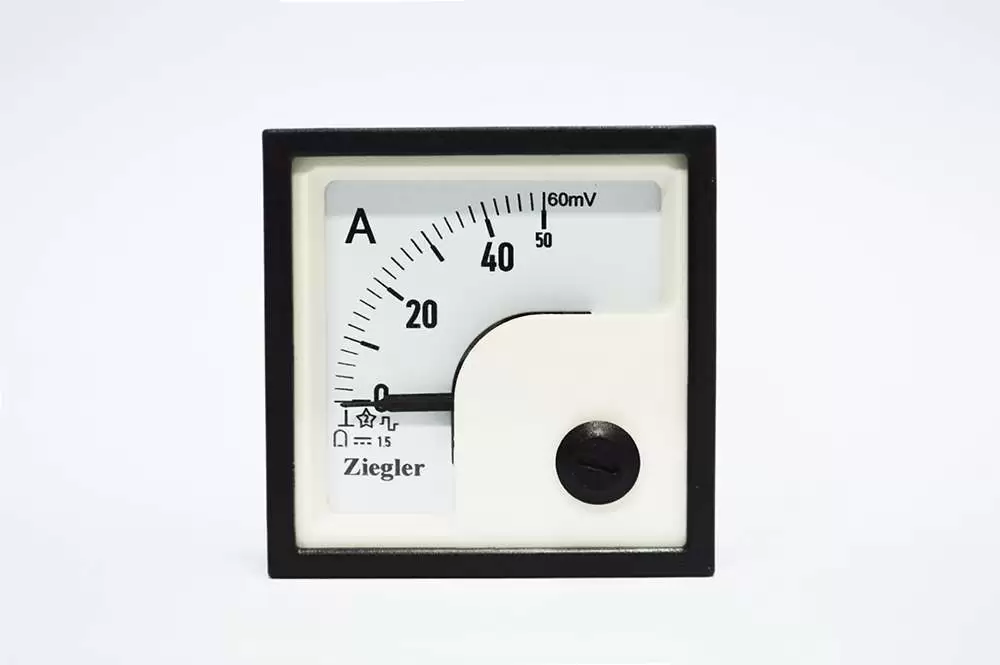

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
CUT OUT SIZE : 48mm
SCALE VALUE : 250A
SECONDARY CURRENT : 75mV
CURRENT TYPE : DC
METER ACCURACY : CLASS 1.5
PRODUCT WARRANTY : 12 MONTHS
HS Code : 9030 3310
Lead Time : 3 - 4 WEEKS
VIEW MORE PRODUCT DETAILS
Product or Component Type | Analogue measuring instruments |
Standard | IEC 61326 |
Application | Display network current rating |
Product Features | Robust case with classic finish Convenient housing for easy mounting Self lifting terminal clamps Interchangeable scales Standard IP20 back cover |
Frequency Range | 45-65 Hz |
Pollution Degree | 2 |
Ambient Temperature | -25°C ~ +70°C |
Mounting | Panel mounting |
Warranty | 12 Months |
Specifications
Brand | ZIEGLER |
Model Number | PQ48-250 |
CUT OUT SIZE | 48mm |
SCALE VALUE | 250A |
SECONDARY CURRENT | 75mV |
CURRENT TYPE | DC |
METER ACCURACY | CLASS 1.5 |
PRODUCT WARRANTY | 12 MONTHS |
Lead Time | 3 - 4 WEEKS |
