VERITEK MULTIFUNCTION TIMER VIPS-99MF

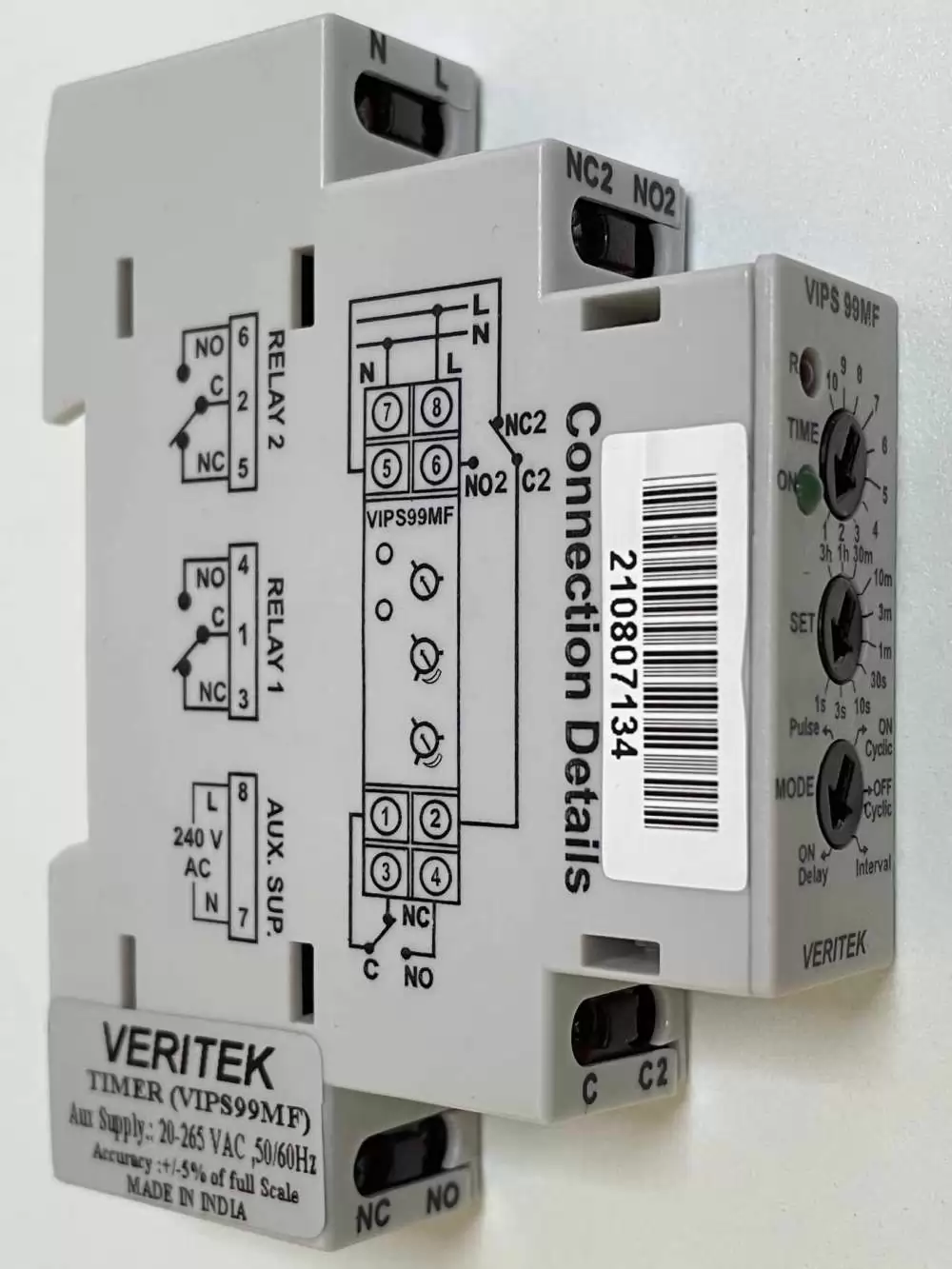

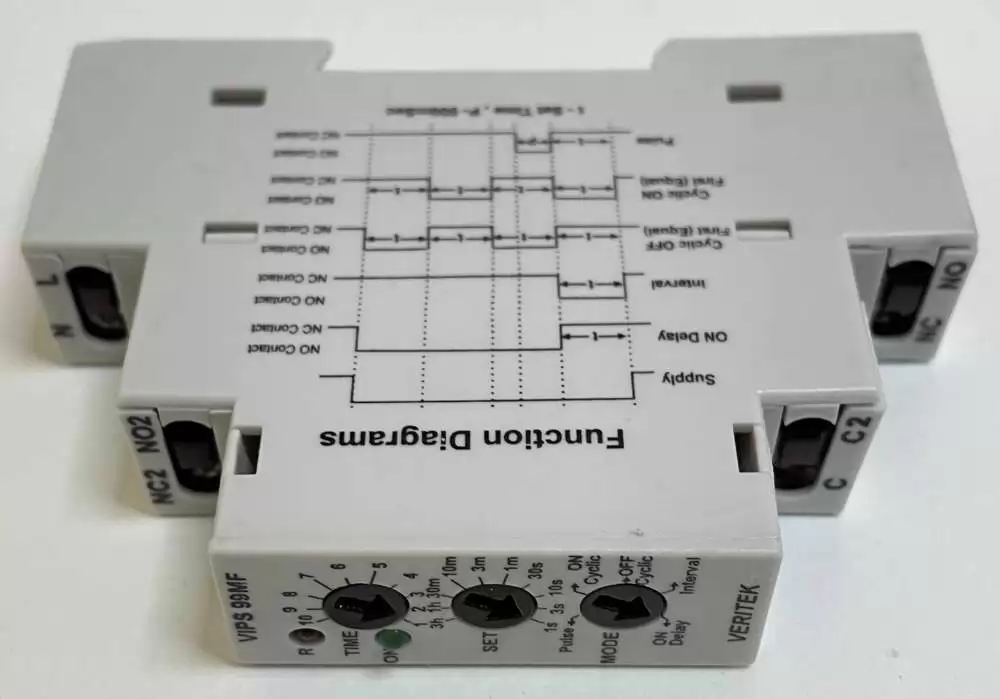

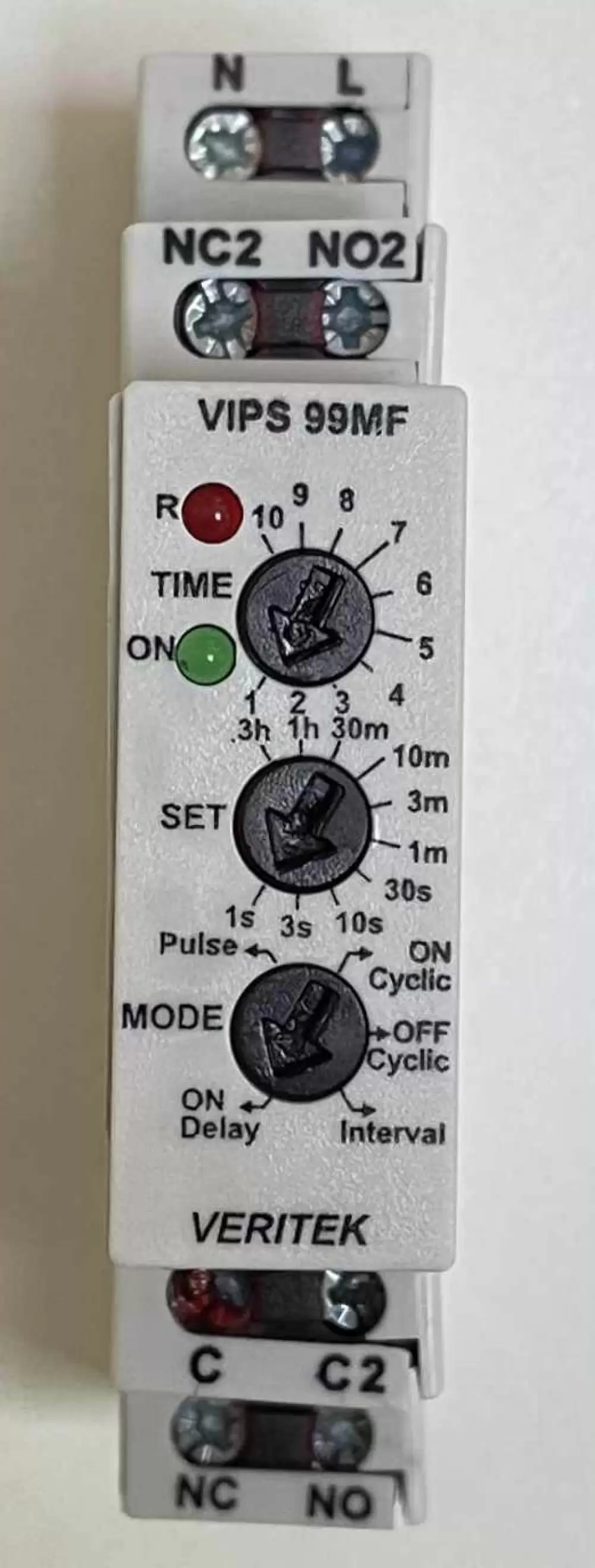

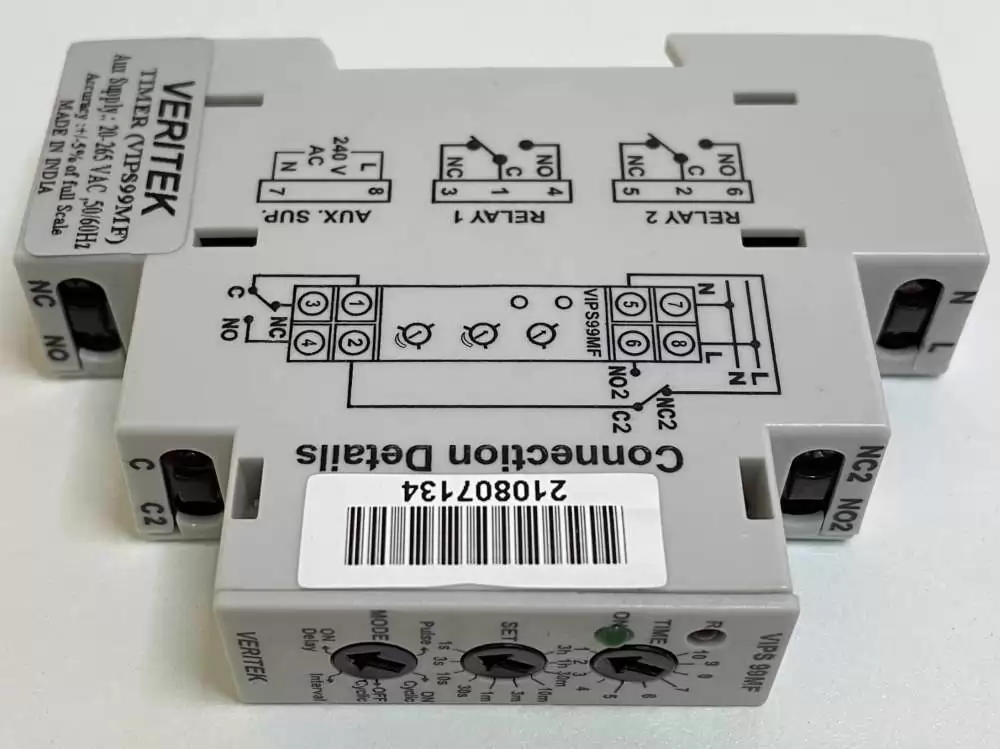

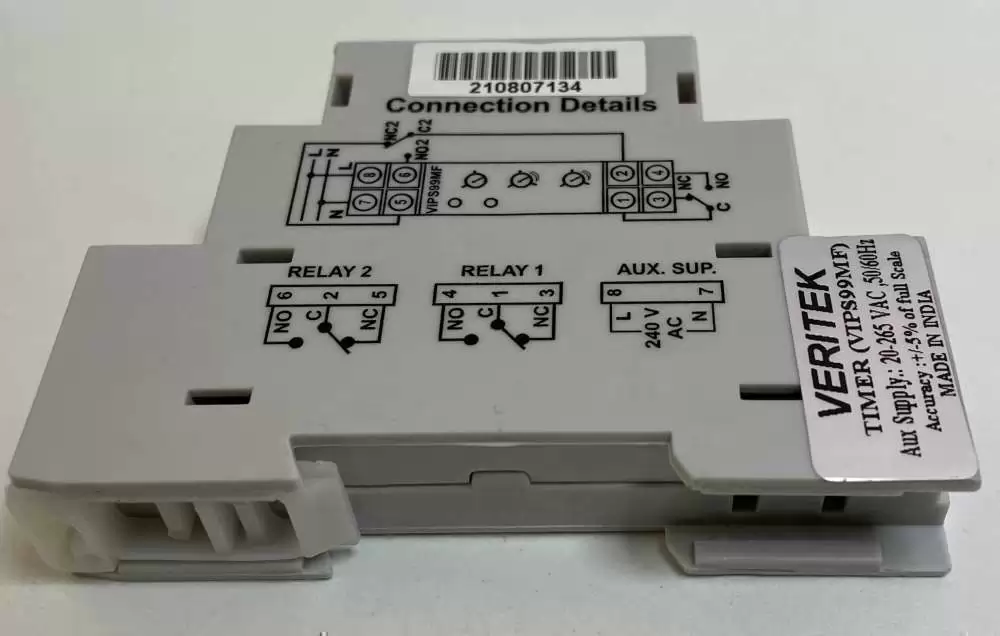

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
MOUNTING : DIN RAIL
HS Code :
Lead Time :
VIEW MORE PRODUCT DETAILS
Related Products
VERITEK MULTIFUNCTION TIMER VIPS-99MF
Features:
- ... ON delay I Interval
- ... 12-time ranges
- ... LED indication for Power & relay status
- ... Din rail mount
Advantages:
- ... Automatic compensation for variations
- ... Easy adjustment in desired automation
- ... Reduction in inventory cost (up to 80%)
- ... Easy switching reliability
- ... High mechanical endurance of operation ensures trouble-free operation
Applications:
- ... Control panel
- ... Feeders I Motors
- ... Generator
- ... Transformer
- ... Electrical distribution
Input Specifications
Accuracy - ±5% of full Scale
Repeatability - ±0.5% or 50 ms
Reset - < 100ms on Interruption of Power
Output Specification
Output Contact - SPOT (1 C/0)
Contact Rating - 5A/230V AC/28V DC
Functional Specification
Modes - ON Delay I Interval
Time range - 0-1 sec/ min I Hr
0-3 sec/ min I Hr
0-10 sec/ min I Hr
0-30 sec/ min I Hr
Led Indication - Power & Relay Status
Supply Voltage
Auxiliary Supply - 230V AC & 24V AC/DC
11 av AC & 24V AC/DC
Supply Frequency - 50/60 Hz
Environmental Specifications
Operating Temperature - - 10°C to 55°C
Storage Temperature - -20°C to 75°C
Humidity < 95% RH (non-condensing)
Mechanical Specifications
Weight - 120 g
Mounting - DIN Rail (35 mm)/ 2x m4 screw
Dimension - 22.5x77x105 mm (WXLXH)
Specifications
| Brand | VERITEK |
| Model Number | VERITEK VIPS 99MF |
| MOUNTING | DIN RAIL |
| Lead Time |
