VERITEK CURRENT TRANSFORMER 600/5A, 60x10, CLASS 0.5, 10VA, 50/60Hz, VIPS-601 600

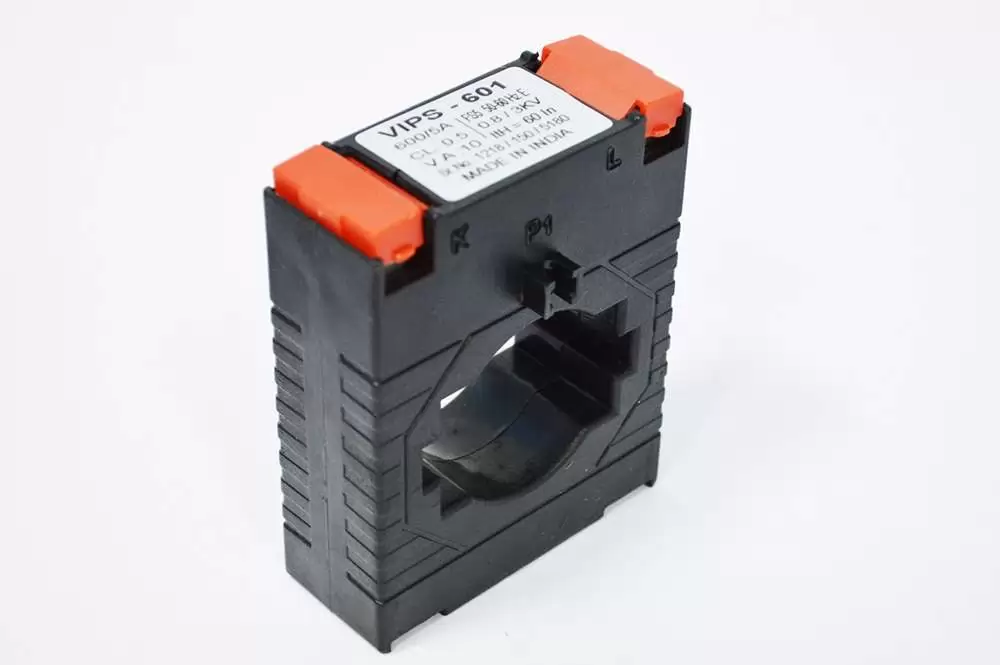

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PRIMARY CURRENT : 600A
SECONDARY CURRENT : 5A
MOUNTING : BUSBAR
ACCURACY CLASS : CLASS 0.5
VA RATING : 10VA
PRODUCT WARRANTY : 12 MONTHS
HS Code : 8504 3100
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS
Product or Component Type | Measuring instruments |
Operating Temperature | 20°C to 70°C |
Application | Measures network current |
Features | ABS plastic moulding Apertures accepting a wide range of bus bar CT's are ultrasonically welded and unbreakable |
Frequency Range | 50/60 Hz |
Class of Accuracy | 0.5 and 1 |
Mounting | Easy bus bar mounting |
Humidity | <95% RH |
Warranty | 12 Months |
Specifications
Brand | VERITEK |
Model Number | VIPS-601 600 |
PRIMARY CURRENT | 600A |
SECONDARY CURRENT | 5A |
MOUNTING | BUSBAR |
ACCURACY CLASS | CLASS 0.5 |
VA RATING | 10VA |
PRODUCT WARRANTY | 12 MONTHS |
Lead Time | 2-4 WORKING DAYS |
