VERITEK CURRENT TRANSFORMER 1000/5A, 80x10, CLASS 0.5, 10VA, 50/60Hz, VIPS-801 1000

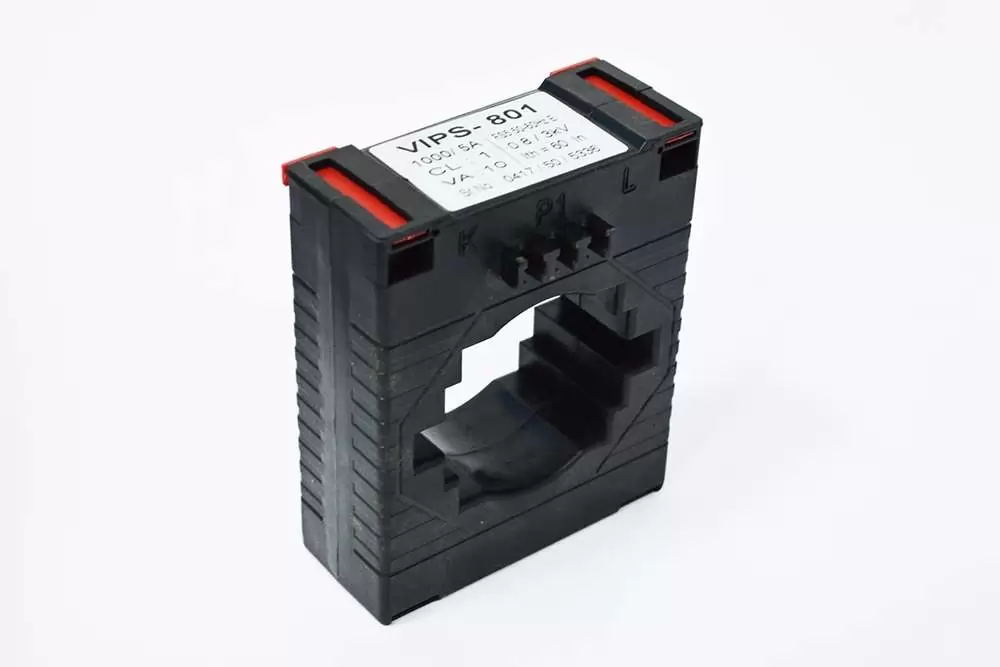

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PRIMARY CURRENT : 1000A
SECONDARY CURRENT : 5A
MOUNTING : BUSBAR
ACCURACY CLASS : CLASS 0.5
VA RATING : 10VA
PRODUCT WARRANTY : 12 MONTHS
HS Code : 8504 3100
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD PART NUMBER LM1360
ZIEGLER, DIGITAL MULTIFUNCTION METER, 3 PHASE, CLASS 0.2s, I...AED 425.00
| Product or Component Type | Measuring instruments |
| Operating Temperature | 20°C to 70°C |
| Application | Measures network current |
| Features | ABS plastic moulding Apertures accepting a wide range of bus bar CT's are ultrasonically welded and unbreakable |
| Frequency Range | 50/60 Hz |
| Class of Accuracy | 0.5 and 1 |
| Mounting | Easy bus bar mounting |
| Humidity | <95% RH |
| Warranty | 12 Months |
Specifications
| Brand | VERITEK |
| Model Number | VIPS-801 1000 |
| PRIMARY CURRENT | 1000A |
| SECONDARY CURRENT | 5A |
| MOUNTING | BUSBAR |
| ACCURACY CLASS | CLASS 0.5 |
| VA RATING | 10VA |
| PRODUCT WARRANTY | 12 MONTHS |
| Lead Time | 2-4 WORKING DAYS |
