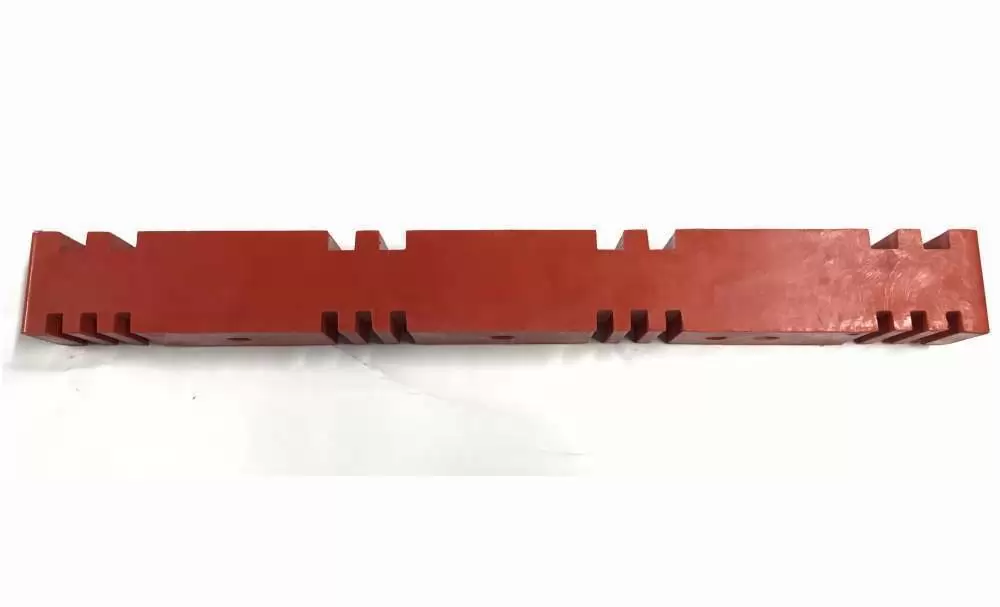

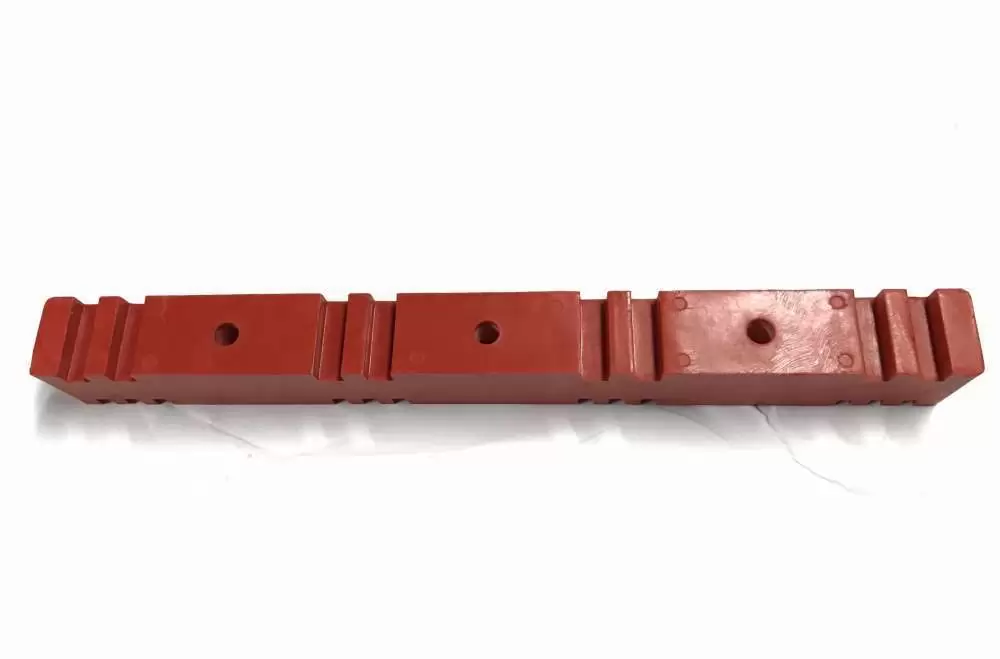

POWERMAT FOUR POLE 4P 2 RUN BUSBAR SUPPORT DMC RED 32PNF-307/211
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
MATERIAL : DMC
TYPE : 4P 2RUN
MOUNTING : M10
SUPPORT LENGTH : 370mm
HS Code : 8536 9099
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS
Related Products
| Product or component type | : Busbar insulator |
| certificate | : CE |
| Material | : DMC |
| Mounting | : M10 |
| Color | : IVORY |
| Warranty | : 12 months |

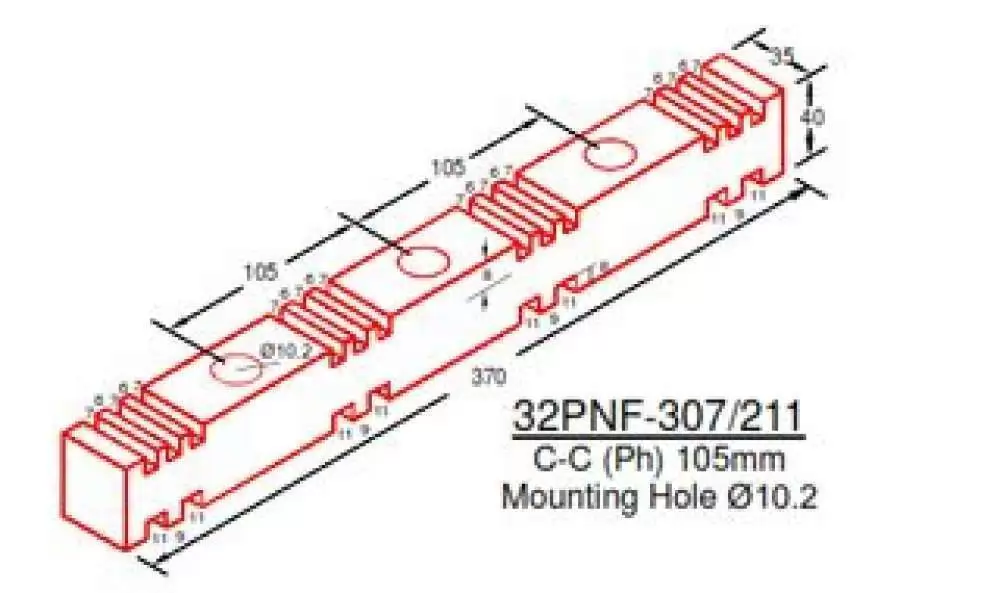

- Material : DMC (Dough Moulding Compound)
UL File No. QEUY2.E249670 (Halogen Free) - Insert : Brass / Steel (Zinc Passivated)
- All Dimensions are in MM
- Sd - Depth of Slot
- Mounting Hole Ø10.2 mm
- All Insulators are
certified - For technical details of Busbar support & Insulator, please refer POWERMAT TECHNICAL NOTES - 01/15.
- For checking the suitability of a support & insulator for a fault current, please ask for POWERMAT FAULT LEVEL CALCUL ATOR Software.
Specifications
| Brand | POWERMAT |
| Model Number | POWERMAT DMC 32PNF-307/211 RED |
| MATERIAL | DMC |
| TYPE | 4P 2RUN |
| MOUNTING | M10 |
| SUPPORT LENGTH | 370mm |
| Lead Time | 2-4 WORKING DAYS |
| Warranty | 1 year warranty |
