Perry Electric Photocell lighting Control 1IC 7245
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : PHOTO-CELL CONTROLLER
MAIN POWER SUPPLY : 230 V / 50 - 60Hz
IP RATING : IP65
Part No. EAN : 1IC 7245
MAXIMUM LOAD : 16A
HS Code :
Lead Time : 5-7 Days
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD PART NUMBER LM1360
ZIEGLER, DIGITAL MULTIFUNCTION METER, 3 PHASE, CLASS 0.2s, I...AED 425.00
Prtty 1IC 7245

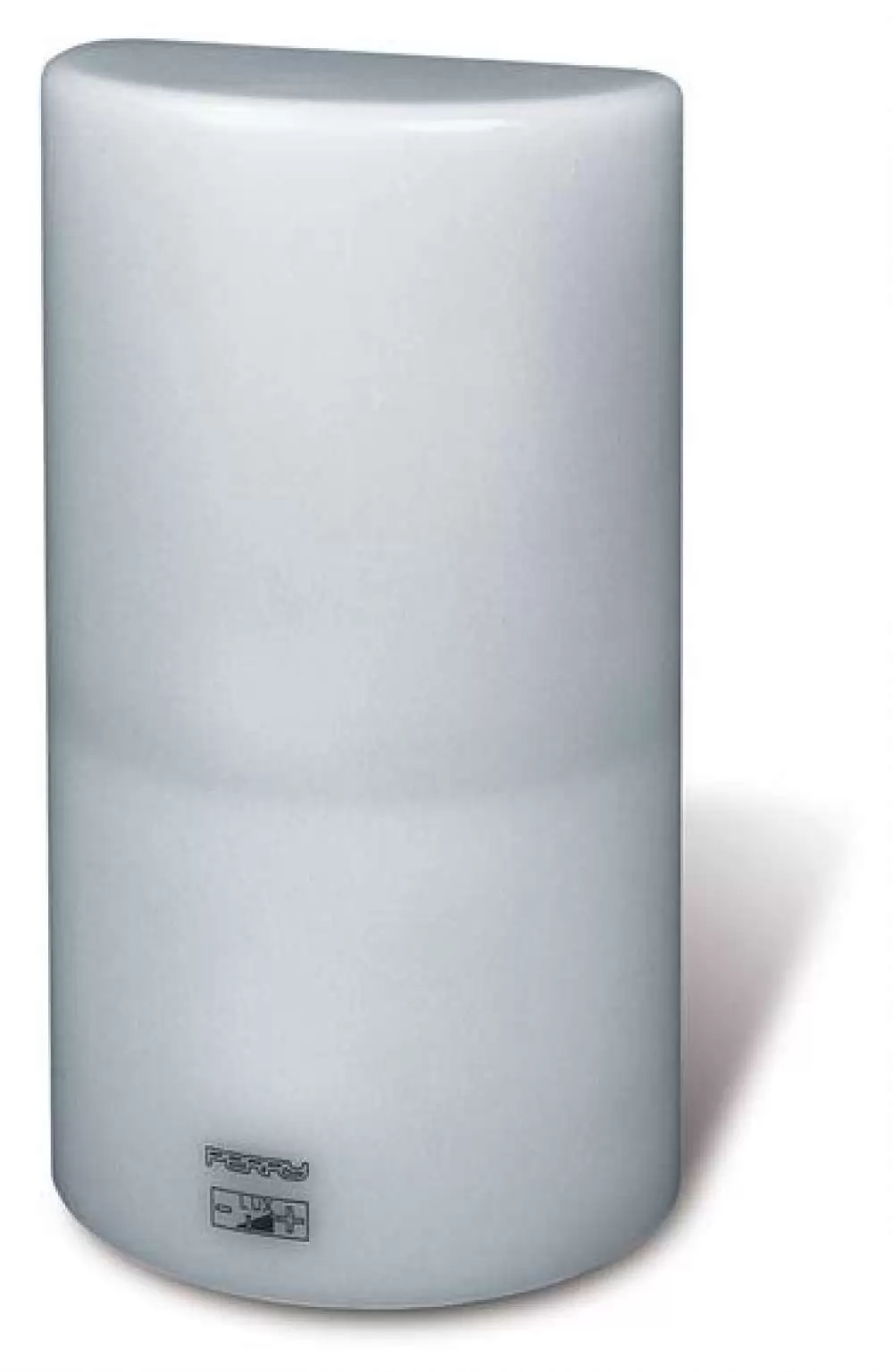

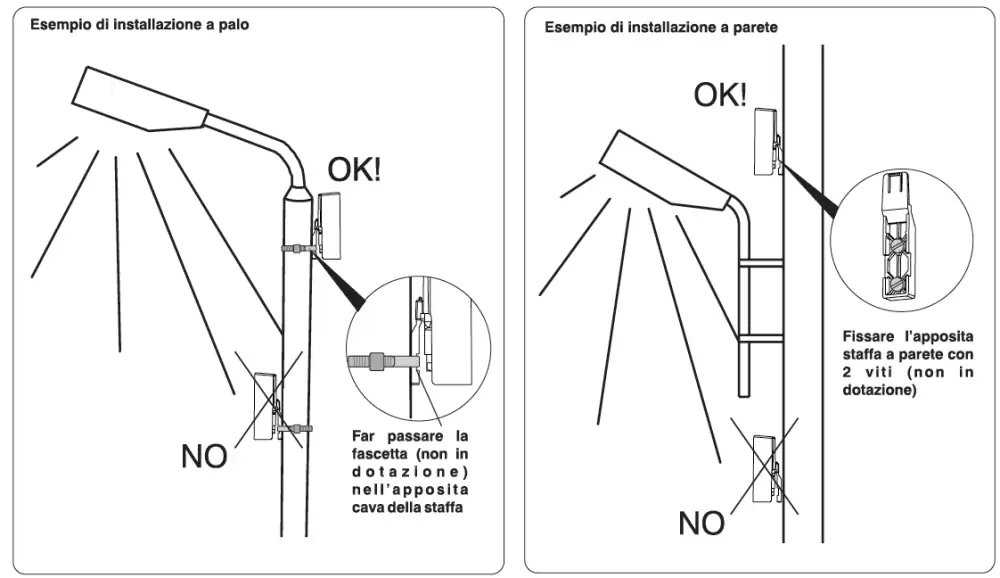

Photocell lighting control switch model “FEBO” for wall-mounting and/or pole installation
The factory 10 LUX calibration prevents difficult interventions by the installer
TECHNICAL SPECIFICATIONS
- Power supply 230V a.c. 50 / 60Hz
- Outdoor installation

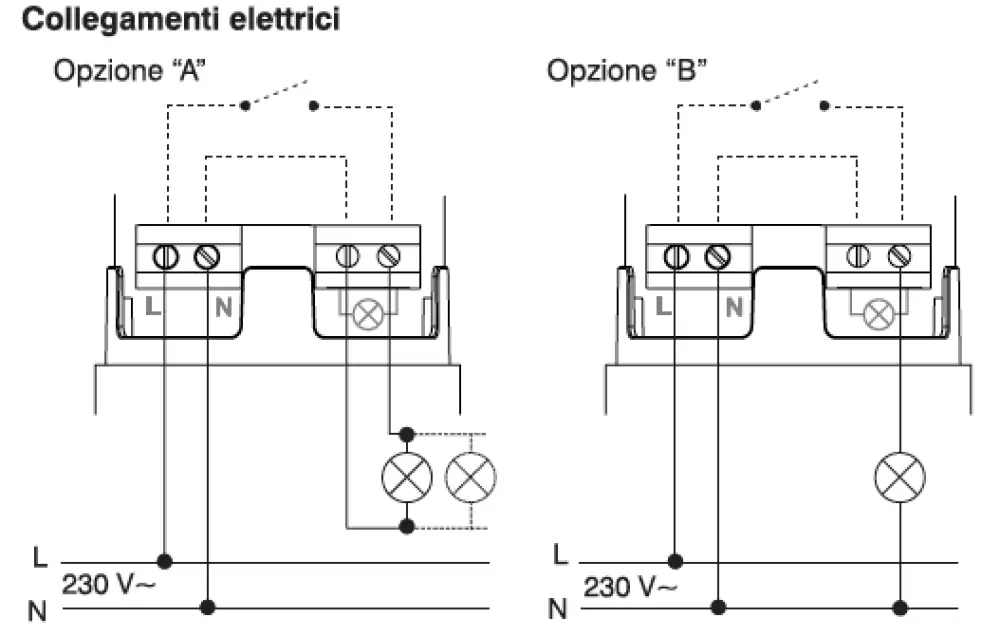

- Output 1 polarized NO contact: 16 (2) A/250Va.c.
- Connection with cables up to 2.5 mm2
- Wiring with shielded cable diameter 7-11 mm
- Pre-calibrated at the factory at 10 Lux ± 20%
- Intervention threshold adjustment trimmer, 2 - 200 Lux
- Threshold signalling LED
- Anti-UV opaline housing
- Protection degree IP 65

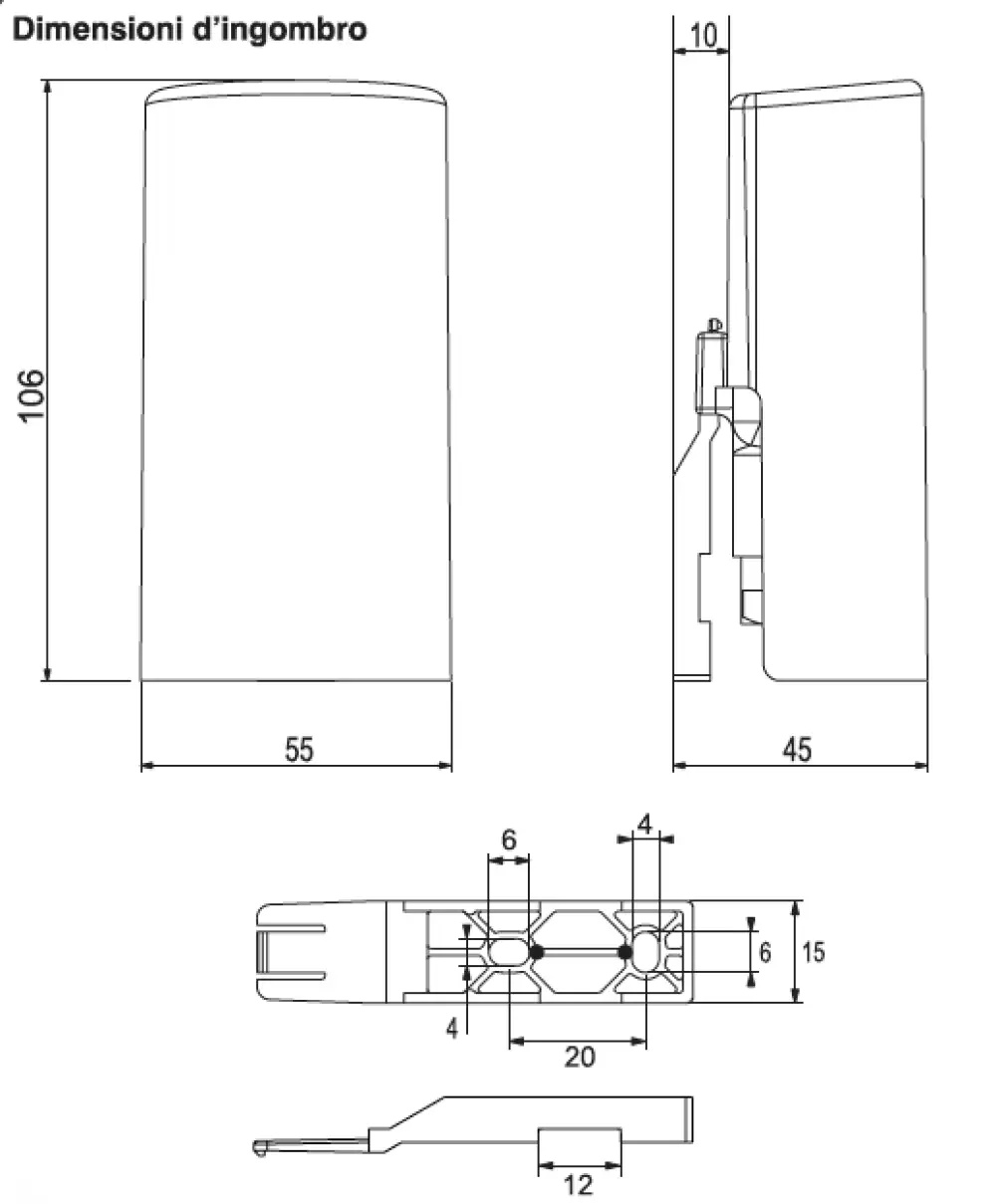

- Dimensions (L x W x H) 55 x 45 x 106 mm
Specifications
| Brand | PERRY ELECTRIC |
| Model Number | Perry Electric 1IC 7245 |
| SENSOR TYPE | PHOTO-CELL CONTROLLER |
| MAIN POWER SUPPLY | 230 V / 50 - 60Hz |
| IP RATING | IP65 |
| Part No. EAN | 1IC 7245 |
| MAXIMUM LOAD | 16A |
| Lead Time | 5-7 Days |
| Warranty | 1 year warranty |
