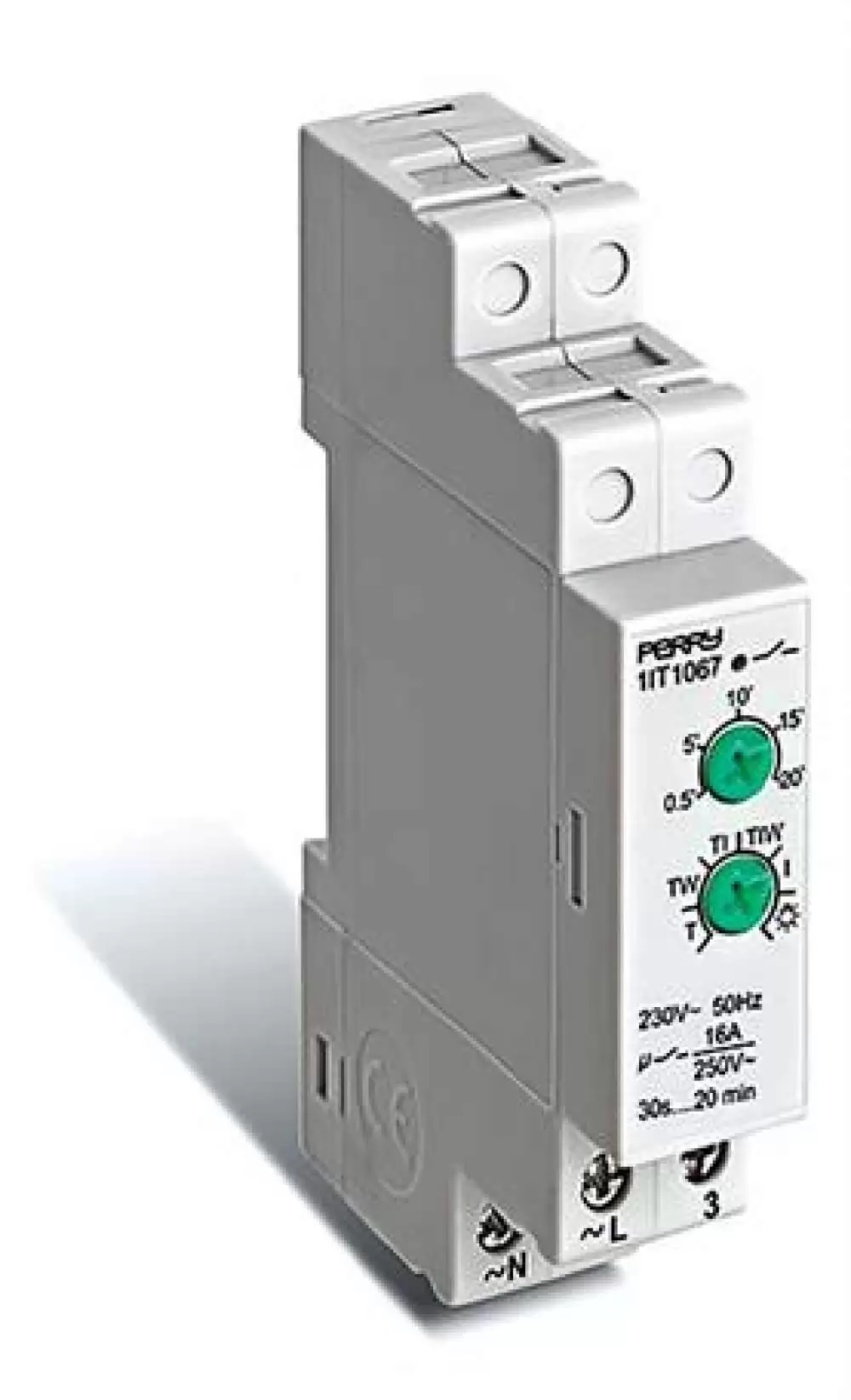

Perry Electric - Multifunction staircase timer 1 DIN 1IT 1067
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
COIL VOLTAGE : 230 VAC
TIME RANGE : 24HRS TIMER
MOUNTING : DIN RAIL
SUPPLY VOLTAGE : 230 VAC
IP RATING : IP20
OPERATING TEMPERATURE : -10°C to 65°C
HS Code :
Lead Time : 5-7 Days
VIEW MORE PRODUCT DETAILS
Related Products
Perry Electric 1IT 1067
TECHNICAL SPECIFICATIONS
- Power supply 230V a.c. +/- 10%, 50 Hz
- Type of output relay with NO single-pole polarized
- contact 16A / 250V a.c.
- Time adjustment: from 30 seconds to 20 minutes

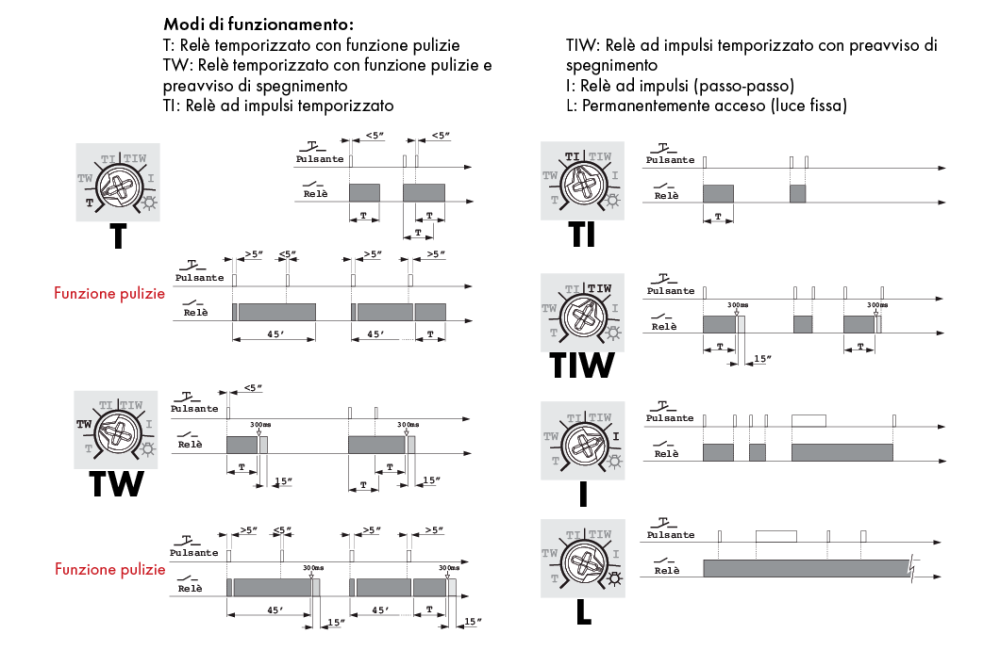

- Switch off warning in the TW and TWI operation modes
- Ability to activate stair cleaning function in the T and
- TW operation modes
- Maximum wire section at terminals: 1 mm² ÷ 6 mm²
- Protection degree: IP 20
- Operating temperature limits of module: - 10 °C ÷ +55 °C
- Storage temperature limits: - 20 °C ÷ +65 °C
- Type of installation: DIN rail
- Maximum current consumption of illuminated
- pushbuttons 150mA with overload protection
- CE reference standards: LVD/EMC EN60669-2-3
- EN60669-2-1

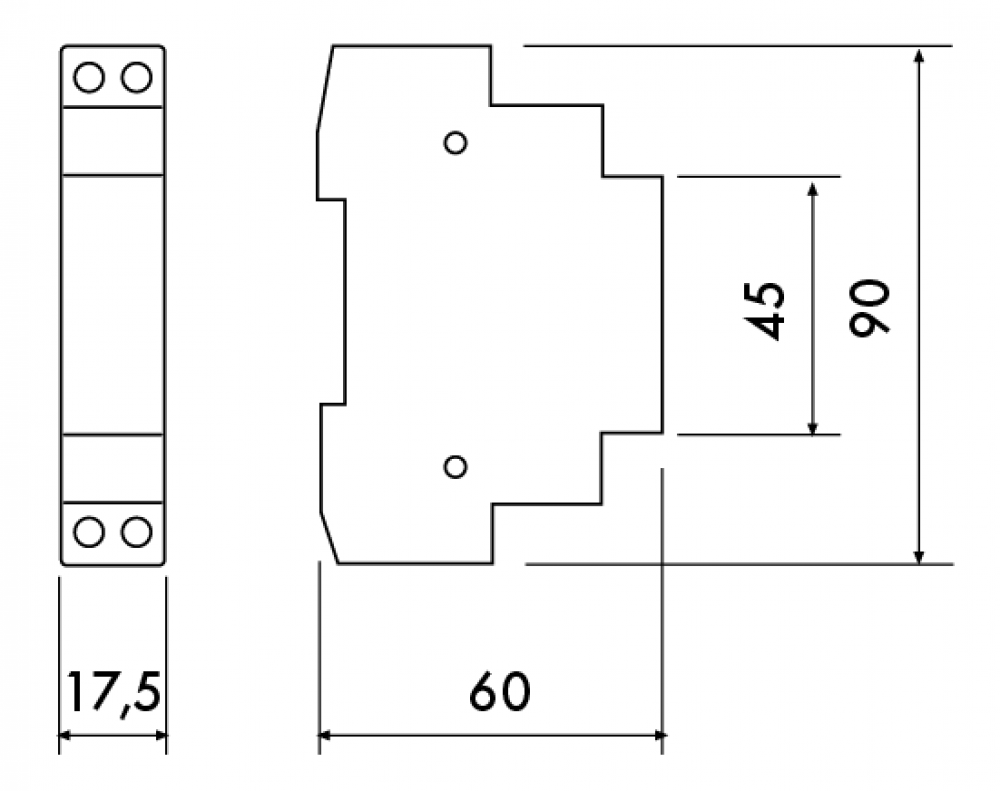

- Dimensions (L x W x H): 17,5 x 60 x 90 mm
Specifications
| Brand | PERRY ELECTRIC |
| Model Number | Perry Electric 1IT 1067 |
| COIL VOLTAGE | 230 VAC |
| TIME RANGE | 24HRS TIMER |
| MOUNTING | DIN RAIL |
| SUPPLY VOLTAGE | 230 VAC |
| IP RATING | IP20 |
| OPERATING TEMPERATURE | -10°C to 65°C |
| MAXIMUM LOAD | 16A |
| Lead Time | 5-7 Days |
| Warranty | 1 year warranty |
