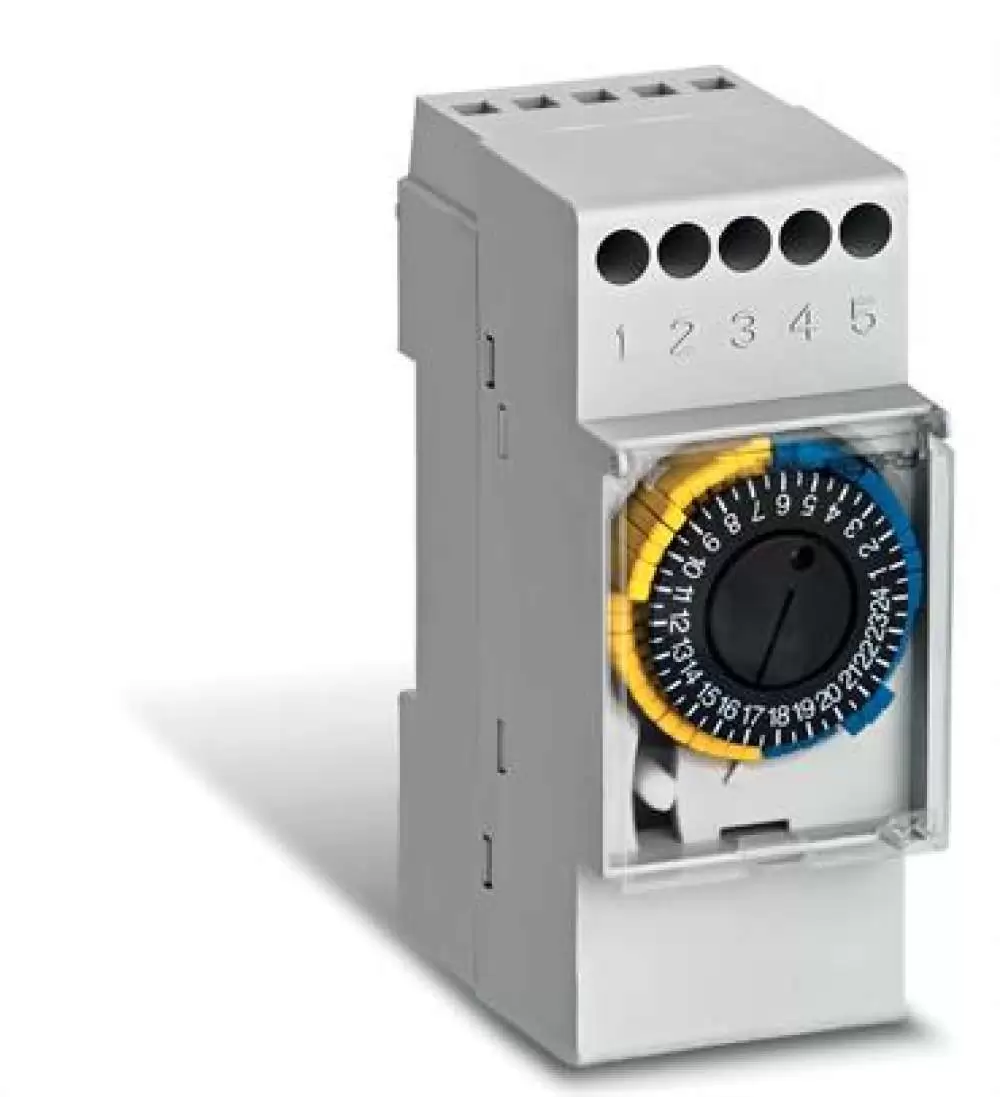

Perry Electric - 24 Hours Timer Switch without charge reserve 2 Module 1IO 0021
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
COIL VOLTAGE : 230 VAC
TIME RANGE : 24HRS TIMER
MOUNTING : DIN RAIL
SUPPLY VOLTAGE : 230 VAC
IP RATING : IP20
OPERATING TEMPERATURE : -10°C to 50°C
HS Code :
Lead Time : 5-7 Days
VIEW MORE PRODUCT DETAILS
Related Products
Perry Electric 1IO 0021
Daily time switch with tappets without charge reserve - 2 DIN
TECHNICAL SPECIFICATIONS
- Power supply voltage 230V a.c. 50 - 60Hz
- Contact rated data 16 (2) A / 250V a.c.
- Max program number (ON-OFF) 48 - 96 (art. 0170 / 0171)
- ON - OFF minimum connection time 30 minutes (daily) 15’ (item 0170 - 0171)
- approx. 3.5 hours (weekly)
- Displays mechanical tappets ring
- Max commutable power 3500 VA (for individual contact)
- Max cross-section of wires to terminals 2.5 mm2
- Protection degree (IP) IP 20 - IP 30 (with terminal covers)
- IP 40 (on rear of switchboard)
- Type of output terminals with captive screw
- Insulation class II
- Charge reserve approx 150 h max (max 100 h mod. 0171)
- Type of reserve NiCd rechargeable battery
- Time tolerance + - 1 sec/day
- Operating temperature limits -10°C / +50°C
- Storing temperature -10°C / +50°C
- Type of installation DIN rail / wall-mounted / on rear of switchboard
- Housing thermoplastic - grey RAL 7035
- Type of use civil / tertiary / industrial
- Controls mechanical tappets ring selector switch: fixed ON / timer position
- Clock setting accuracy mechanical with reference index
- Programming mechanical key ring

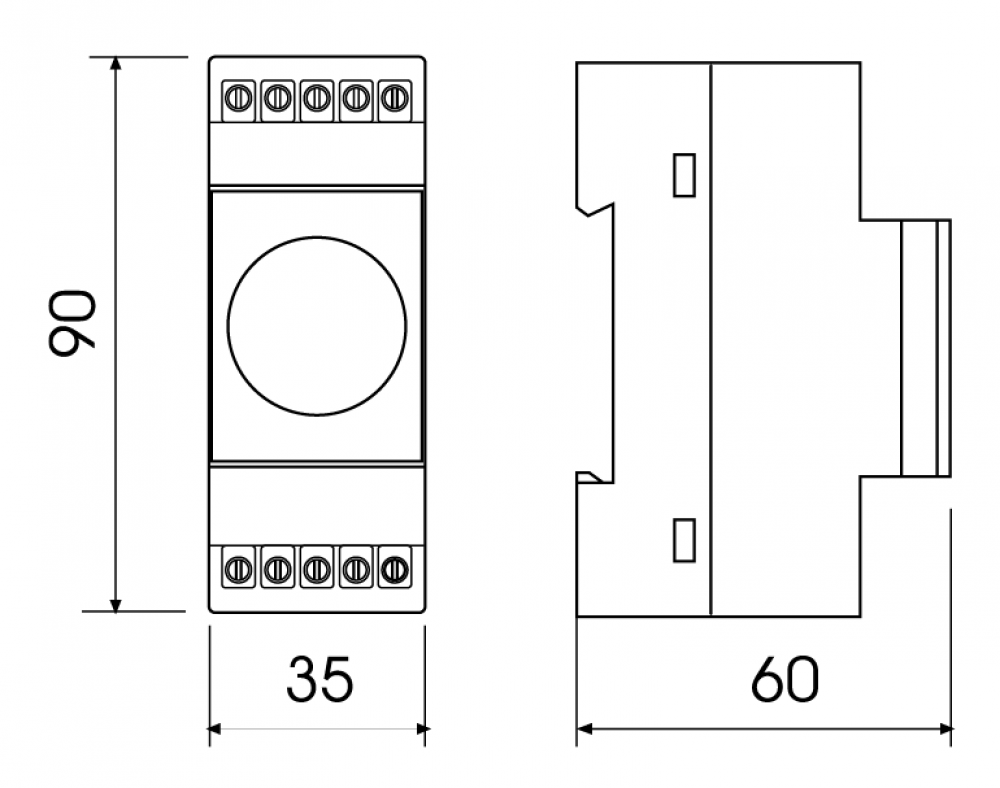

- Dimensions (L x W x H) mm 1DIN 17.5 x 60 x 128 - 2DIN 35 x 60 x 116
- 4DIN 70 x 60 x 116
Specifications
| Brand | PERRY ELECTRIC |
| Model Number | Perry Electric 1IO 0021 |
| COIL VOLTAGE | 230 VAC |
| TIME RANGE | 24HRS TIMER |
| MOUNTING | DIN RAIL |
| SUPPLY VOLTAGE | 230 VAC |
| IP RATING | IP20 |
| OPERATING TEMPERATURE | -10°C to 50°C |
| MAXIMUM LOAD | 16A |
| Lead Time | 5-7 Days |
| Warranty | 1 year warranty |
