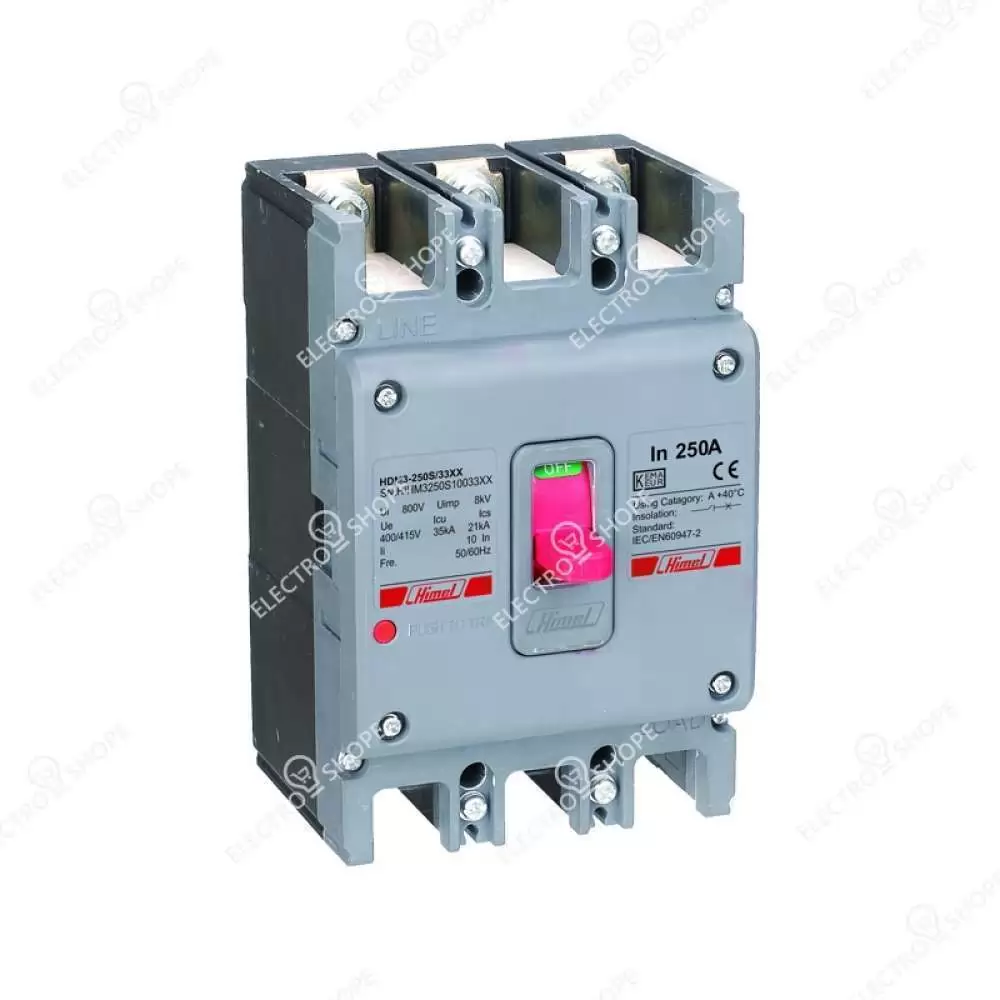

HIMEL 3 SERIES MCCB 200A TP 35kA HDM3250S20033XXT

HDM3 Molded Case Circuit Breaker

Product Features

Standard
IEC 60947-2

Pollution Degree
HDM3 products operate in the environment (industrial environment) with pollution class 3 defined in IEC/EN 60947-1 and IEC/EN 60947-2 standards.

Wet and heat resistance
Dry and cold
Dry and heat
Wet and heat

Environment temperature
HDM3 series can work for a long time under normal environment and operating temperature between -5°C and 50°C .

Altitude
Altitude at normal installation site does not exceed 2000m.
If the altitude exceeds 2000m, the changes in the dielectric strength and the air temperature drop must be considered. Refer to the altitude derating factor table or contact us.

Humidity
The following conditions must be met during normal operation:
The relative humidity of atmosphere does not exceed 50% if the ambient air temperature is +40°C .The product can be used at a high relative humidity if the temperature is low.
The monthly average relative humidity at the wettest month is 90%.
The impact of the condensation generated on the product surface on the product property shall be considered.

Reliable contact indication with isolating function
HDM3 moulded case circuit breaker complies with the isolation defined in IEC standard 60947-2
The isolated location corresponds to O (OFF)
The operating handle can indicate “OFF" only when the contact is really open
The rotation handle or electric operating mechanism will not change the reliability of the contact indication system.Through the test, the isolating function must guarantee:
Mechanical reliability of contact indication system
No leakage current
There is a certain overvoltage resistance capacity between the input and output terminals.

Protection class
IP protection class of circuit breaker body: IP20 · Circuit breaker installed in the switch cabinet:
circuit breaker with a toggle handle IP40
circuit breaker with an electric operating mechanism IP40

Note : Please refer technical data sheet for more information about the product.
