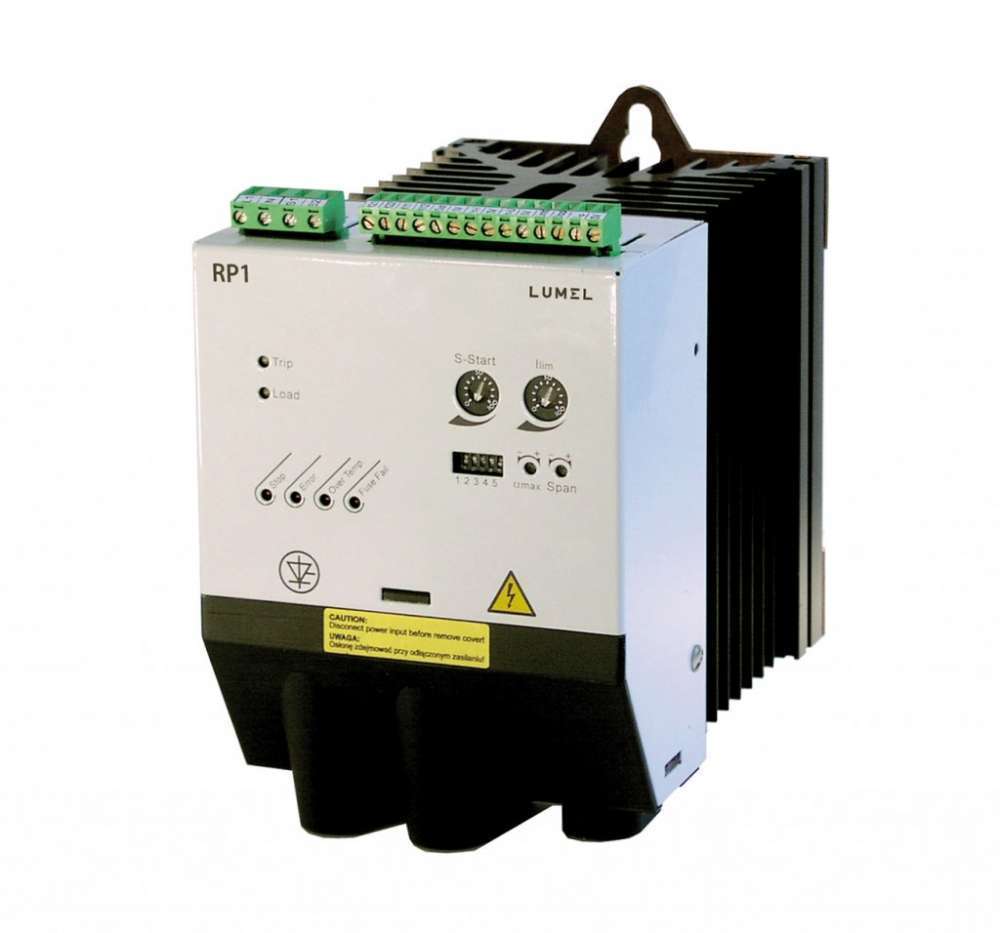

LUMEL Single Phase Power Controller 70A RP1-3-2-8

Now: AED 2,110.00 (Inclusive of VAT)

Qty:

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

CURRENT RANGE : 70A
OPERATING TEMPERATURE : ambient: 0 .. 40C
RELATIVE HUMIDITY : < 90 %
POLLUTION GRADE : 2
SUPPLY VOLTAGE : 195 .. 230 .. 253 V a.c
IP RATING : IP20
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS

2 year warranty
100% Guaranteed Warranty

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

LUMEL Single Phase Power Controller 70A RP1-3-2-8

The RP1 power controller is destined for automatic temperature control systems in electrothermal devices.

It can be applied in electric circuits with resistance or inductive loads and resistance loads with a high temperature resistance coefficient.

The RP1 power controller is a contactless power energy electronic device which includes a thyristor connector and electronic gate trigger system (GTS).
This power controller allows to change the power delivered from the a.c. voltage source to the electric energy load in the function of the analog or pulse driving signal value.
The system of two or three power controllers can be applied in three-phase actuators.
Kind of control

  • On/Off control,
  • pulse control: fast cycle, slow cycle
  • phase control

Maximal current output

  • 25A, 40A, 70A, 125A

Additional functions

  • load current limitation,
  • trigger deceleration of softstart type,
  • control of the initial trigger angle value,
  • control of the input line amplification,
  • trigger stoppage by an external signal,
  • supervising and signalling of current in the load circuit,
  • output U = f(Io),
  • supervising of the radiator temperature,
  • overload signalling,
  • signalling of the fuse damage,
  • output of Master/Slave type,
  • relay outputs.

External dimensions:135 x 231 x 199mm

Specifications

BrandLUMEL
Model NumberLUMEL RP1-3-2-8
CURRENT RANGE 70A
OPERATING TEMPERATURE ambient: 0 .. 40C
RELATIVE HUMIDITY < 90 %
POLLUTION GRADE 2
SUPPLY VOLTAGE 195 .. 230 .. 253 V a.c
IP RATING IP20
Lead Time 3 - 4 Weeks
Weight 4.50 kg
Dimensions (W, H, L ) in cm 19.9 x 13.5 x 20.1
Warranty 2 year warranty
