LUMEL Temperature Controller PID, 4 Output, Programmable/RS-485 Modbus - RE82

Now: AED 1,060.00 (Inclusive of VAT)

Qty:

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

SUPPLY VOLTAGE : 85 .. 253 V a.c./ d.c. , 20 .. 40 V a.c./d.c.
SIZE : 48 x 96 x 93
TEMPERATURE RANGE : -999...9999
DISPLAY TYPE : LED
IP RATING : IP20, IP65
MOUNTING TYPE : PANEL MOUNT
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS

2 year warranty
100% Guaranteed Warranty

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

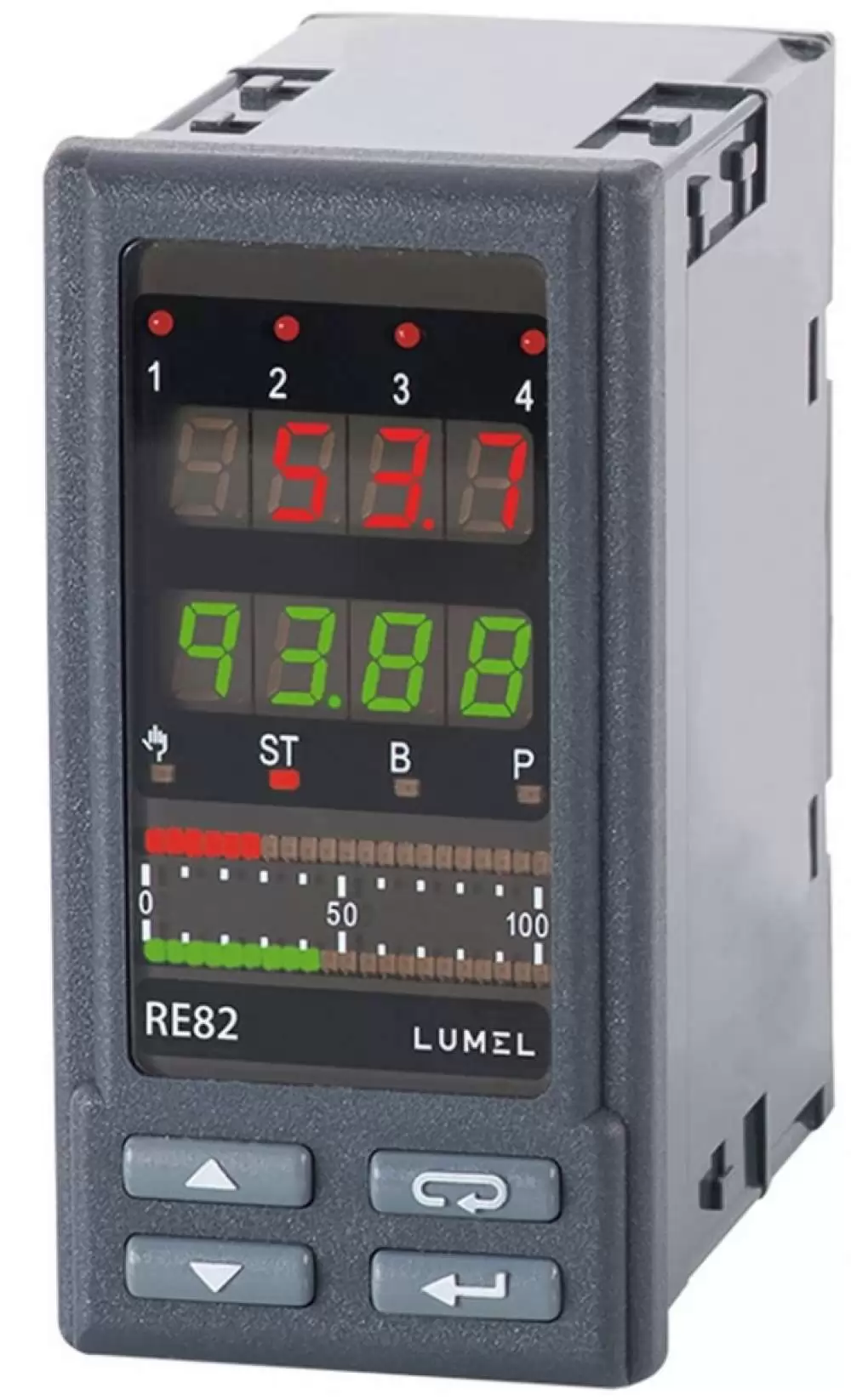

LUMEL Temperature Controller PID, 4 Output, Programmable/RS-485 Modbus -  RE82

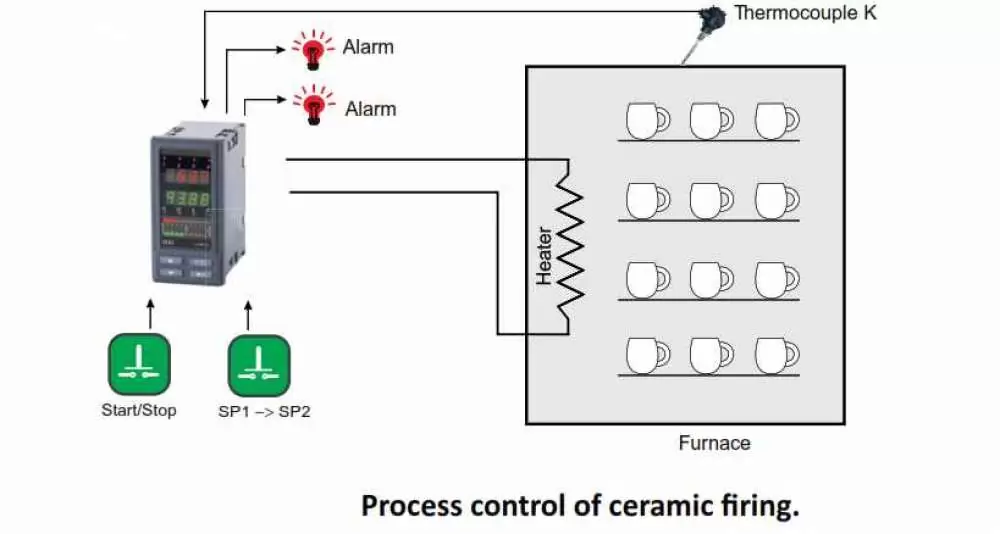

The RE82 controller is destined for the temperature control in plastics, food, dehydration industries and everywhere when the stabilization of temperature changes is necessary.

  • Universal measuring input (thermocouples, resistance thermometers or analog signals),
  • Input: logic and auxiliary analog input,
  • Output: relay, transistor of OC type, continuous or binary for SSR control,
  • Control algorithm:
    • On/off with histeresis,
    • 15 programs with 15 segments in each,
    • valve control (step-by-step control),
  • Automatic selection of PID parameters (acc. to the new innovative SMART PID technology),
    • self-acting and precise selection of PID settings,
    • effective  control algorithm,
    • easy and simple solution for technical service,
    • lack of overshoots or small overshoots for a large range of objects in the automatic process of PID parameter selection.
  • Soft start function,
  • Timer function,
  • Alarm latch function (LATCH) applied in safety controllers,
  • Measurement of heater current and heater burning control or short-circuit of the control element (e.g. SSR),
  • IP65 protection grade,
  • Password protection,
  • External dimensions: 48 x 96 x 93 mm.


  • Specifications

    BrandLUMEL
    Model NumberLUMEL RE82
    SUPPLY VOLTAGE 85 .. 253 V a.c./ d.c. , 20 .. 40 V a.c./d.c.
    SIZE 48 x 96 x 93
    TEMPERATURE RANGE -999...9999
    DISPLAY TYPE LED
    IP RATING IP20, IP65
    MOUNTING TYPE PANEL MOUNT
    Lead Time 3 - 4 Weeks
    Warranty 2 year warranty
